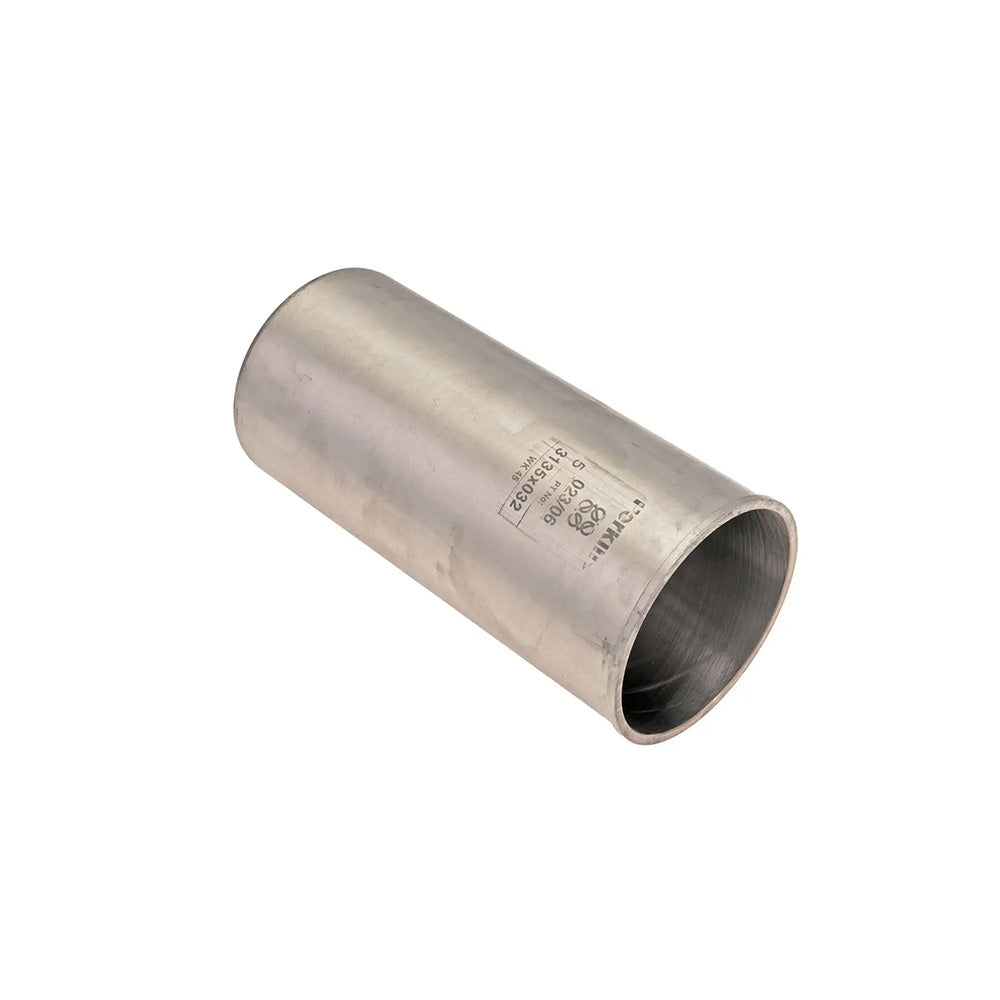

A-3135X032-AI Liner, Cylinder

One New Aftermarket Replacement Cylinder Liner for Perkins 4.236 Series Engines

This slip fit cylinder liner is a direct replacement for the Perkins OEM part 3135X032, designed for the Perkins 4.236 engine family. It features a flanged design with no flame ring (non-flame ring / flat flange) and an outer diameter of 4.102 inches, supplied pre-finished and ready to install. Compatible with both gas and diesel variants of the 4.236 engine, this liner is used across a wide range of Massey Ferguson tractors and other equipment powered by the Perkins A4.236, A4.236T, and AG4.236 engines.

Specifications

• Type: Slip Fit Cylinder Liner
• Flange: -0.150" flange, no flame ring (completely flat flange)
• Outer Diameter: 4.102"
• Bore Diameter: 98.47 mm (3.877") approximately
• Finish: Pre-finished

Compatible Models

Perkins Engines: A4.236 (SN: U106655N and later), A4.236T (SN: U106655N and later), AG4.236 (SN: U106655N and later)

Massey Ferguson Tractors: 174-4, 362, 365, 374S, 375, 384S, 390, 390T, 393, 398, 3050, 3065, 3070

Massey Ferguson Backhoe Loaders: 390

Other Compatible Equipment (via Perkins 4.236 engine): Allis Chalmers, Caterpillar, New Holland, Landini, JLG, and other equipment fitted with Perkins 4.236 series engines - verify fitment before ordering.

Replaces Part Number(s):

3135X032, A-3135X032-AI, 3637032M1, 3637332M1, 3637332V1

New aftermarket replacement part - not remanufactured, not used.
