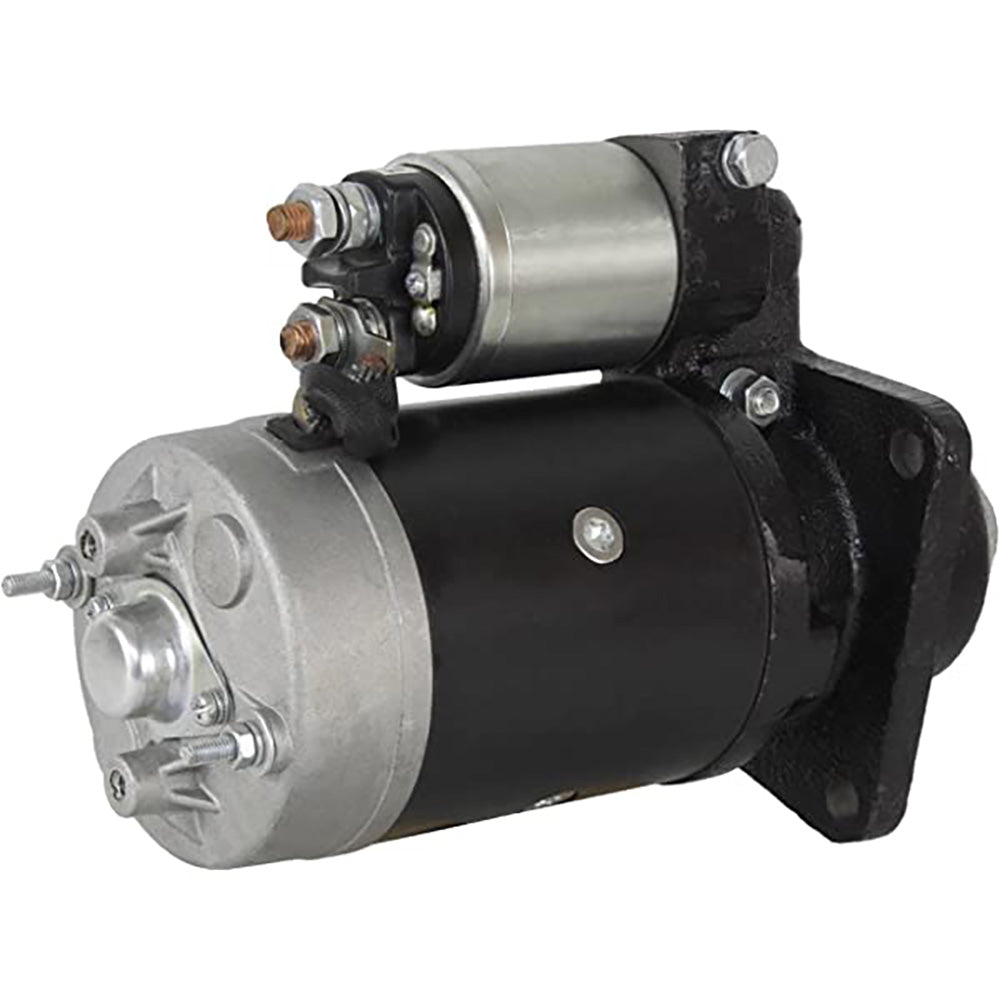

A-30-3043509-AI Starter, MM/DD

A-30-3043509-AI Starter, MM/DD

£256.00 GBP
£256.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Starter (MM/DD Type) for Fiat, Long, Fits Ford/New Holland, Oliver, White, Fits Allis Chalmers, Fits Case/International Harvester, and Goldoni Tractors

This 12-volt, direct-drive (DD/MM) replacement starter motor fits a wide range of agricultural tractors from Fiat, Long, Fits Ford/New Holland, Oliver, White, Fits Allis Chalmers, Fits Case/IH, and Goldoni. It is a Fits Bosch-type replacement using a clockwise-rotating, 9-tooth drive. Important: This starter is not compatible with 2-cylinder engine models. Uses TX13149 solenoid.

Specifications

  • Voltage: 12V
  • Kilowatts: 3.0 KW
  • Teeth: 9
  • Rotation: Clockwise (CW)
  • Type: MM/DD (Direct Drive)
  • Length (bolt housing to end): 10-3/4"
  • Full Length: 13-1/2"

Compatible Models

Note: Not for 2-cylinder engine models.

Long Tractors: 260, 350, 360, 445, 453, 460, 483, 510, 530, 532, 533, 550, 553, 560, 610, 640, 700, 740, 2360, 2360 DTC, 2460, 2460 DTC, 2510, 2610, 2630, 3010S, 3435, 3830, 3935, 4010S, 4030, 4230, 4330V, 4430, 4430N, 4835, 5010S, 5040, 5530, 5635, 6530, 6635, 7530, 7635

Fiat Tractors: 260, 310, 340, 350, 360, 400, 445, 460, 500, 510, 530, 550, 600, 640, 700, 740, 850, 1033 II, 1010 II, 1045, 65-46, 65-46DT, 65-90, 65-90DT, 65-93, 65-93DT, 65-94, 65-94DT, 70-56, 70-56DT, 70-66, 70-66DT, 70-66LP, 70-66S, 70-66SDT, 70-66V, 70-76, 70-76DT, 70-76F, 70-76FDT, 70-76LP, 70-76LPDT, 70-76V, 70-88, 70-88DT, 70-90, 70-90DT, 72-85, 72-85M, 72-86LPDT, 72-93, 72-93DT, 72-94, 72-94DT, 80-66, 80-66DT, 80-66F, 80-66FDT, 80-76, 80-76DT, 80-76F, 80-88, 80-88DT, 80-90, 80-90DT, 82-93, 82-93DT, 82-94, 82-94DT, 85-90, 85-90DT, 88-93, 88-93DT, 88-94, 88-94DT, 90-90, 115-90, 130-90, 180-90, 180-90DT

Fits Ford/New Holland Tractors: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1095N, LB75, LB75CP, LB90, LB95, LB110, LB115.B, LM430, LM640, TL70, TL80, TL90, TL100, TN55, TN55D, TN55S, TN60A, TN60D, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TN95VA, TK75, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK100A, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D, TT55, TT60A, TT65, TT75, TT75A

Oliver/White Tractors: 1250A, 1255, 1265, 1270, 2-50, 2-60, 703

Fits Case/International Harvester: 633, 642, 643, 683, 703, 833

Goldoni Tractors: L65

Replaces Part Number(s):

TX12433, 30-3043509, 31-2904907, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, 63216825, 63216826, 63216827, MT71Z, MT68AA, MT68AB, MT68AC, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 2088728-7, 20887287, 82093256, 504059251, 504059251R, 500338952, 500338953, 500338953R, 5801441814, 5801441816, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 99999950, 4699705, 4702248, 4755109, 99449112, 99449113

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

70-66S, 70-66V, 260, 2460 DTC, 5635, LM640, TN70DA, TN65F, 740, TK76, LB75CP, 4030, JX1095N, 80-88, 4430N, 70-90DT, 7530, 80-66DT, TN60A, 85-90, 6530, 70-76V, TN55S, 65-94DT, TT65, JX1075C, 610, 703, 65-46DT, 72-86LPDT, 72-94, 70-88DT, 70-90, 2610, 500, 180-90, 530, TN80F, 70-76F, TK85, 72-93, 3435, 453, TN75SA, TT60A, TN75V, 72-93DT, JX70U, 80-66, TK75V, LB95, JX75, 4230, 65-93, TN95VA, 180-90DT, JX100U, 70-88, JX70, 70-76FDT, TD75D, 340, 80-76DT, TN55D, 72-85M, 850, 1255, 115-90, 550, 82-93, 85-90DT, TK100A, 70-76DT, TN65D, 643, TT75A, 80-76, 90-90, 70-66SDT, JX80U, 70-66, TD95D, 5530, JX90, LB90, TK75M, 2630, 80-66FDT, JX80, LB115.B, 70-76LP, TT75, TD60D, 445, 510, TN55, TN75FA, JX1070C, JX65, 72-94DT, 4010S, TD90D, 65-90DT, Electrical Starting Systems, JX60, 2360, TN70VA, TN75A, TN70, 1270, 82-93DT, 7635, 1265, TK75F, TN60D, 833, JX95, 2460, TN60SA, 1033 II, TN70D, 3830, TN65V, 70-76LPDT, 5040, JX85, TN75DA, 80-88DT, TN85FA, 88-93, LB110, 6635, TN95F, 5010S, TL70, 2360 DTC, 80-90DT, 82-94DT, 65-93DT, 65-90, TK85M, LM430, 533, 2-50, 350, TN65, JX1060C, 640, 4330V, TN70NA, TN75S, 70-66DT, 130-90, 4430, JX1075N, TK90A, 683, 1045, 65-94, TN60VA, 600, TK80A, TN70F, TN60DA, 88-94DT, 80-66F, TK75MA, LB75, 72-85, TN70S, 553, TD70D, TL100, 310, TN70A, 460, 360, 65-46, 532, TN75, 3935, 82-94, JX90U, 80-76F, TK75FA, TL90, TK90MA, TT55, TN75D, L65, TK75VA, 70-56, TN95FA, 700, 2-60, 3010S, TL80, 642, JX55, TN75VA, TN90F, 1250A, 70-66LP, TD80D, TN70SA, 70-56DT, 70-76, 88-93DT, 4835, TN65S, TK80MA, TN75F, 88-94, 483, JX1070N, 1010 II, 80-90

Additional Information:

Length from bolt housing to end: 10-3/4" Full Length: 13-1/2" Rotation: CW Teeth: 9 Volts: 12 KW: 3.0 Type: MM/DD

Reference Numbers:

30-3043509, 31-2904907, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 500338953R, 504059251R, 5801441814, 5801441816, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 5111319, 5119319, 4988513, 4737755, 4703751, 4807375, 4832942, 99999950, 4699705, 4702248, 4755109, 500338952, 5801441814, 99449112, 99449113, 17184, 2088728-7, 20887287, 82093256, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 0001367014, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028, 17184, 26394, 26394A/D, 27430, 27430A, 27440, 27440A, S0847, S4537, SR914X, 63217121, MT71Z, MT68AA, MT68AB, MT68AC, 63216825, 63216826, 63216827, 11.130.127, 11.130.198, 11.130.409, 11.130.510, 11.130.618, 11.139.361, AZJ3115, AZJ3145, AZJ3195, AZJ3516, AZJ3534, AZJ3907, 9-144-744, IS0409, IS1387, MS192, 504059251, 500338952, 500338953, 500338953R, 504059251R, 5801441814, 5801441816, TX12433, 0001367014, 0 001 367 014, 0 001 359 091, 0001359021, 0001359102, 0001367028
