A-284238M1-AI Expansion Valve (Block Type)
A-284238M1-AI Expansion Valve (Block Type)
Couldn't load pickup availability

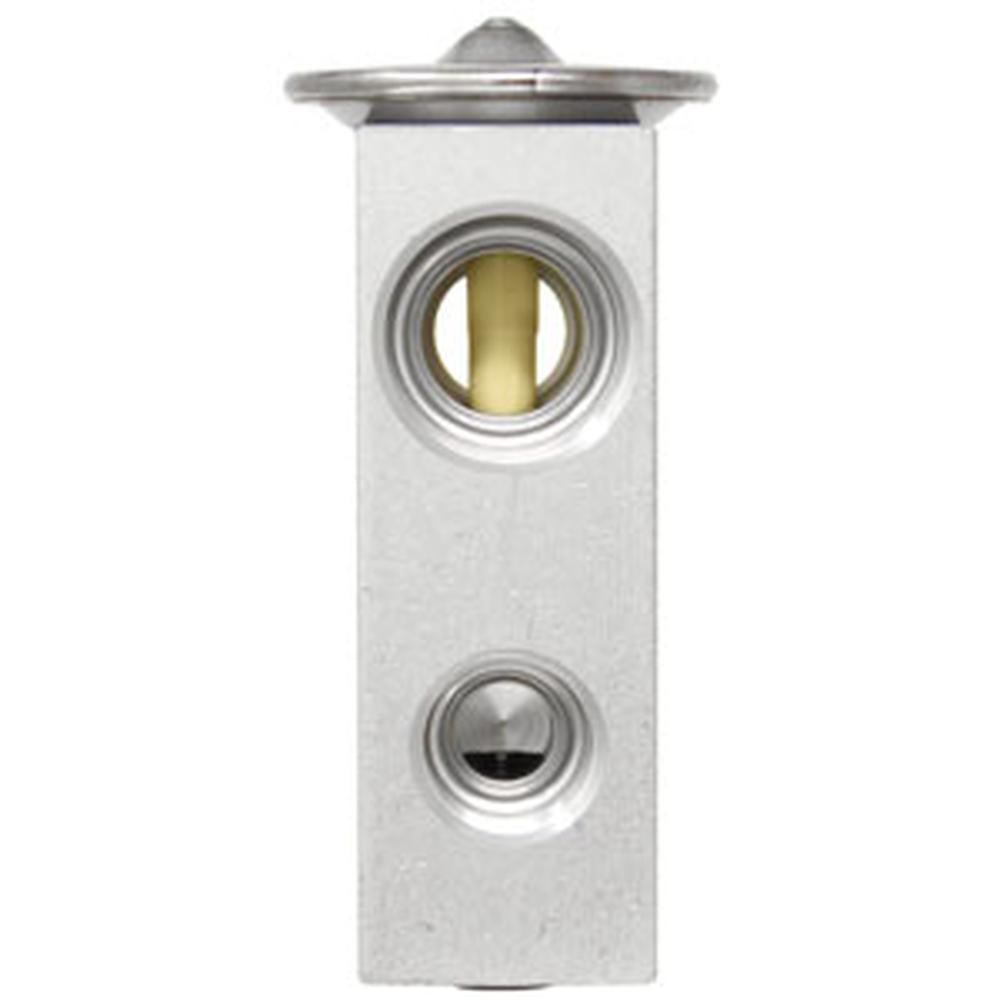

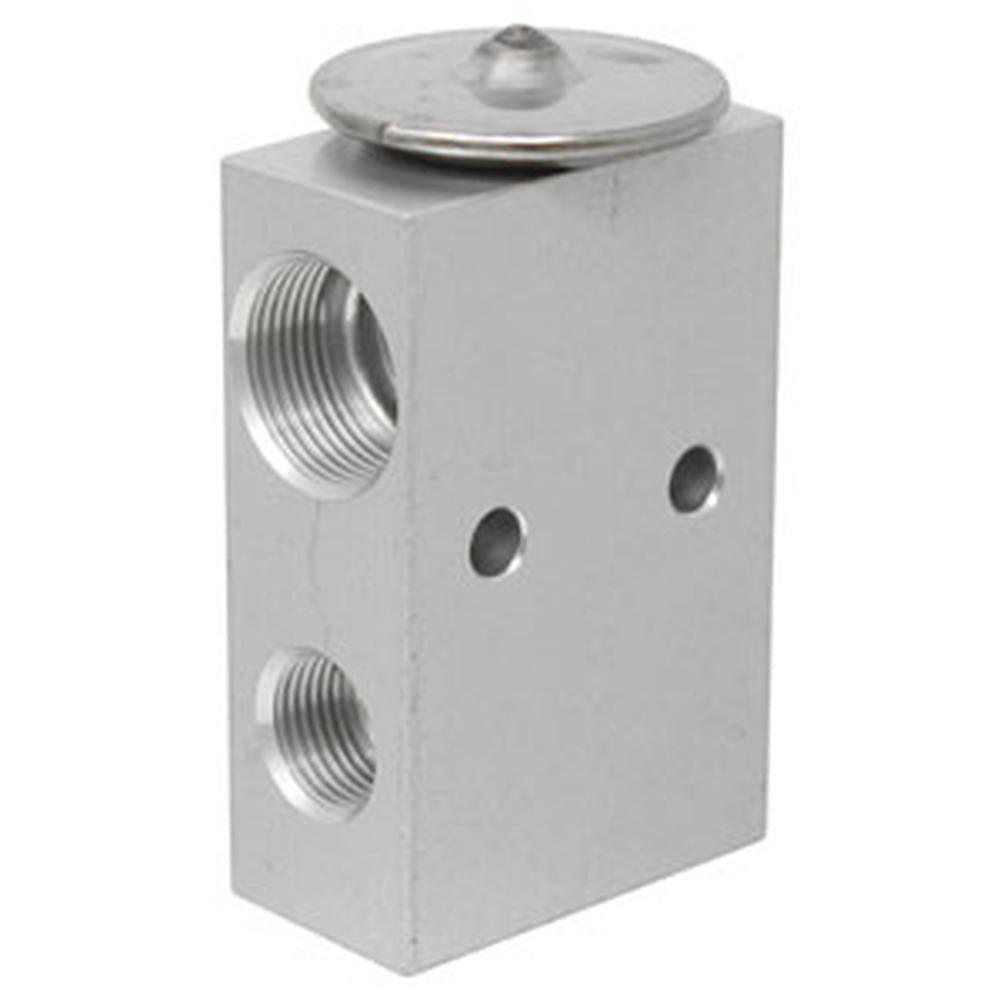

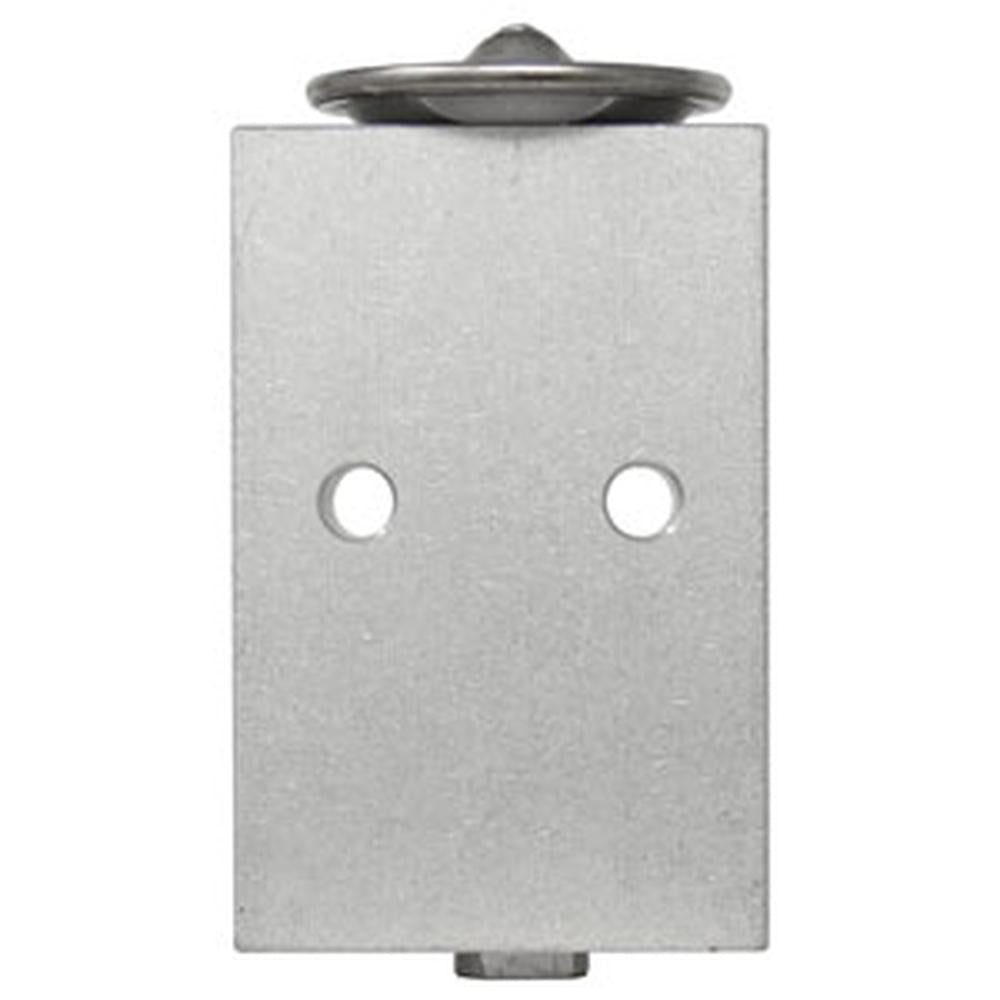

One New Aftermarket Replacement Expansion Valve (Block Type) for Hesston and Deutz Tractors
This block-type thermostatic expansion valve (TXV) regulates refrigerant flow through the cab air conditioning evaporator core, maintaining proper system pressure and cooling performance. It is a direct-fit replacement for the A/C systems found on Hesston and Deutz tractors and windrowers equipped with factory air conditioning.
Specifications
- Valve Type: Block (O-Ring)
- Liquid Inlet: #6 O-Ring (3/8")
- Liquid Outlet to Evaporator: #8 O-Ring (1/2")
- Suction Inlet from Evaporator: #8 O-Ring (1/2")
- Suction Outlet to Compressor: #10 O-Ring (5/8")
- Refrigerant: R134A
- Rating: 1.5 - 2 Ton
Compatible Models
Hesston Windrowers: 8200, 8250, 8250S, 8450, 8550, 8550S, 9230, 9240, 9260, 9265
Deutz (Deutz-Fits Allis) Tractors: DX8.30, DX90, DX110, DX120, DX140, DX160, 6265, 6275, 7085, 7110, 7120, 7145
Replaces Part Number(s):
4322165, 284238M1
Aftermarket Interchange Numbers
ACK90-0080, 118321C1, 1075118M91, 772002M91, 104867W1, 71307202, 71369764, 71504287, 72162195, 72274512, 72506807, AG713306, F1NN19849AA, 327.042.0, 30-3432211, 31669310, 316/69310, V31669310, 141/00832, 106-5121, ABPN83308011, 85820484, 700717164, 700737827, 9705763, 71373127, 6673534, 6675534, 6683910
New aftermarket replacement part - not remanufactured, not used.
