A-27H3253-AI CLUTCH DRIVEN PLATE
A-27H3253-AI CLUTCH DRIVEN PLATE
Couldn't load pickup availability

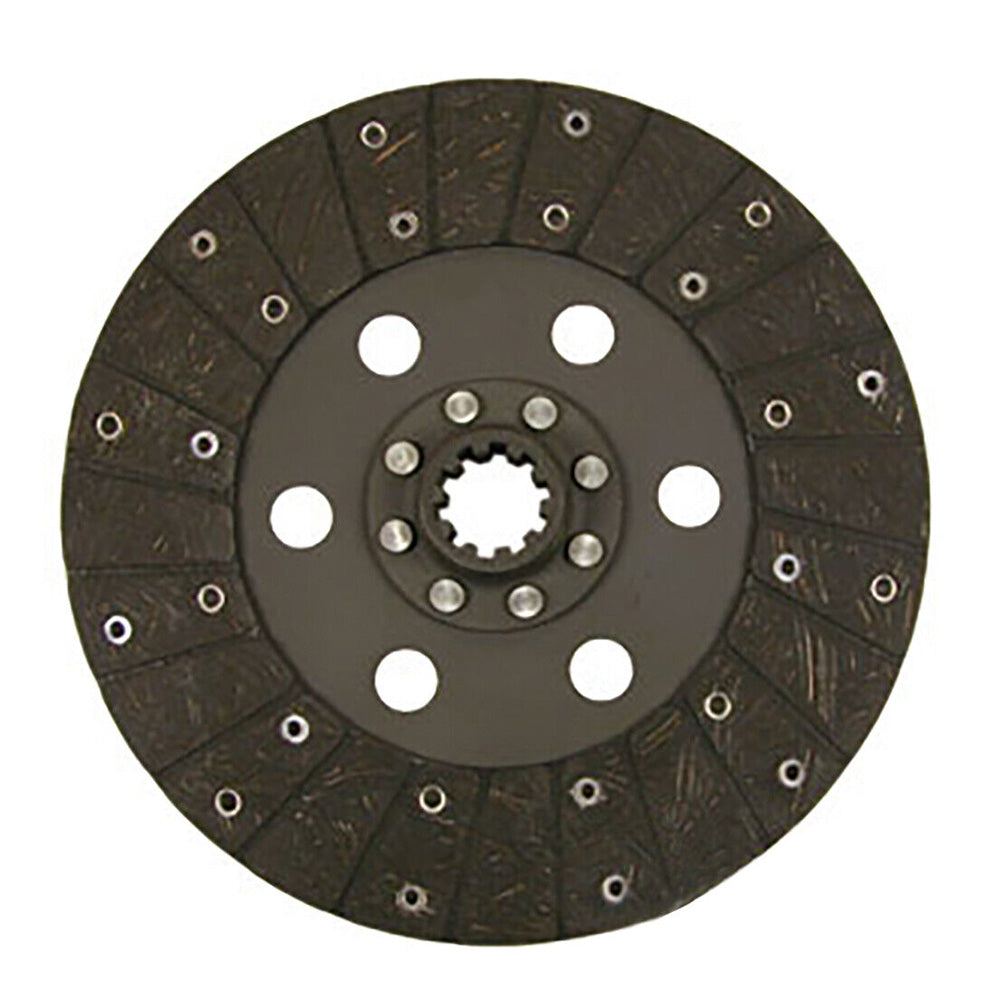

One New Aftermarket Replacement Clutch Driven Plate for Nuffield Tractors
This 11-inch single drive clutch driven plate is a direct replacement for the original clutch assembly used in Nuffield tractors. It fits all Nuffield tractors up to the Universal Four (4DM) through serial number 10387, and was also fitted as an optional replacement following the introduction of the dual clutch on later machines. The plate features 10 splines with a 1-3/8-inch spline diameter and is the correct friction disc for the single-clutch drivetrain system on these vintage British tractors.
Specifications
- Diameter: 11 inches (280 mm)
- Splines: 10
- Spline Diameter: 1-3/8 inch
- Type: Single drive clutch plate
Serial Number / Fitment Note
Fits Nuffield tractors up to Universal Four (4DM) serial number 10387. Also fitted as optional replacement after introduction of the dual clutch.
Compatible Models
Nuffield Early Series: M3, M4, MV3, PM4, DM4
Nuffield Universal Series: Universal Three (3DL), Universal Four (4DM)
Nuffield Numbered Series: 342, 460, 10/42, 10/60
Replaces Part Number(s):
27H3253, A-27H3253-AI
New aftermarket replacement part - not remanufactured, not used.
