A-19283X-P-AI Cup, Tapered Bearing
A-19283X-P-AI Cup, Tapered Bearing
Couldn't load pickup availability
One New Aftermarket Replacement Tapered Bearing Cup for Case/International Harvester and David Brown Tractors
This tapered roller bearing cup (outer ring) serves as the precision outer raceway for tapered roller bearing assemblies used in wheel hubs, axles, and other high-load rotating applications on Case/International Harvester (Case IH) and David Brown agricultural tractors. The cup pairs with a matching tapered roller bearing cone (inner ring assembly, sold separately) to support both radial and axial loads. It is typically mounted in opposing pairs on a shaft for even load distribution.
Specifications

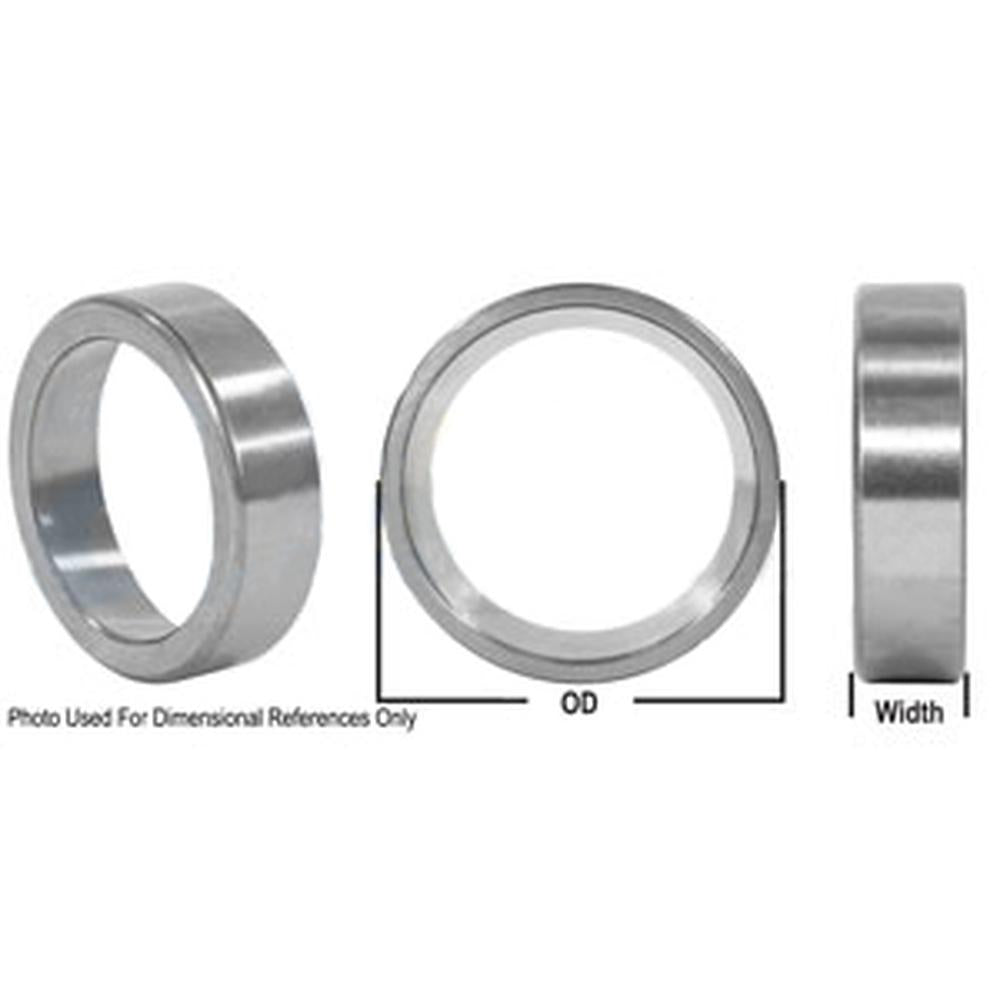

- Outside Diameter: 2.834"
- Width: 0.562"
- Housing Fillet Radius: 0.08"
- Bearing Series: Timken 19000 Series
- Type: Single Tapered Roller Bearing Cup (outer ring only)
Compatible Models
Case IH / International Harvester: 1494, 1594
David Brown: 880, 880 IMPLEMATIC, 885, 950, 990, 995, 996, 1190, 1194, 1200, 1210, 1212, 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1494, 1594, 1690, 1694
Replaces Part Number(s):
19283X, K19085, K19283, S.57580, S57580
Aftermarket Interchange Numbers
19150/19283X (cone/cup set reference), VPJ2418, NWB9025, 20/463-12
New aftermarket replacement part - not remanufactured, not used.
