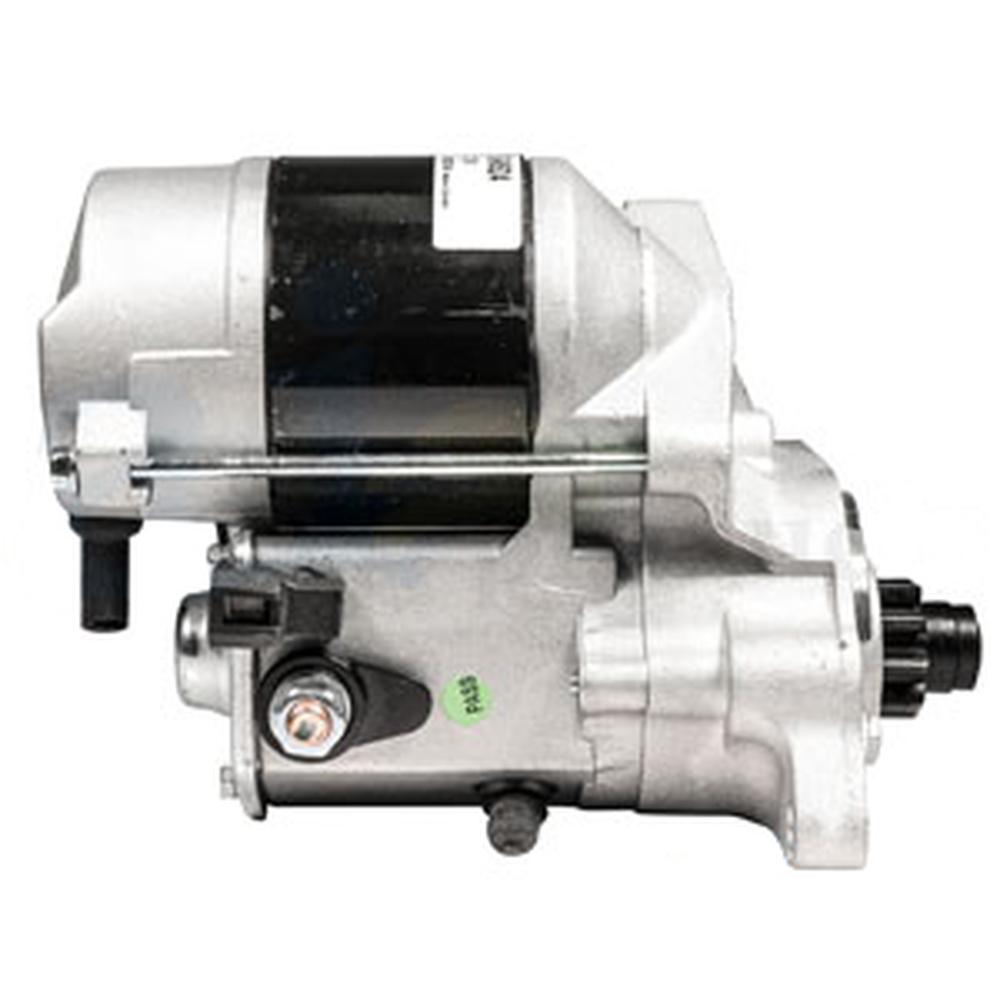

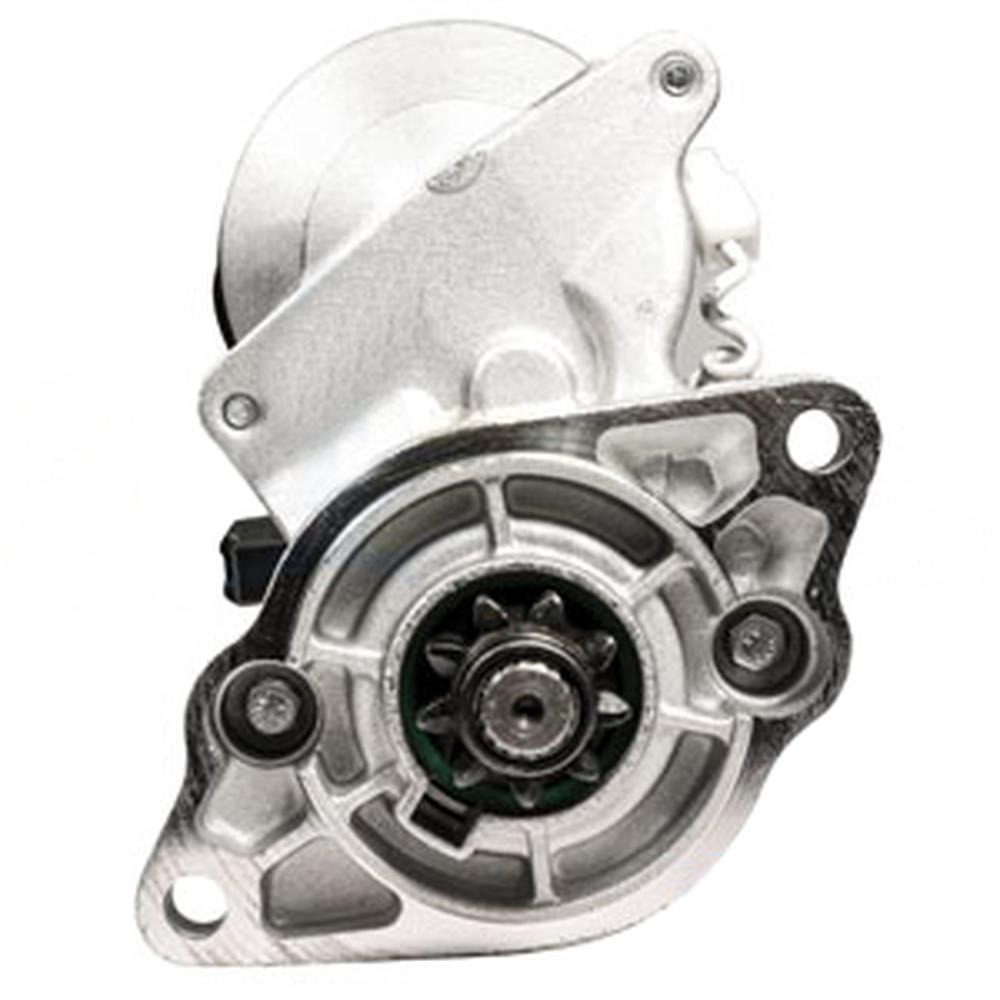

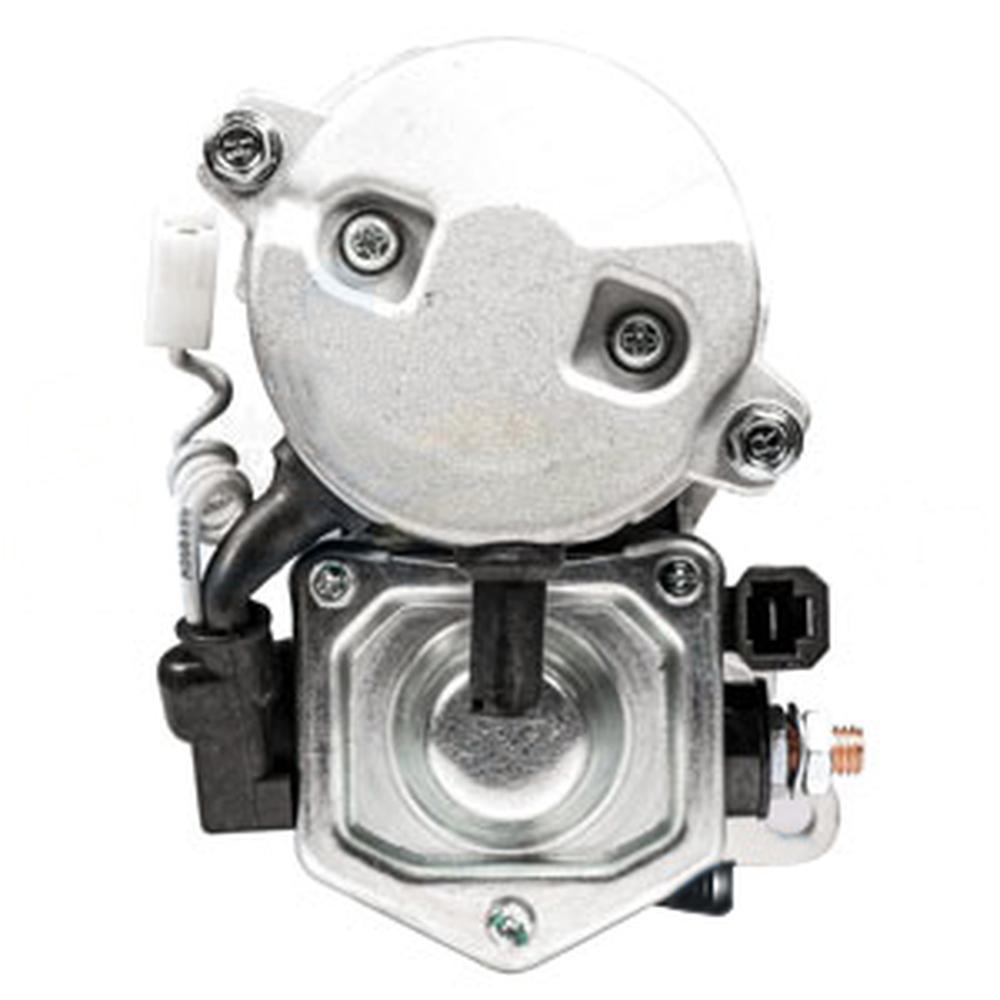

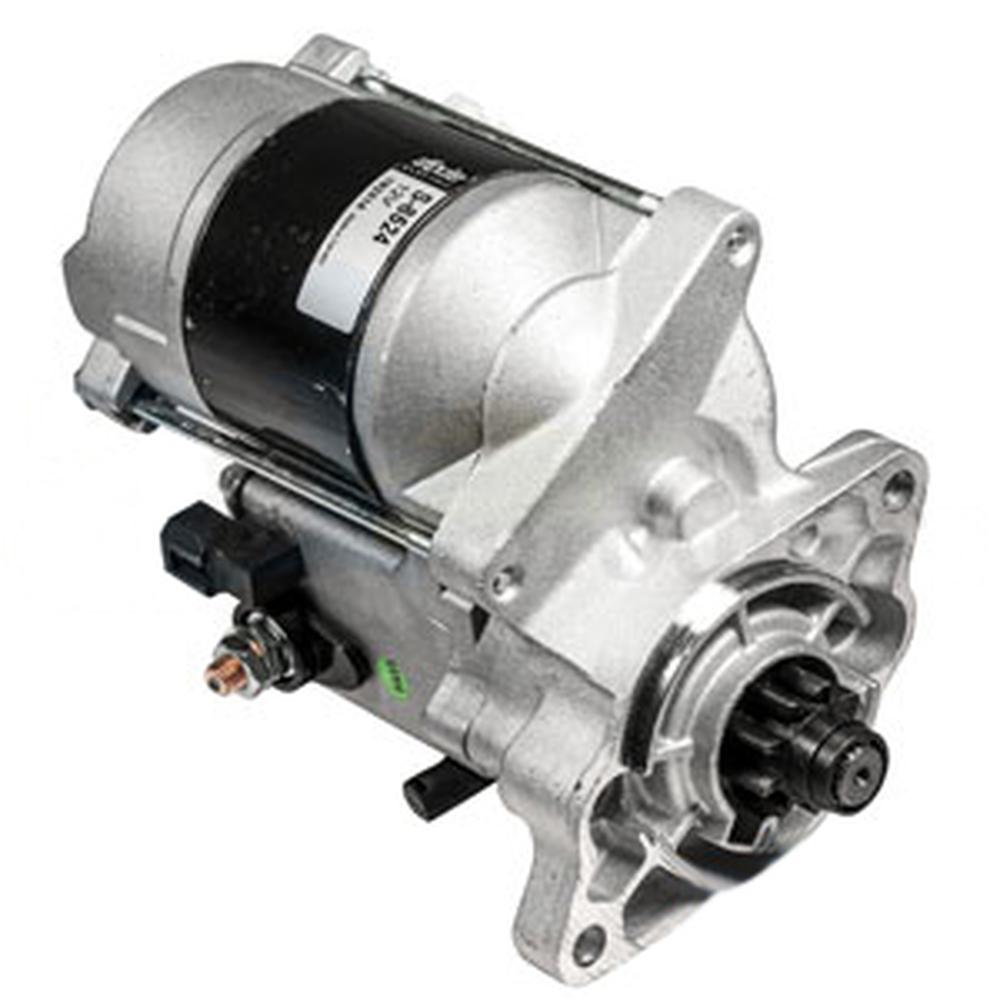

A-19269-63010-AI Starter, ND/OSGR

One New Aftermarket Replacement Starter (ND/OSGR) for Kubota and Case Equipment

This aftermarket replacement Nippondenso-style OSGR (Off-Set Gear Reduction) starter is a direct-fit replacement for Kubota tractors, compact utility tractors, sub-compact tractors, mini excavators, and Case uni-loaders. It engages the flywheel ring gear via a 9-tooth pinion to deliver reliable 12V clockwise-rotation cranking power for Kubota diesel engines including the D722, D902, D950, V1305, V1505, and Z602 series.

Specifications

• Type: ND/OSGR (Nippondenso Off-Set Gear Reduction)
• Voltage: 12V
• Power: 1.2 kW
• Rotation: CW (Clockwise)
• Teeth: 9
• Gear OD: 1.15 in / 29.2 mm
• Mounting Ear Hole 1: 9mm unthreaded
• Mounting Ear Hole 2: 9mm unthreaded

Compatible Models

Kubota Sub-Compact Tractors: BX1500D, BX1800D (2001-2003), BX1830D (2004-2006), BX1850D (2006-2009), BX1860D, BX1870, BX1870-1, BX2230D (2004-2006), BX2350D (2006-2009), BX2360, BX2370, BX2370-1, BX24 (2006-2009), BX25 (2009), BX25DLB, BX25DLB-1, B2150, B2150E

Kubota Mini Excavators: KH41, KH51, KH51H, KH61, KH61H, KX018-4, KX41, KX41-3, KX41H, KX71, KX71-3 (Cabin and Canopy), KX71-3S (Cabin and Canopy), KX71H, U17, U25S

Kubota Loaders / Misc Equipment: R310 (Old Type), R310BH (Old Type), F3990, D850-B1 Engine

Kubota Engines: D722E-BX, D902, D902-E2-BX-2, D902-E3-BX-2, D950, D950BH, V1305, V1505E2, V1505BH, Z602E

Case Uni-Loaders: 1818 (1987-1993), 1825 (1987-1997)

Carrier Transicold: Maxima, Optima, Various Models

Replaces Part Number(s):

Kubota: 19269-63010, 19269-63011, 19269-63012, 19269-63013, 16695-63011, 16695-63012, 16695-63013, 19090-17861
Denso: 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660
Denso Reman: 9722809-097, 9722809-099
Arrowhead: SND0264, 410-52020
Arrowhead (OEM): ND9722809-097, ND9722809-099, ND9722809-366
J & N: 410-52020, 410-52020R
Carrier Transicold: 25-15370-00, 25-15520-00, 945634
Bomag: 5740325
Cargo: 110447, 111021
Intl Harvester: 1959380C1
Lester: 17098

New aftermarket replacement part - not remanufactured, not used.
