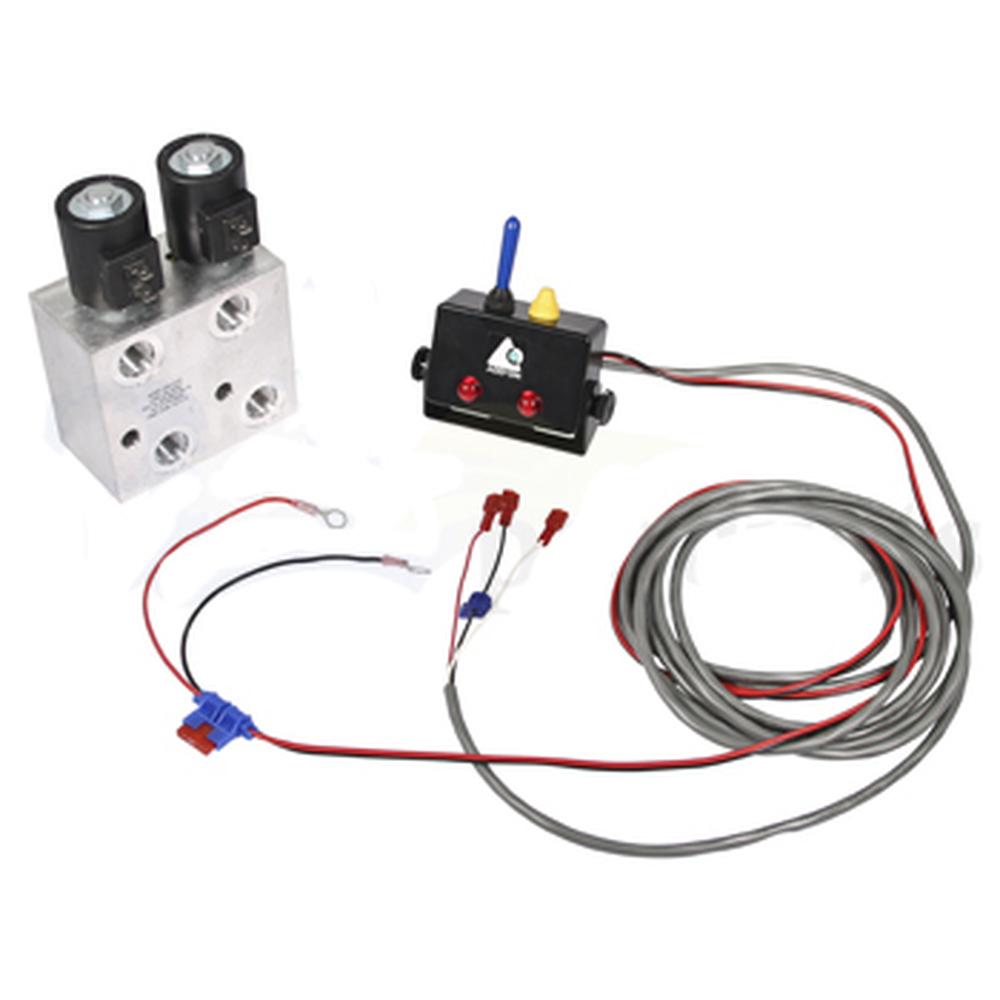

A-18550-AI Hyd. Multiplier, 2 Circuit Switchbox w/o Couplers, 12VDC

One New Aftermarket Replacement Hydraulic Multiplier - 2 Circuit Switchbox without Couplers, 12VDC

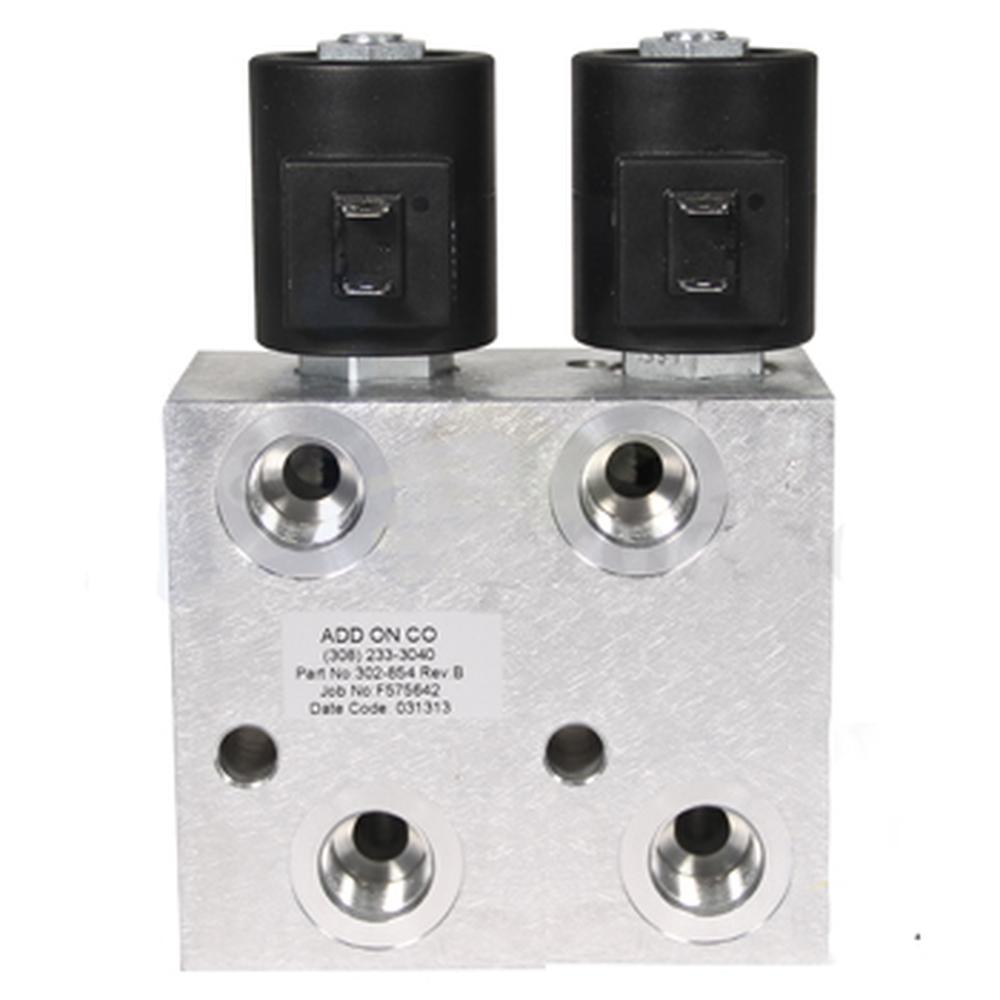

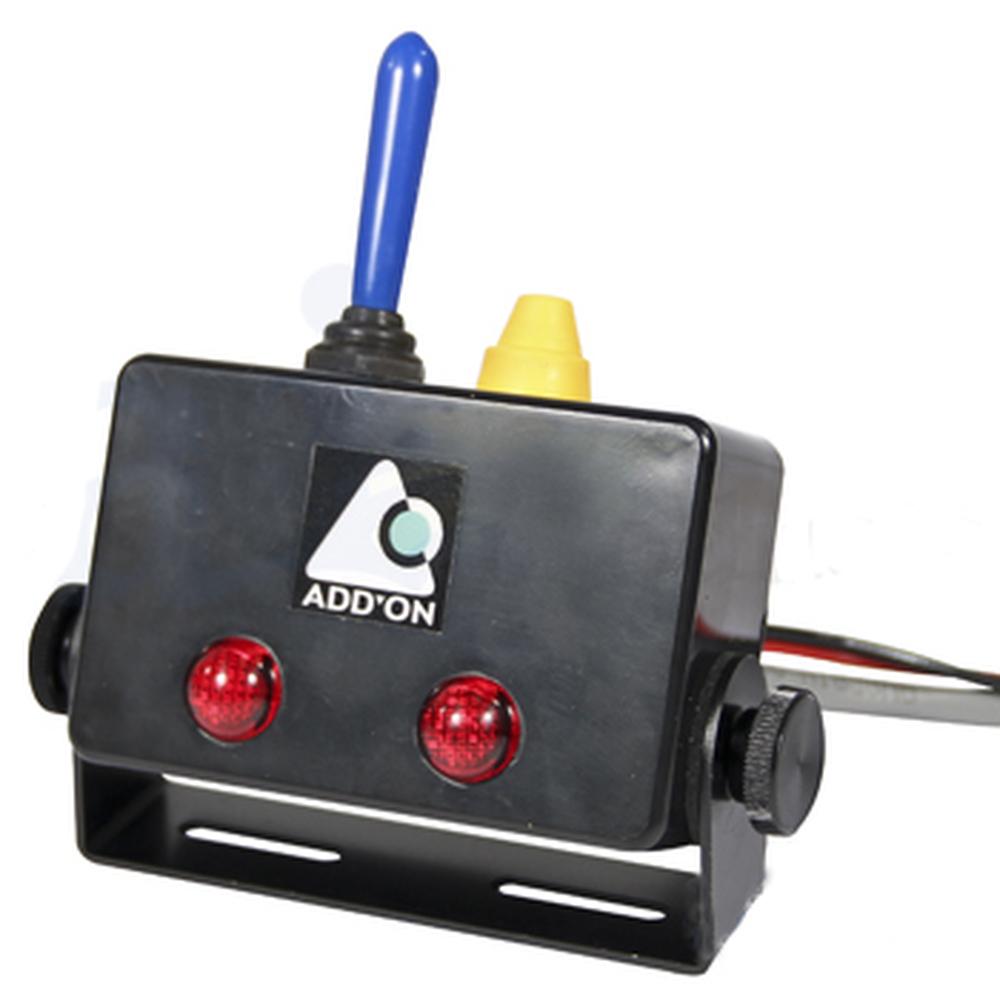

This solenoid-operated 2-circuit hydraulic multiplier with switchbox control converts a single tractor hydraulic remote (SCV) outlet into two independent circuits, allowing you to control two hydraulic implements from one lever. The 12VDC electric switchbox mounts in-cab and activates solenoids to select Circuit 1, Circuit 2, or both circuits simultaneously. Couplers are not included with this unit - order the coupler style matching your tractor's rear remotes separately.

Specifications

• Circuits: 2
• Control Type: Electric solenoid, 12 Volt DC
• Couplers: Not included
• Compatible hydraulic systems: Open center, closed center, and PFC (pressure-flow compensating)
• Works with single-acting and double-acting cylinders
• Allows tractor float operation on selected circuits

Compatible Models

Universal - Agricultural and Construction Tractors: Compatible with tractors from John Deere, Case IH (Case), New Holland, Kubota, Ford, Massey Ferguson, International Harvester (IH), and other makes equipped with standard rear remote hydraulic outlets. Suitable for any open, closed, or PFC hydraulic system requiring additional hydraulic circuits.

Replaces Part Number(s):

A-18550-AI, A-18550

New aftermarket replacement part - not remanufactured, not used.
