A-180349M1-AI LH Spindle

Name: A-180349M1-AI LH Spindle
SKU: A-180349M1-AI
Price: 105.0 USD
Availability: InStock

A-180349M1-AI LH Spindle

£105.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

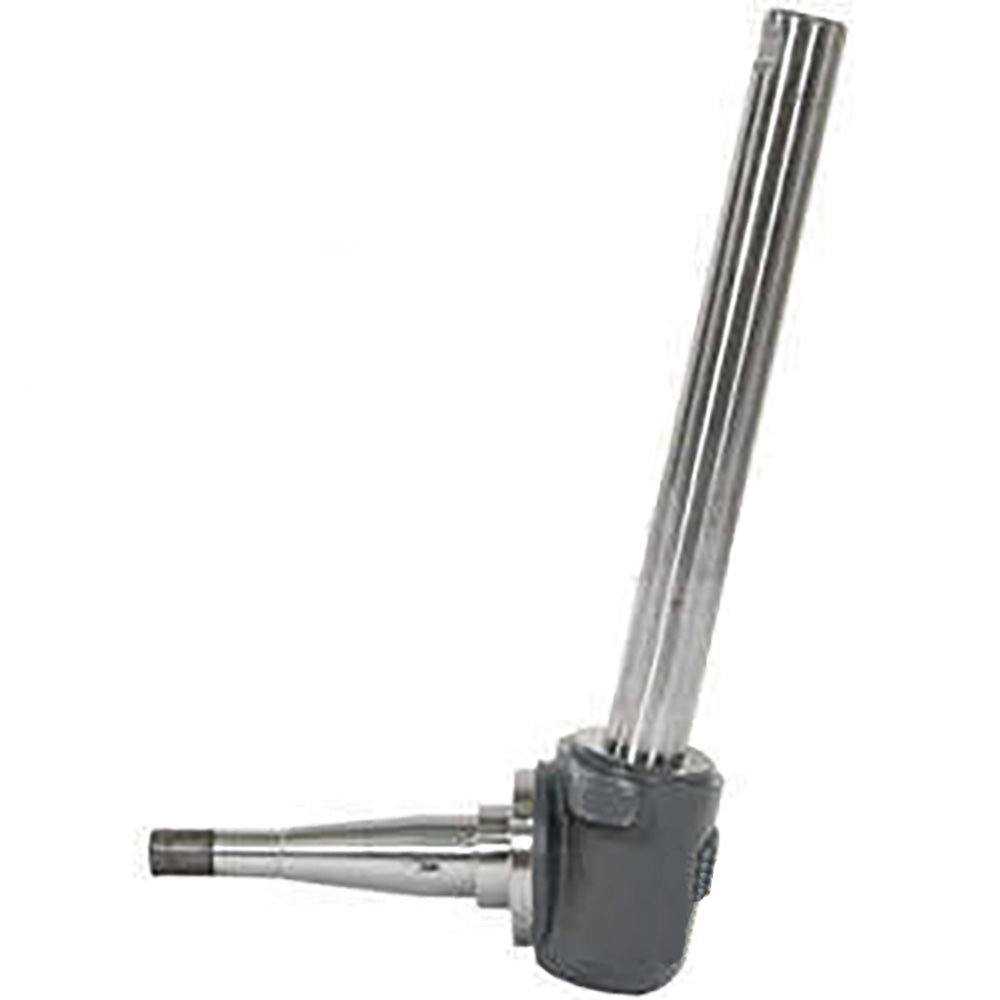

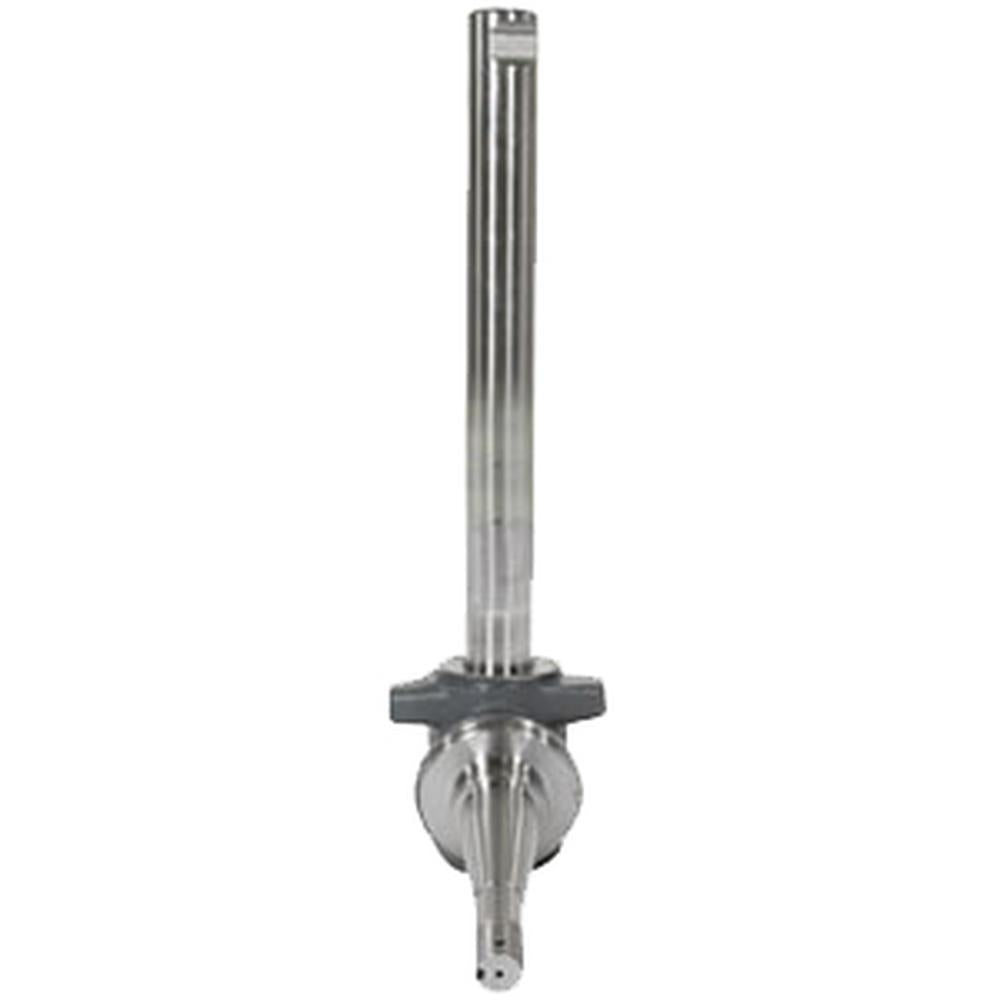

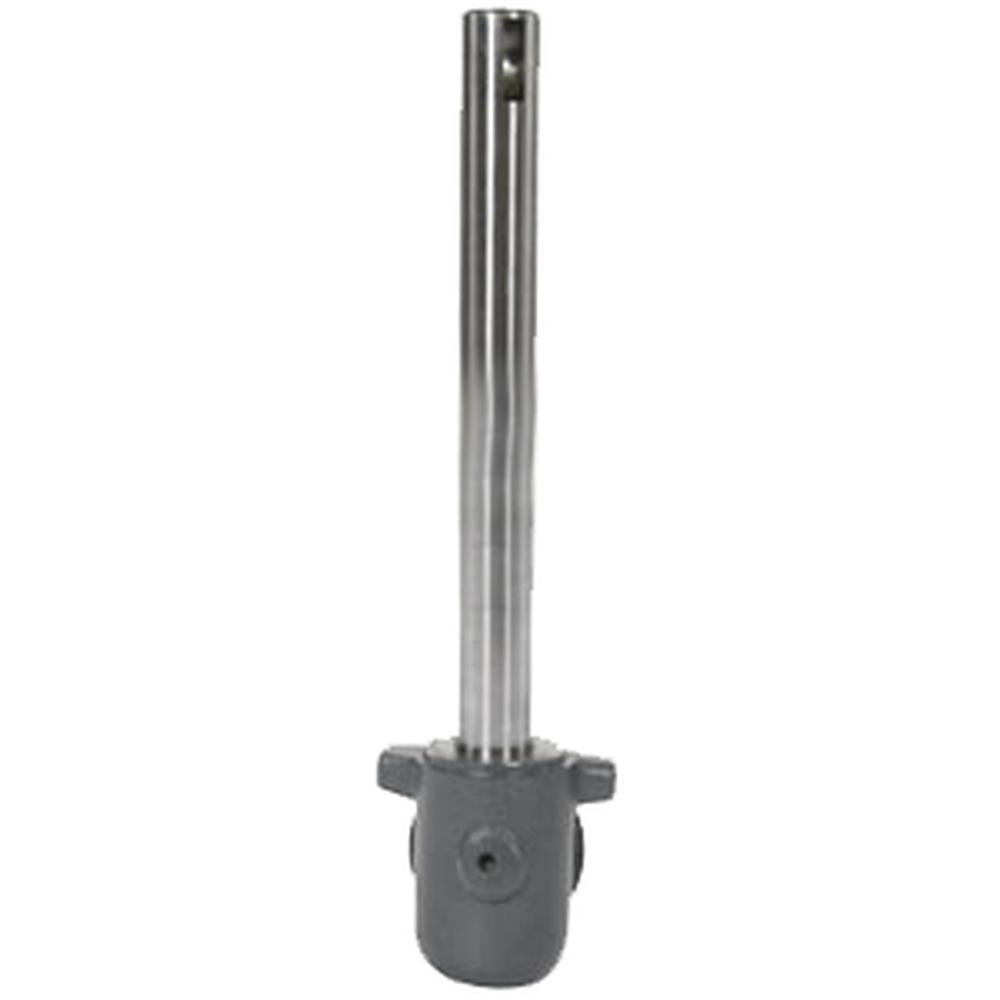

One New Aftermarket Replacement Left Hand (LH) Spindle Fits Massey Ferguson Tractors

This left-hand front axle spindle (also referred to as a stub axle) is a direct replacement for the original equipment part on Fits Massey Ferguson TE20-series and MF 35-series tractors. It mounts in the front axle assembly and supports the front wheel hub and bearing assembly on the left side.

Specifications

Side: Left Hand (LH)
Shaft Length (Dim A): 11.00"
Shaft Diameter - Large (Dim B): 1.250"
Shaft Diameter - Large Race (Dim C): 1.250"
Shaft Diameter - Small Race (Dim D): 0.750"
Thread: 3/4" UNF
Keyway Position: 11:30
Clamp Notch Position: 5:30

Compatible Models

Fits Massey Ferguson / Fits Ferguson: TE20, TEA20, TED20, TEF20, TO20, TO30, TO35, FE35, 35, 35X

Replaces Part Number(s):

180349M92, 180349M1, 897415M91

Aftermarket Interchange Numbers

180349V92, 897411M91, 897415M91HD, VPJ1004, S.15984

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

TEA20, 35X

Additional Information:

Keyway Positioned at 11:30, Clamp Notch Positioned at 5:30 Dim A (1) 11.00" Dim B (2) 1.250" Dim C (3) 1.250" Dim D (4) .750" Keyway Positioned at 11:30
