A-1701427-AI Flexco R2, Hinge Pin NC-30-1
A-1701427-AI Flexco R2, Hinge Pin NC-30-1
Couldn't load pickup availability

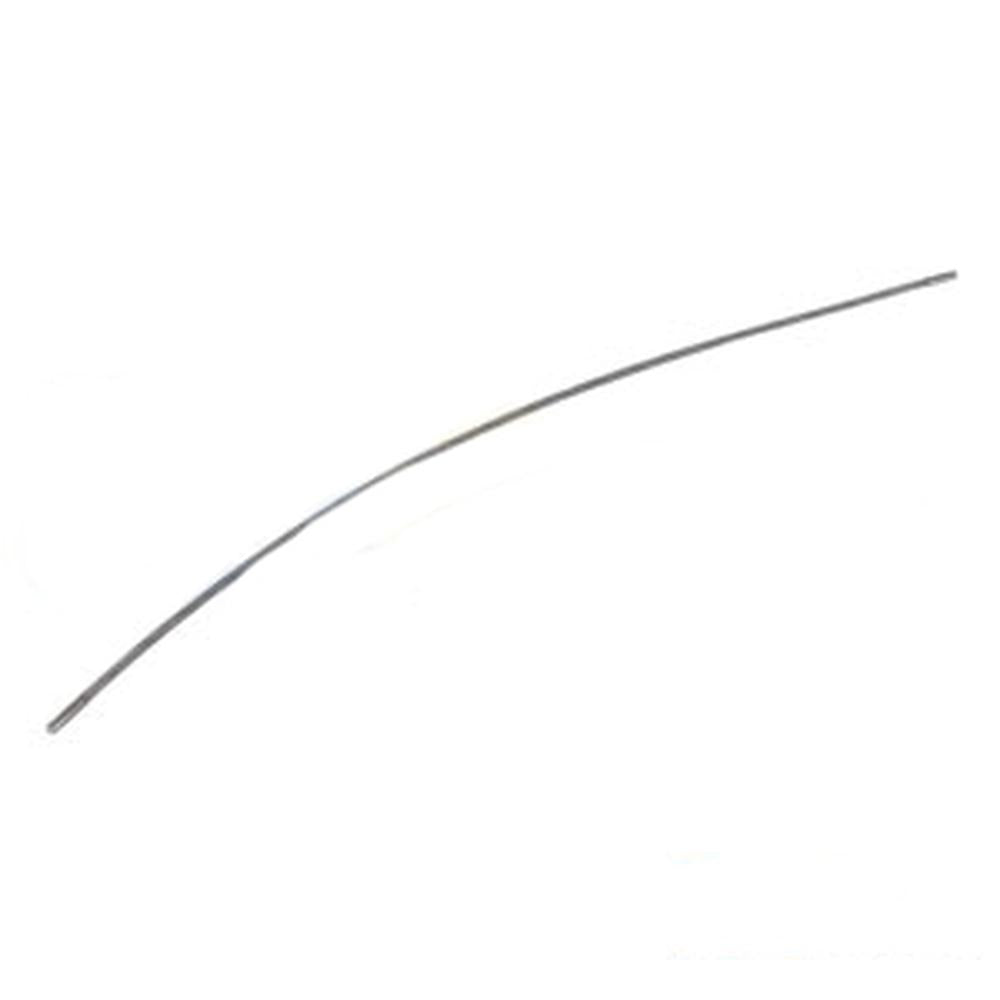

One New Aftermarket Replacement Flexco R2 Hinge Pin - NC-30-1, Nylon-Covered Steel Cable, 30" Belt Width
This Flexco NC-30-1 hinge pin is a replacement pin for use with Flexco R2 and R5 SR Rivet Hinged Fasteners as well as 375X and 550 Bolt Hinged Fastener systems. The hinge pin threads through the interlocked fastener loops at a conveyor belt splice, locking the two belt ends together and forming the pivot point of the hinged joint. Constructed of nylon-covered steel cable, it provides corrosion resistance and flexibility across the full 30" belt width. Sold individually (one pin).
Specifications
- Flexco Part Number: NC-30-1 (Item Code 38007)
- Pin Material: Nylon-Covered Steel Cable
- Pin Diameter: 1/4" (6.35 mm)
- Belt Width: 30" (750 mm)
- Package Configuration: One pin (singular)
- Compatible Fastener Systems: Flexco R2 SR, R5 SR (Rivet Hinged); Flexco 375X, 550 (Bolt Hinged)
Compatible Applications
Suitable for conveyor belt systems used in agriculture, grain handling, hay baling, construction, road equipment, coal, salt, potash, wood products, and general industrial conveying. The R2 fastener system is rated for belts up to 330 PIW, operating on belts 7/32" to 11/16" thick with a minimum pulley diameter of 9".
Replaces Part Number(s):
A-1701427, A-1701427-AI, 1701427
Aftermarket Interchange Numbers
Flexco NC-30-1 | Flexco Item Code 38007 | ARG Part FLX38007
New aftermarket replacement part - not remanufactured, not used.
