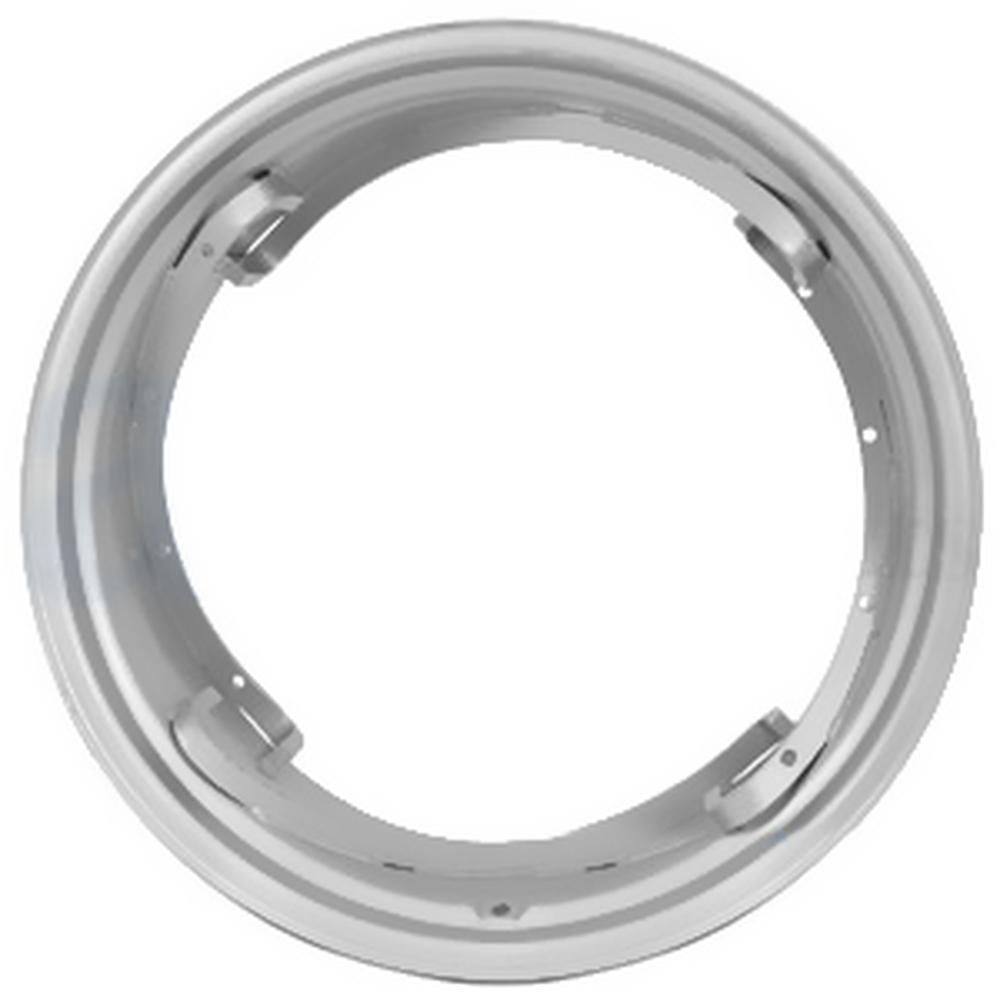

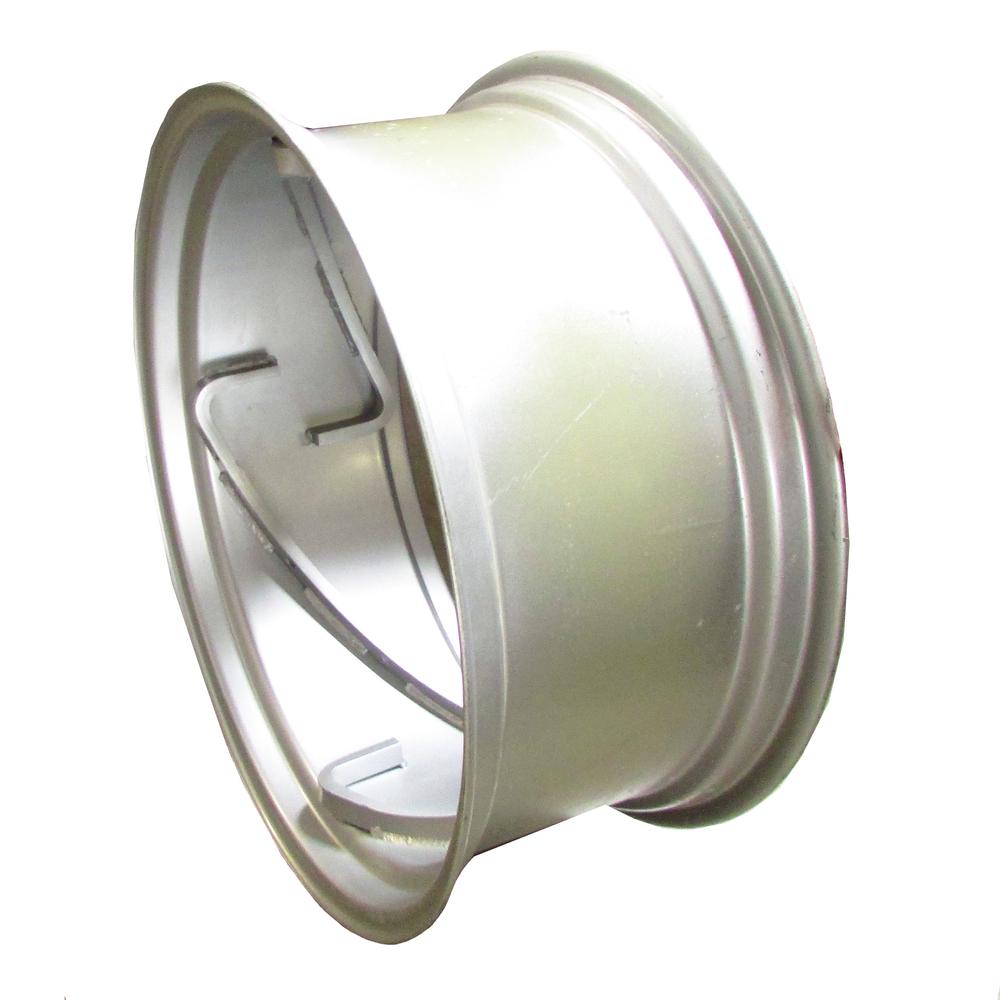

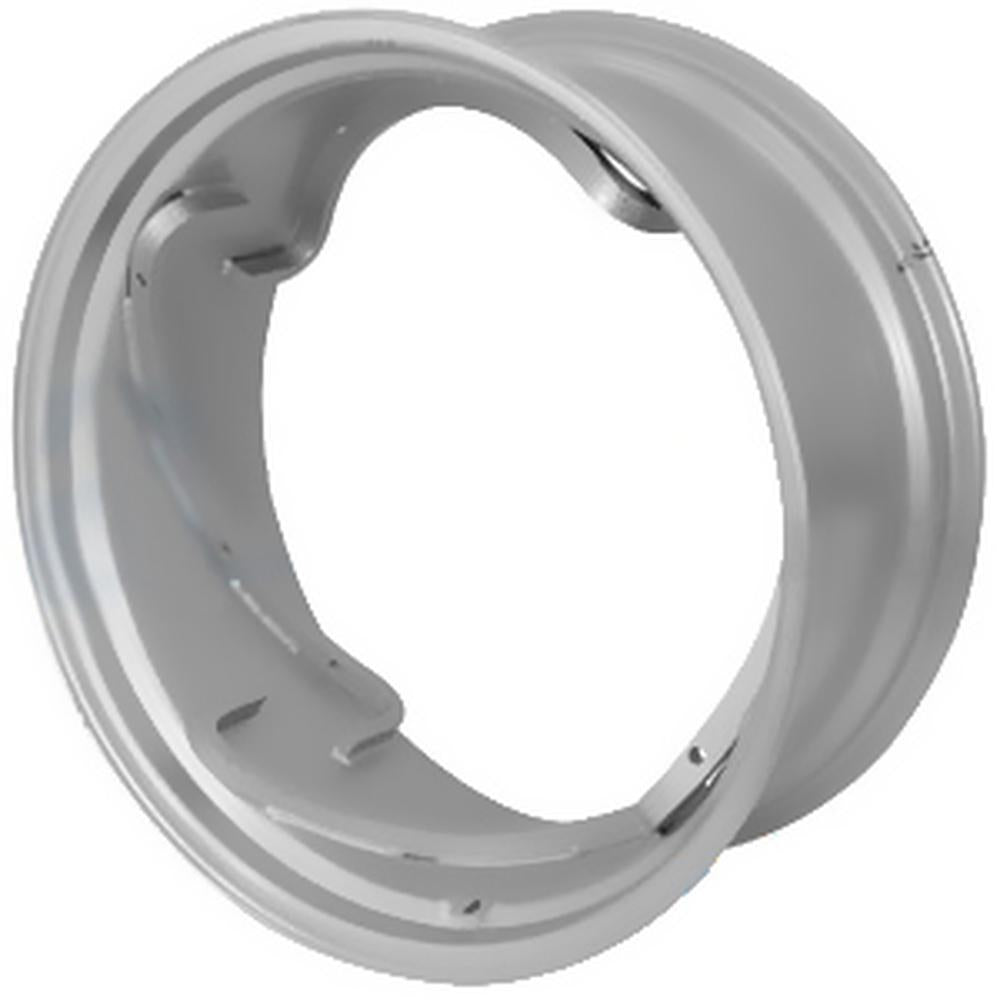

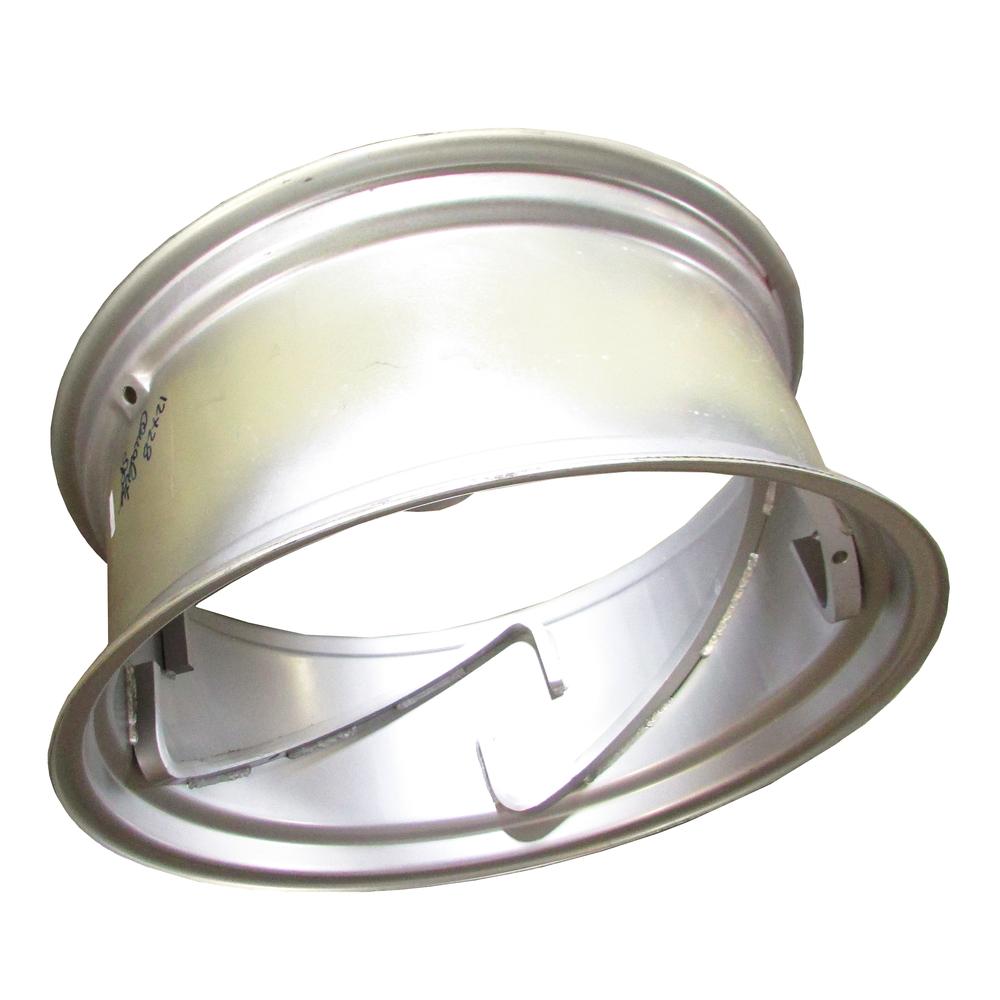

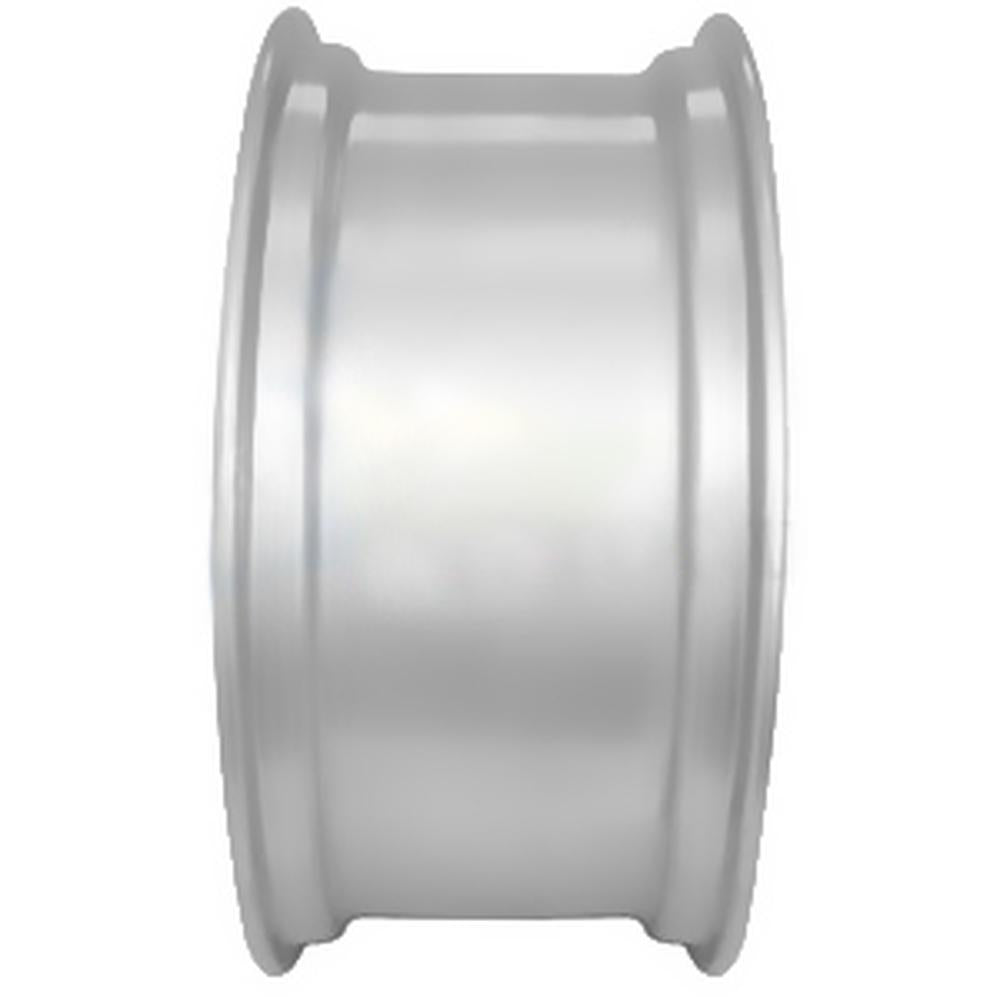

A-1687615M91-AI Rim, Power Adjust Wheel 12" X 28" 4 Rail

Models This Part Fits:

570, 1600, 301, 3910R, 784, 2300, 160, 210, 2120, 65, 2910, 240, 420, 3190, Jet Star 3 Super, 2020, 2610, 2110, 530, Super 55, 3310, 1250, 674, 3910H, 200B, 2-44, 484, 4000, 211B, 4000SU, 584, 1370, 3600N, 435, 480, 1020, 340, 235, Jetstar 3 Super, 310 Crawler, 464, 2030, 2240, 1255, 550, 2000, 4600, 541, 3120, 404, 434, 1650, 230, 3550, 4000 3 cylinder, 2310, 444, 684, 1355, 2610V, 3600R, 531, 3610V, 454, 400B, 431, 445, WD45, 1520, 3600, 255, 175, 1270, 2600, 470, 1265, 3000, 300B, 4600SU, 211, 3910V, 301B, 4110O, 310B, 4100, 3100, WD, 3150, 1655, 330, 410B, 1530, 3300, 253, 2000 3 cylinder, 3110, 350, 440, 2-50, 1450, 362, 300, 884, 3500, 540, 3055, 2010, 3610, 2600R, 504, 150, 3910, JetStar 3, 4110, 2600V, 250, 2150, 606, 2440, 200, Jet Star 3, 310, 210B, 460, 245, 360, 3600V, 311, 1365, 411B, 2-60, 165, 2100, 1250A, 2040, 135, 4110NO, 2600N, 430, 441, 3330, 424, 574, 1010, 2810, 311B

Additional Information:

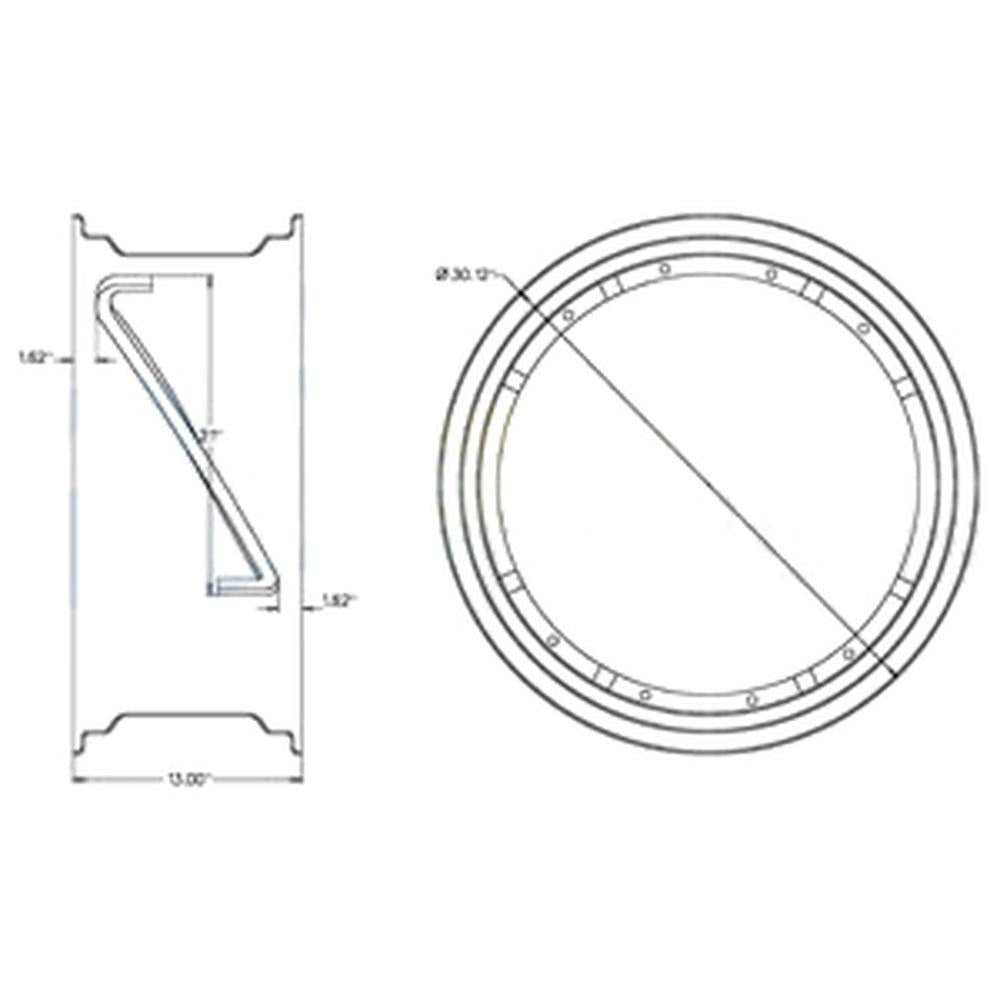

4 Rails 0.625" Rail Width 21" Long 1" Rail Height Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail Stop holes are angled To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside Not designed for tubeless applications Note: Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time

Reference Numbers:

10P787, C5NN1050J, AL60764, AM3202T, AM3202T, AL60764, 100047AS, 156072A, 226270, 70226270, 156072A, 100047AS, 1687615M91, 365324R92

Product Sub Group:

Rims
