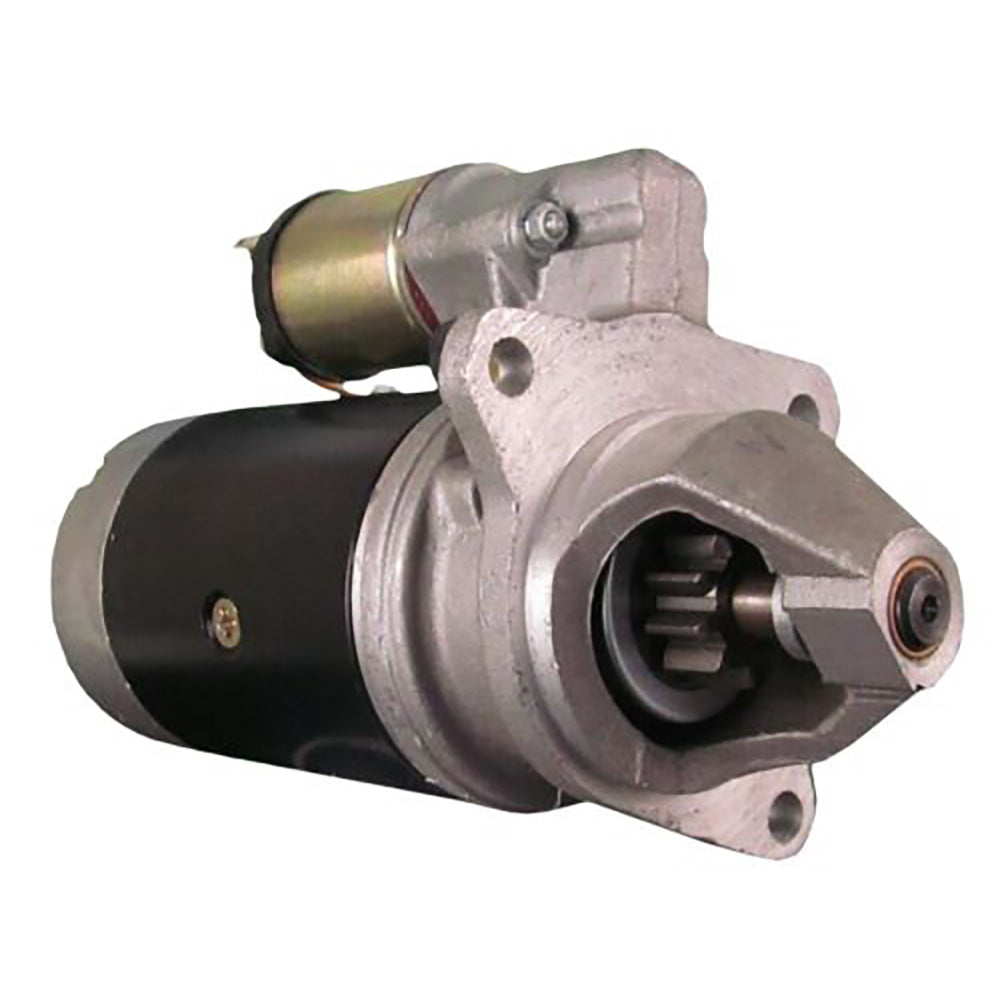

A-1680065M3-AI Starter, Fits Lucas

One New Aftermarket Replacement Starter for Massey Ferguson Tractors and Industrial Equipment - Lucas Type

This 12-volt direct-drive (DD) starter motor is a Lucas M45-type replacement for Massey Ferguson agricultural tractors, industrial machines, combines, windrowers, and Perkins-engined equipment. Mounted on the right-hand side of the engine, it features clockwise rotation and a 10-tooth drive gear with a 40mm (1.575 in.) pinion OD. Fitment note: on Massey Ferguson 165 tractors, this starter is compatible only with the Perkins A4.203 engine.

Specifications

• Voltage: 12V
• Type: Direct Drive (DD) - Lucas M45 type
• Rotation: Clockwise (CW)
• Number of Teeth: 10
• Pinion OD: 40mm / 1.575 in.
• Mounting Holes: 3 x 13mm unthreaded
• Mounting Hole Distance: 146mm
• Mounting Angle: 45 degrees
• Flywheel Depth: 28.7mm
• Output: 2.2-2.7 kW

Compatible Models

Massey Ferguson Agricultural Tractors: 35 (3-Cylinder, 1964-1968), 65 (1959-1964), 133, 135 (Perkins AD3-152 Diesel, 1964-1973), 140, 145, 148 (Perkins AD3-152 Diesel, 1964-1972), 150, 152, 154 (Perkins AD3-152 Diesel, 1980-1981, 1986-1989), 155, 158, 165 (Perkins A4.203 only, 1964-1969), 184 (Perkins AD4-236 Diesel, 1980-1985), 230, 234, 235, 240, 245, 250, 253, 254, 255, 263T (1993), 350, 352, 355, 360, 364 (Perkins 3-152 Diesel, 1989-1993), 550, 702 (1959-1962), FE-65 Diesel (1956-1962)

Massey Ferguson Industrial Tractors: 20B (Perkins AD3-152 Diesel, 1970-1981), 20E (Perkins Diesel, 1983-1986), 20F (Perkins Diesel, 1985-1994), 30E (Perkins Diesel, 1983-1992), 30H (w/ Manual Shuttle), 40 (1970-1971), 203 (1964-1968), 205 (1964-1968), 2135 (1964-1968, Perkins AD3-152 Diesel 1966-1970), 2203 (1968-1969), 2205 (1968-1969), 3303 (1968-1969), 3305 (1968-1969), 4215, 4220, 40E, 550 (1976-1981)

Massey Ferguson Combines: 205, 205SP (Chrysler H-170, 1966-1972), 300 (Perkins AD4-203, 1964-1977), 530 (Perkins AD4-203 Diesel, 1978-1979)

Massey Ferguson Crawlers: 200 (Perkins AD3-152 Diesel, 1971)

Massey Ferguson Lift Trucks: 2200 (Perkins AD3-152, 1966-1972; Perkins AD4-203, 1971)

Massey Ferguson Windrowers: 20 (1970-1971)

Massey Ferguson Specialty: 234C (A3.152, 1983)

Landini Tractors: 4560, 5560, 5830, 5840, 5860, 6030, 6060, Blizzard 50, Blizzard 60, Rex 55, Rex 60, Trekker 55

J.C. Bamford (JCB) Loaders: 406 (3-153, 1990-1994)

Perkins Engines: 3.152 (2489cc 3-cyl), 903-27T (2699cc 3-cyl)

Replaces Part Number(s):

Massey Ferguson: 1680065M1, 1680065M2, 1680065M3, 1680065R3, 1808449M2, 1893611M91, 1903-127-M91, 3539389M91, 3597426M1, 3597426M2, 3597426M3, 3597426R2, 3597426R3, 3930505R1, 887057M1, 887057M2, 887057R2, 898090M1, 9643382M1, 1871433M2, 3597371M2, 3763363M92, 968856M1, 1362049

Lucas: 26154, 26154A, 26154B, 26154C, 26154D, 26154E, 26154F, 26154G, 26154H, 26154J, 26154K, 26154L, 26154M, 26154N, 26200, 26200A, 26220, 26220A, 26264, 26264A, 26264F, 26264H, 26264K, 26412, 26412R, 27432, 27432R

Perkins: 2873143, 2873A012, 2873A012T, 2873A104, 2873D005, 2873A017, 2873A017R

Additional interchange: SLU0008, LRS00190, IS0509, IS0520, S4515, AZJ3598, 17639, 11.130.520, 11.130.711

New aftermarket replacement part - not remanufactured, not used.
