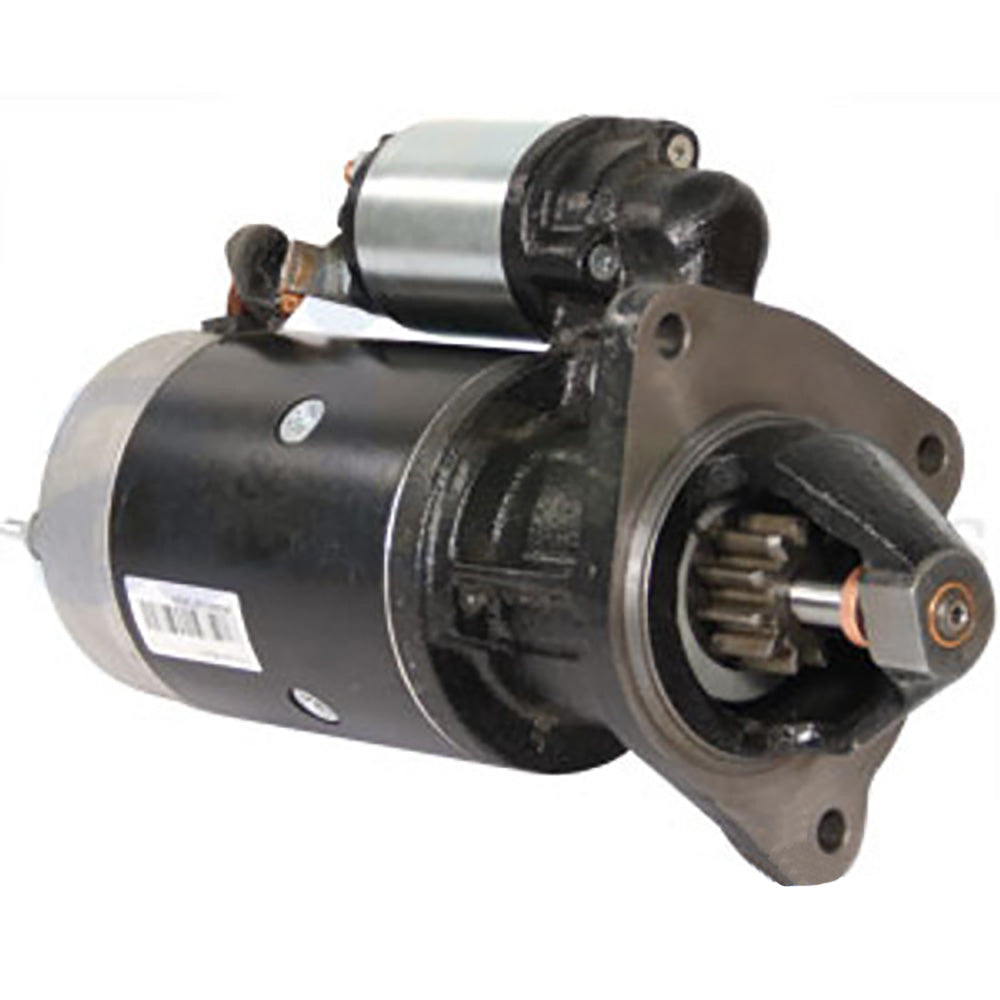

A-1530289C1-AI Starter, Fits Bosch

One New Aftermarket Replacement Starter for AGCO Allis, Case, SAME, Lamborghini, and Steyr Tractors

This Bosch-style PLGR (permanent magnet gear reduction) aftermarket replacement starter replaces OEM part number 1530289C1 (IHC/Navistar). It fits a wide range of agricultural tractors from AGCO Allis, Case, SAME, Lamborghini, Deutz-Fahr, and Steyr that were originally equipped with a Bosch starter unit.

Specifications

• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth on Drive: 9
• Power: 3.0 kW
• Design: PLGR (Permanent Magnet Gear Reduction)
• Mount Type: Flange, 2-Hole

Compatible Models

AGCO: GT65 2004, GT65 4WD 2004, GT65A 2004-2008, GT65A 4WD 2004-2008, GT75 2004, GT75 4WD 2004, GT75A 2004-2007, GT75A 4WD 2004-2007

AGCO Allis: 5670 1991-2001, 5670 4WD 1991-2001, 5680 1991-1998, 5680 4WD 1991-1998, 6670 1991-2001, 6670 4WD 1991-2001, 6680 1991-1998, 6680 4WD 1991-1998, 6690 1991-1998, 6690 4WD 1991-1998, 7600 1991-1998, 7600 4WD 1991-1998, 7630 4WD 1991-1995, 7650 4WD 1991-1995

Case: 2140 1986-1992, 2150 1990-1992

SAME: Antares 100 (1989), Buffalo 130 (1980-1982), Explorer 70 (1987), Explorer 70C (1987), Explorer 75C (1984-1987), Explorer 80 (1987), Explorer 80C (1987), Explorer 90 Special (1986), Explorer 90C (1986), Frutteto 75 (1987), Frutteto 75 (1991), Frutteto II 60 (1991-1997), Laser 90 (1988-1989), Laser 110 (1988), Laser 130 (1988), Laser 150 (1988), Solar 60C (1987), Tiger Six 105 (1981-1987), Titan 160 (1991), Titan 190 (1992), Trident 130 (1981-1984), Vigneron 75 (1994-1997)

Lamborghini: 1000 Racing, 150, 165, Agile 660

Steyr Agricultural Tractor: 8100 (1978-1988), 8110 (1978), 8130 (1984-1992)

Deutz-Fahr: Agroclimber SDF1000 (2012-2015), Agrolux (2010-2015)

Replaces Part Number(s):

1530289C1, A-1530289C1-AI, 296192300, 296192900, 29619390

Aftermarket Interchange Numbers

Bosch: 0 001 262 029, 0 001 262 030, 0 001 367 005; Letrika/Iskra Sales: IS 1249; Letrika/Iskra Tech: AZF4220; Lester: 19269; Mondial: 7026581; LRS1053; 72259581; 72270794; 72277573; IS0254

New aftermarket replacement part - not remanufactured, not used.
