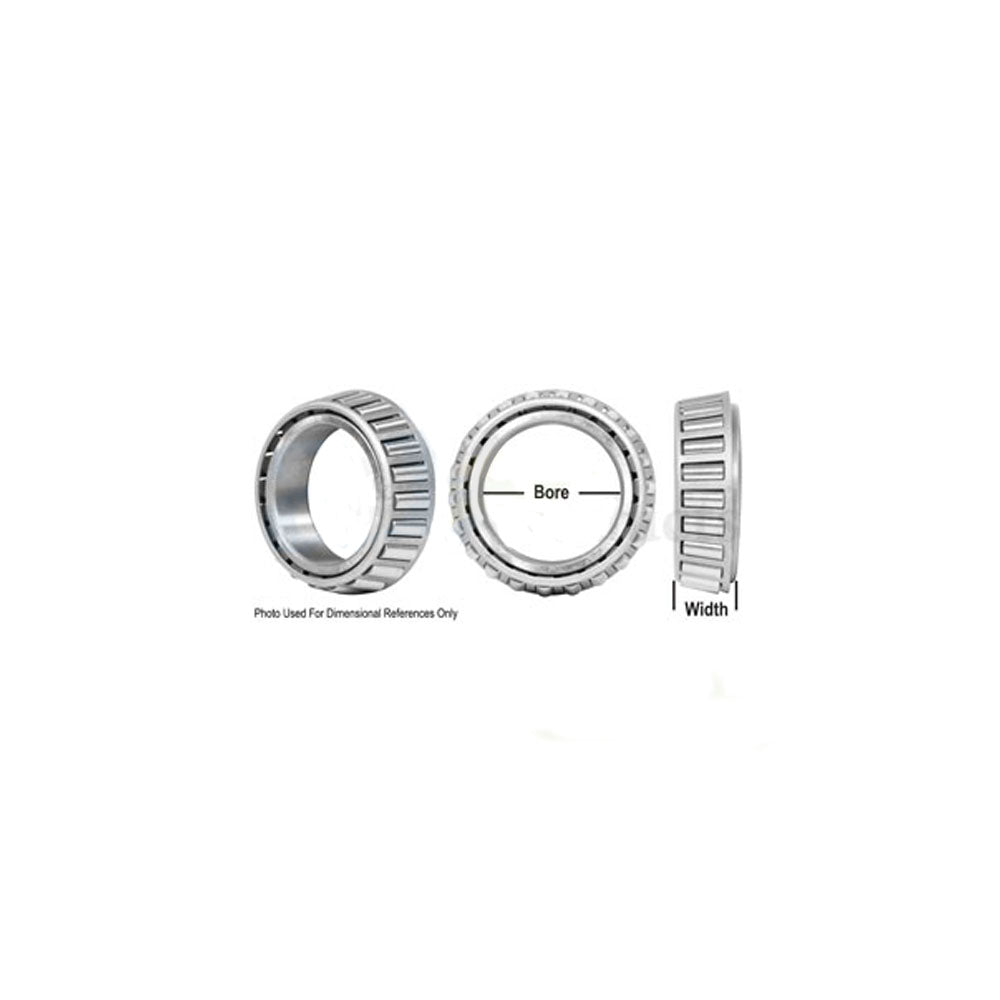

A-15120-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 15120 (15000 Series)

This 15000 Series single tapered roller bearing cone serves as the inner ring assembly of a tapered roller bearing unit, designed to handle both radial and axial loads. It pairs with a compatible cup (outer ring, sold separately) to form a complete single tapered roller bearing, and is typically mounted in opposing pairs on a shaft. Common applications include wheel bearings, axle and differential shaft bearings, transfer Fits Case output shafts, and drivetrain assemblies in agricultural, construction, and industrial equipment.

Specifications

• Type: Single Tapered Roller Bearing Cone (Inner Ring Assembly)
• Series: 15000
• Bore: 1.189" (1.1895" / 30.213 mm) - Straight Bore
• Width: 0.812" (13/16" / 20.638 mm)
• Maximum Shaft Fillet Radius: 0.030"
• Tolerance: Standard
• Material: Steel
• Note: Cup (outer ring) sold separately - pairs with cup 15243

Replaces Part Number(s):

15120, A-15120-P-AI, 15120-I, JD8062, JD8150, 360144R91, 360143R91, 352383R91, 352390R91, 350808R91, 350807R91, 195751M91, 850221M1, 850220M1, 1501102M1, 117263, 116158EX, 124X22, 209985, 0209985, 70209985, 230433, 225408, 206529, 191605, 40380, 84001, 11449, 15523, A15523, VT3404, N82, S9872, 5DM8, 83M22, GBT307795, T552268, 01006B

New aftermarket replacement part - not remanufactured, not used.
