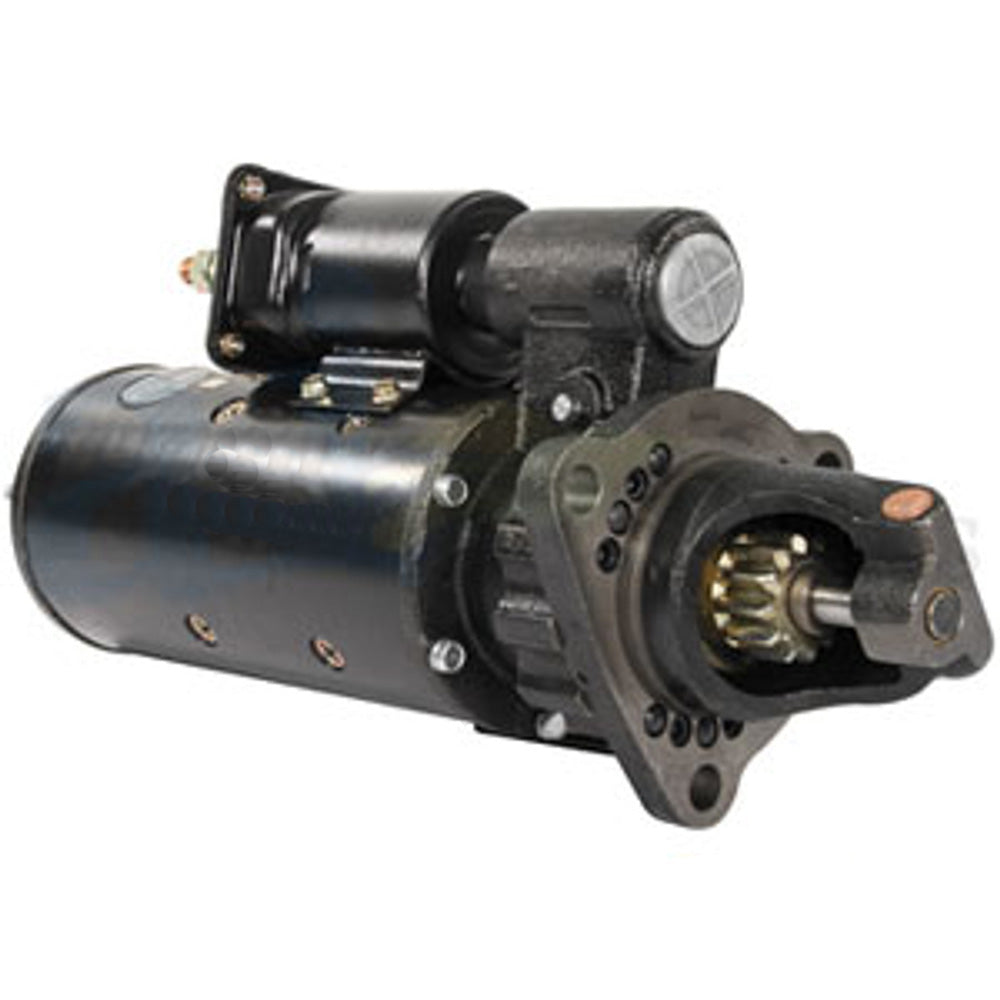

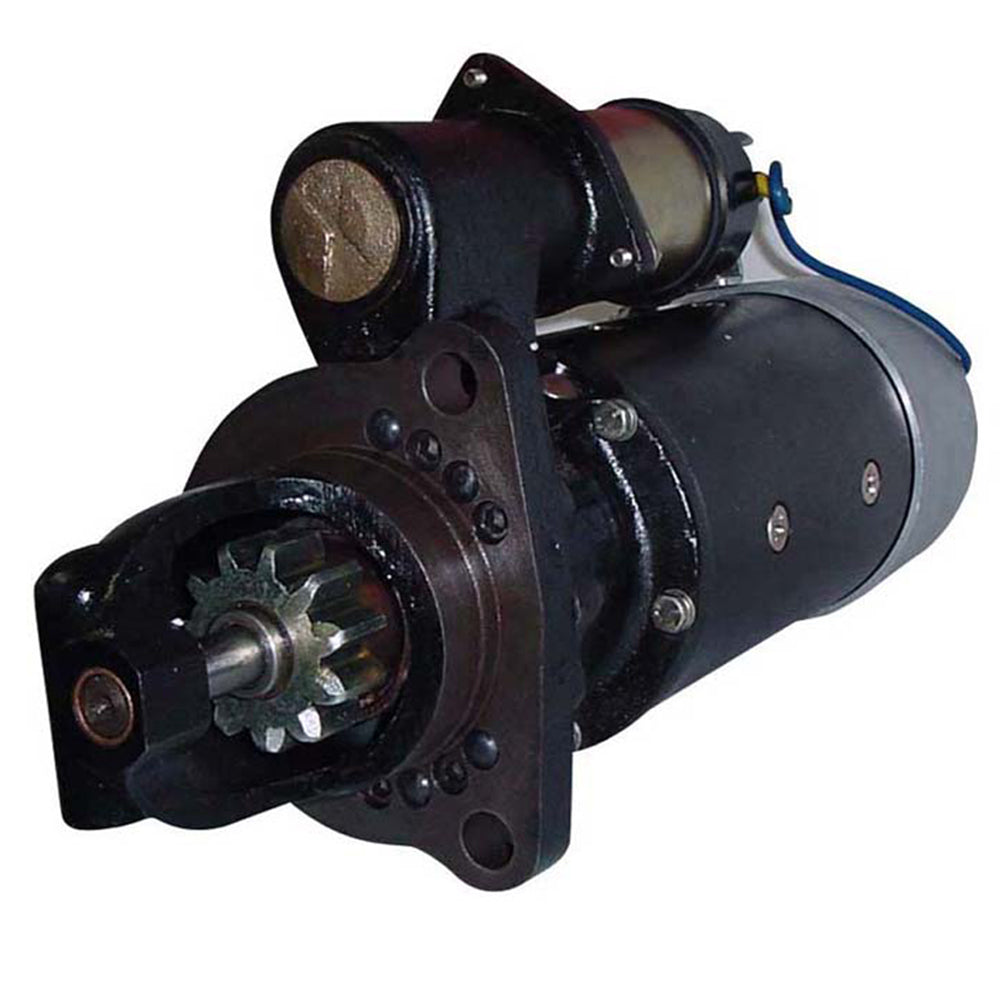

A-140855A2-AI Starter, Fits Delco

A-140855A2-AI Starter, Fits Delco

£373.00 GBP
£373.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Direct Drive Starter for John Deere, Case/International Harvester, Caterpillar, Ford/New Holland, and Cummins Equipment

This 12-volt, 7.3 kW direct drive (DD) Delco-style replacement starter fits a wide range of John Deere (JD) tractors, forage harvesters, and wheel loaders, as well as Case/IH (International Harvester) tractors, Caterpillar (Cat) engines and equipment, Ford/New Holland tractors, and Cummins-powered machines. It features clockwise rotation, an 11-tooth drive gear with a 2.201-inch (55.9 mm) gear OD, and overcrank protection. The solenoid is positioned at 82 degrees on a rotatable drive-end housing for flexible installation. Primary OEM reference number is RE53695 (John Deere) and 140855A2 (Case/IH).

Specifications

  • Voltage: 12V
  • Power: 7.300 kW (9.789 HP)
  • Type: Direct Drive (DD), Delco Style
  • Rotation: Clockwise (CW)
  • Number of Teeth: 11
  • Gear OD: 2.201 in / 55.900 mm
  • Solenoid Position: 82 degrees (rotatable DE housing)
  • Length: 19.728 in / 501.100 mm
  • Mount Hole ID 1 and 2: 0.660 in (unthreaded); Mount Hole 3: unthreaded
  • Overcrank Protection: Yes

Compatible Models

John Deere Tractors: 530, 531, 535, 540, 541, 545, 570, 630, 631, 632, 634, 640, 641, 642, 644, 8560, 8570, 8630, 8760, 8770, 8850, 8870, 8960, 8970, 6950

John Deere Forage Harvesters: 5730, 5830

John Deere Industrial/Construction: 580, 580C, 580CK, 530CK, W3

Case/IH Tractors: 9170, 9180, 9250, 9260, 9270, 9280, 9350, 9370, 9380, 9390, 9480, 9482, 9680, 9682, STX375, STX425, STX450, 580CK

Steiger/Case IH Articulateds: CR1225 Steiger, CR1280 Steiger, KR1225 Steiger, KR1280 Steiger, PTA251 Steiger, PTA270 Steiger, PTA280 Steiger, PTA297 Steiger, PTA310 Steiger, PTA325 Steiger, PT225 Steiger, PT270 Steiger, 9170, 9180, 9280, 9380, 9480, BEARCAT, COUGAR, LION, PANTHER, TIGER

Caterpillar (Cat) Engines: C10, C12, C13, C15, C16, 3406, 3408, 3412

Ford/New Holland: 2100, 2115

Cummins-Powered Equipment: Various Cummins-engine applications per engine model reference numbers below

Additional Models (from catalog): 530, 570, 876V, 856V, 936V, 946V, 1156, 1156V

Replaces Part Number(s):

RE53695, 140855A2, 107717A1, 263819C91, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, TY6728, 3604665R, 3604665RX, 6513, 6548, 20-2383T91, 20-2384T91

Aftermarket Interchange Numbers

SE501451, SDR0010, SA756, SA756A, SA778, SA796, SA823, SA829, 1673725C91, 202383T91, 202384T91, 0R-4261, 8C-3593, 3604322RX, V102746, V90563, BSX1440039, TS-1501, TS-1700

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

STX450, 1156, 3412, 3406, 9482, W3, 630, PTA270 Steiger, 9280, LION, 9682, 8850, PTA310 Steiger, 8570, 8760, 580C, 641, 9282, 5830, 9680, 9170, 9370, 3408, KR1225 Steiger, C10, TIGER, 570, 540, 2115, 876V, 6950, 9180, BEARCAT, C15, COUGAR, 9480, 580, 8630, 541, Agricultural Machinery, 8770, PT225 Steiger, 856V, 530, 9350, 8870, Construction Equipment, KR1280 Steiger, C12, PTA251 Steiger, 644, 631, 545, 634, CR1225 Steiger, 9250, 9380, 9880, 946V, 9260, C13, PTA325 Steiger, C16, 8960, 9270, 530CK, STX425, 1156V, 642, STX375, 9390, PT270 Steiger, 8970, 8560, PTA280 Steiger, 580CK, 936V, 5730, 640, PANTHER, PTA297 Steiger, 531, 535, 2100, 632, CR1280 Steiger

Additional Information:

Volt: 12 Power: 7.300 KW HP: 9.789 Rotation Direction: Clockwise Electric Starter Type: Direct Drive (Dd) Number of Teeth: 11 Gear OD: 2.201" Gear OD: 55.900 mm Solenoid Position: 82 Length: 19.728" Length: 501.100 mm Mount Hole ID 1: 0.660" Mount Hole 1 Type: Unthreaded Mount Hole ID 2: 0.660" Mount Hole 2 Type: Unthreaded Mount Hole 3 Type: Unthreaded Overcrank Protection: True Solenoid Position: 82

Reference Numbers:

107717A1, 20-2383T91, 20-2384T91, 263819C91, 3604665R, 3604665RX, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, RE53695, TY6728, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 6513, 6548, 0R2191, 2N2761, 3E7863, 8C3652
