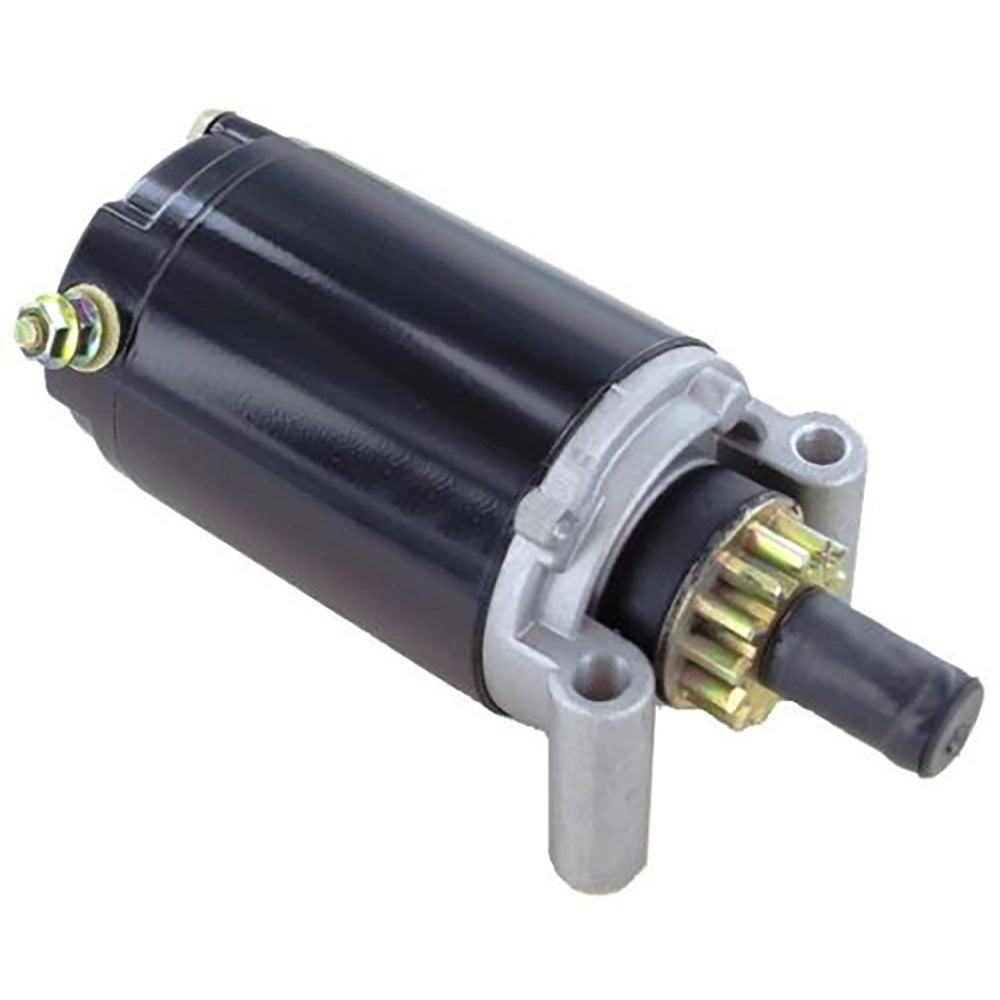

A-12-098-12-AI Starter, 12V, CCW, 13T, (New)

One New Aftermarket Replacement Starter for Kohler Command Single-Cylinder Engines

This 12-volt, counterclockwise (CCW), 13-tooth Permanent Magnet Direct Drive (PMDD) starter replaces Kohler OEM part number 12-098-12 / 12-098-12-S and is designed for Kohler Command horizontal and vertical single-cylinder small engines used in lawn tractors, riding mowers, and outdoor power equipment. It mounts to the engine block and engages the flywheel ring gear to crank the engine on startup.

Specifications

• Voltage: 12V DC
• Rotation: Counterclockwise (CCW)
• Teeth: 13
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Housing Length: Approx. 7-1/4 in.
• Housing O.D.: Approx. 3-1/16 in.

Compatible Kohler Engine Models

Kohler Command CH Series: CH11, CH12.5, CH13, CH14, CH15, CH410, CH430, CH450

Kohler Command CV Series: CV12.5, CV14, CV15

Used on lawn tractors, riding mowers, and other outdoor power equipment powered by Kohler Command single-cylinder horizontal engines. Always verify your OEM part number from your engine's model/spec/serial tag before ordering.

Replaces Part Number(s):

A-12-098-12-AI, 12-098-12, 12-098-12-S, 12-098-21-S, 12-098-19-S, 12-098-09, 12-098-09-S, 12-098-06, 12-098-06-S, 12-098-05, 12-098-05-S

New aftermarket replacement part - not remanufactured, not used.
