A-12-098-08-AI N/A

One New Aftermarket Replacement Electric Starter for Kohler Command Series Single-Cylinder Engines

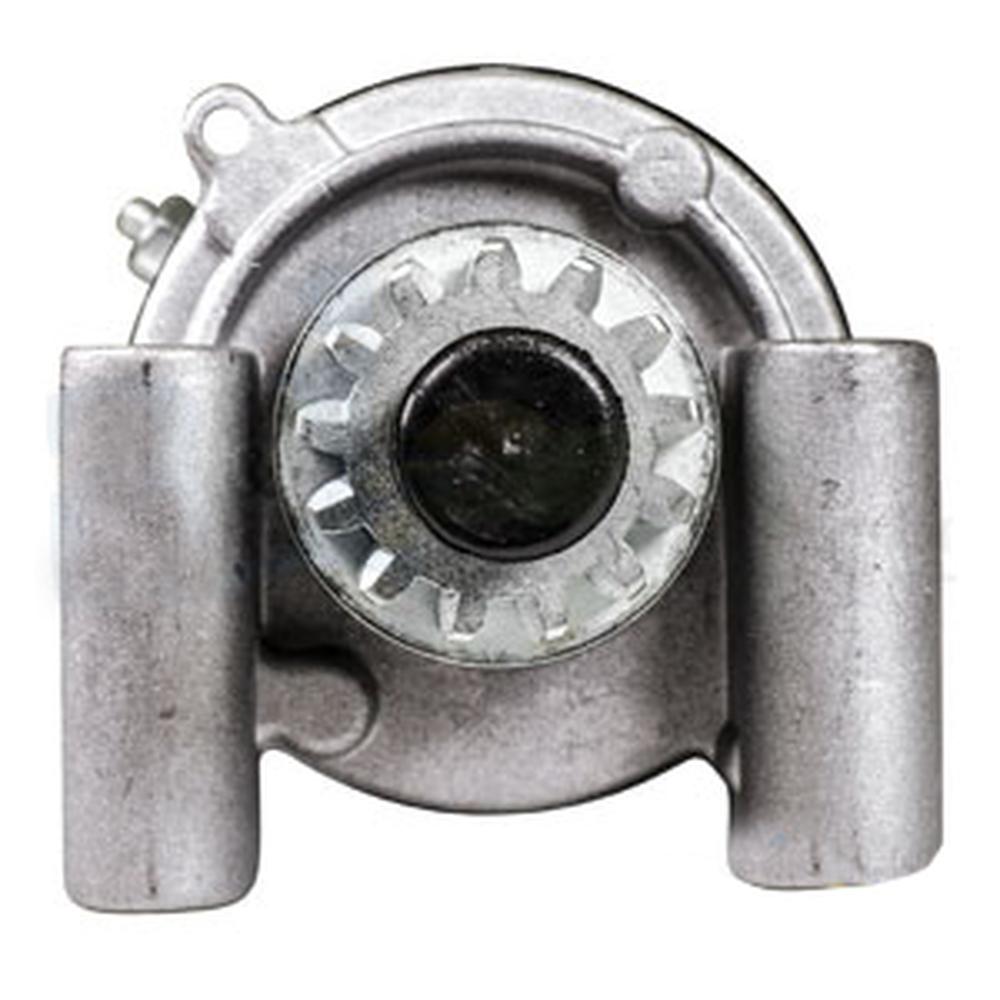

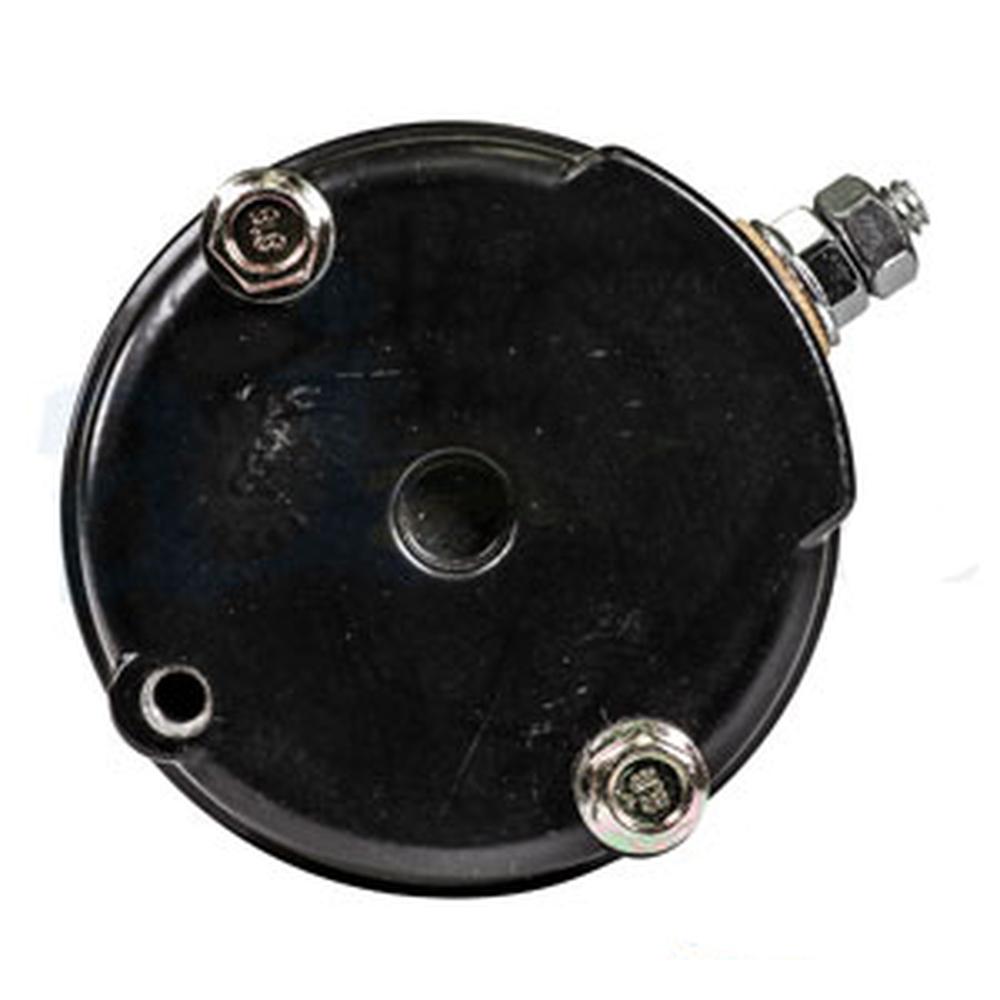

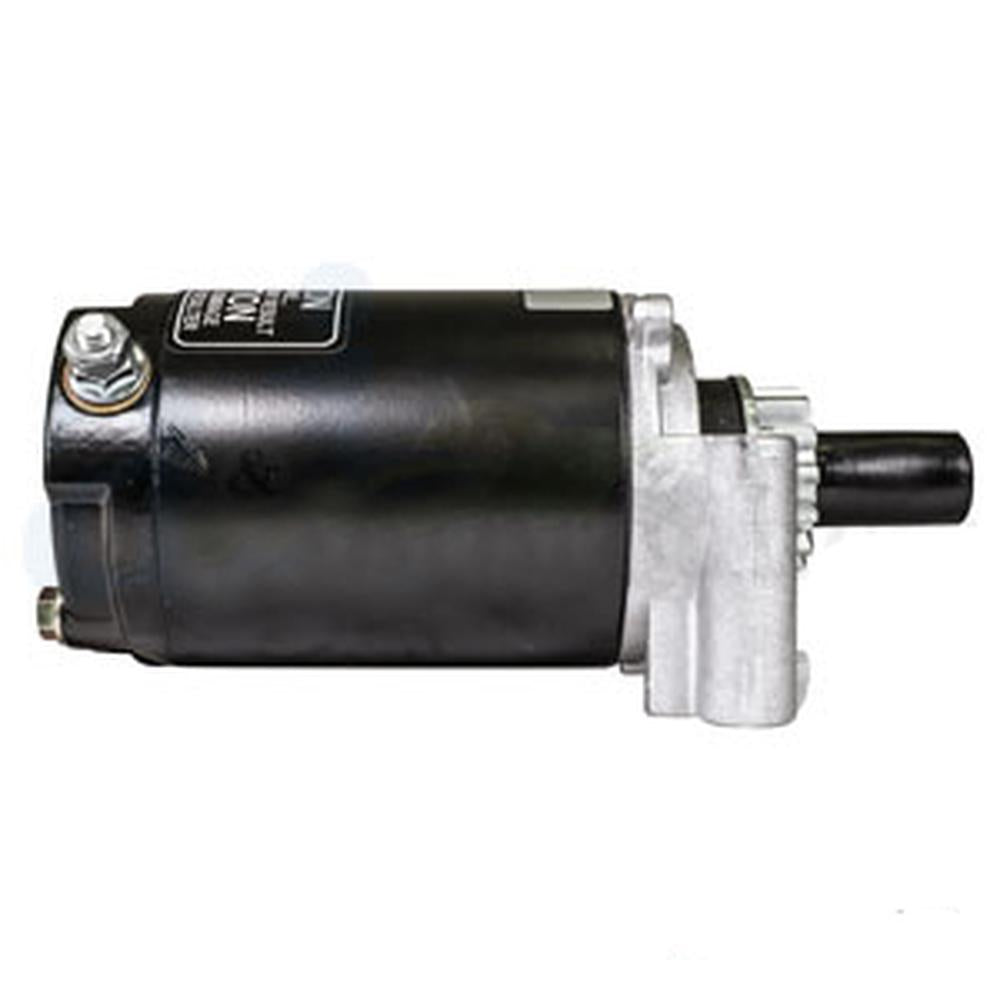

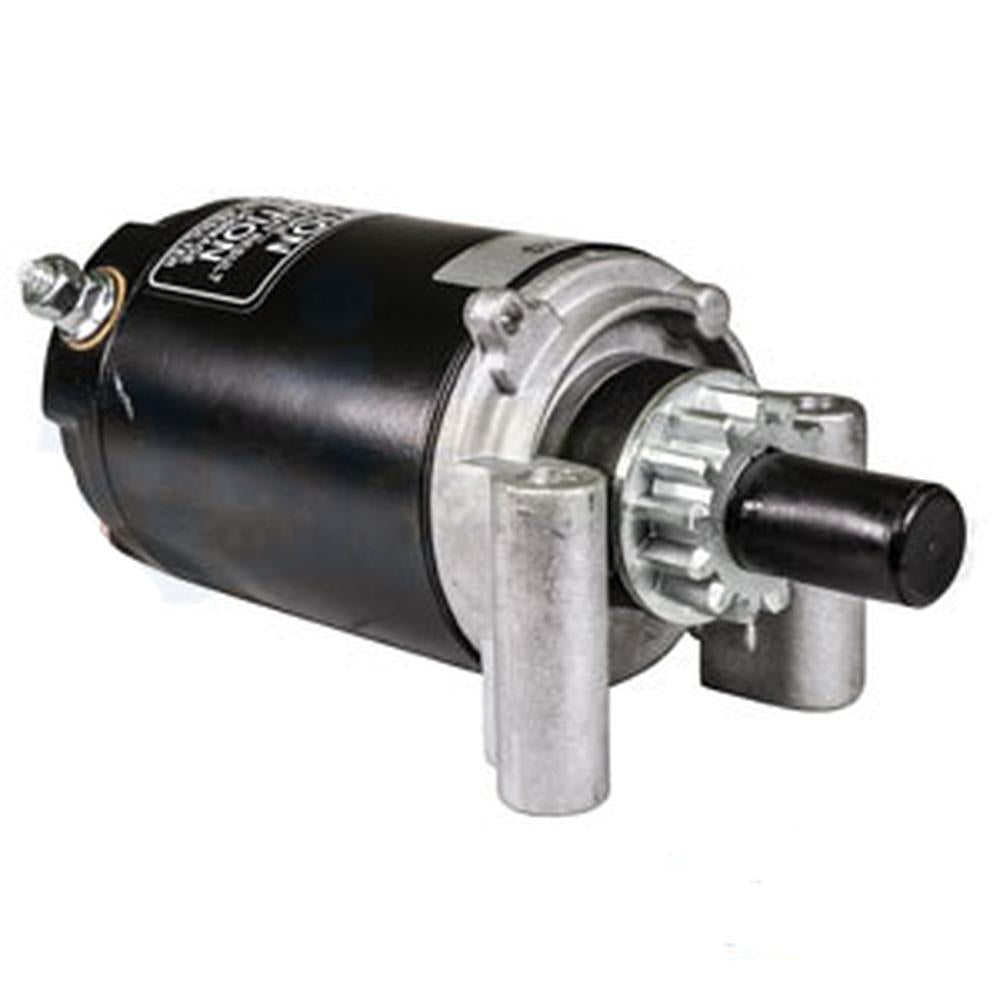

This aftermarket replacement electric starter fits Kohler Command and Command Pro single-cylinder engines in the 9 to 15 HP range. It is a direct replacement for Kohler OEM starter number 12-098-08 and its variants, designed for use on lawn tractors, zero-turn mowers, and compact utility equipment powered by Kohler CH14, CV11, CV12.5, CV13, CV14, CV15, CV16, CV460S, and CV490S engines.

Specifications

• Voltage: 12V
• Rotation: CCW (counter-clockwise)
• Teeth: 13-tooth pinion gear
• Type: PMDD (Permanent Magnet Direct Drive)
• Length: approx. 7-1/4 in.
• Housing O.D.: approx. 3-3/4 in.
• Terminal: Side terminal design

Compatible Engine Models

Kohler Command / Command Pro Single-Cylinder: CH14, CV11, CV12.5, CV13, CV14, CV15, CV15S, CV16, CV16S, CV430, CV460S, CV490S (9 HP - 15 HP)

Compatible Equipment Models

Fits John Deere: L110, LT133, LT150, LT155, LT160, LTR155, LTR166, S2048, SST15, STX30, STX38, STX46

Fits Cub Cadet: Z42 (15HP, 1997-1999), 1515 (15HP, 2002), 1517 (17HP, 2002), LT1018LE (18HP, 2004)

Replaces Part Number(s):

A-12-098-08-AI, 12-098-08, 12-098-08-S, 1209808, 1209808S, 12-098-13, 12-098-13-S, 1209813, 1209813S, 12-098-15, 12-098-15-S, 1209815, 1209815S, 12-098-20, 12-098-20-S, 1209820, 1209820S, 12-098-22, 12-098-22-S, 1209822, 1209822S, 12-098-04, 12-098-02, 12-098-05

Aftermarket Interchange Numbers

Fits John Deere: AM122435, AM132235; United Technologies: 5225040-M030SM, 5278340-M030SM, 5666940-M030SM; Lester: 5770; Oregon: 33-715

New aftermarket replacement part - not remanufactured, not used.
