1 8

A-12-098-03-AI N/A

A-12-098-03-AI N/A

£76.00 GBP
£76.00 GBP
Sale Sold out
Shipping calculated at checkout.

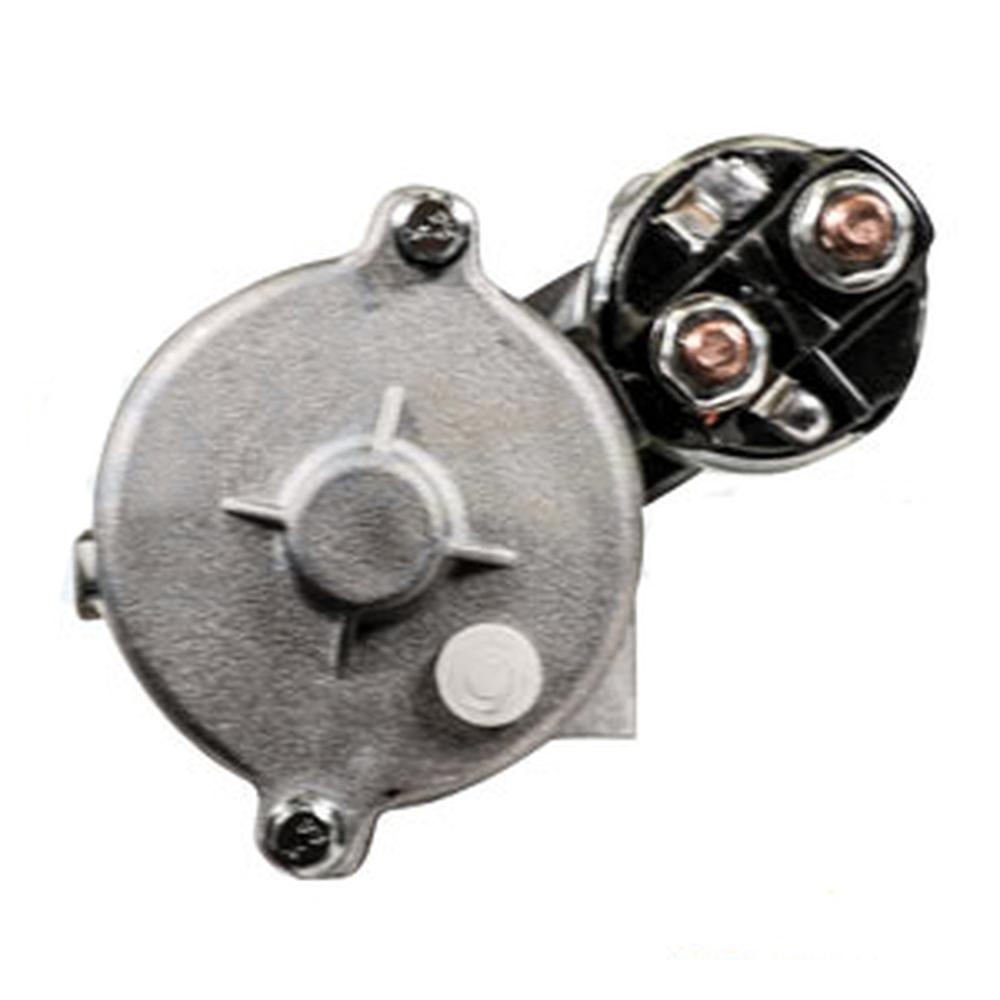

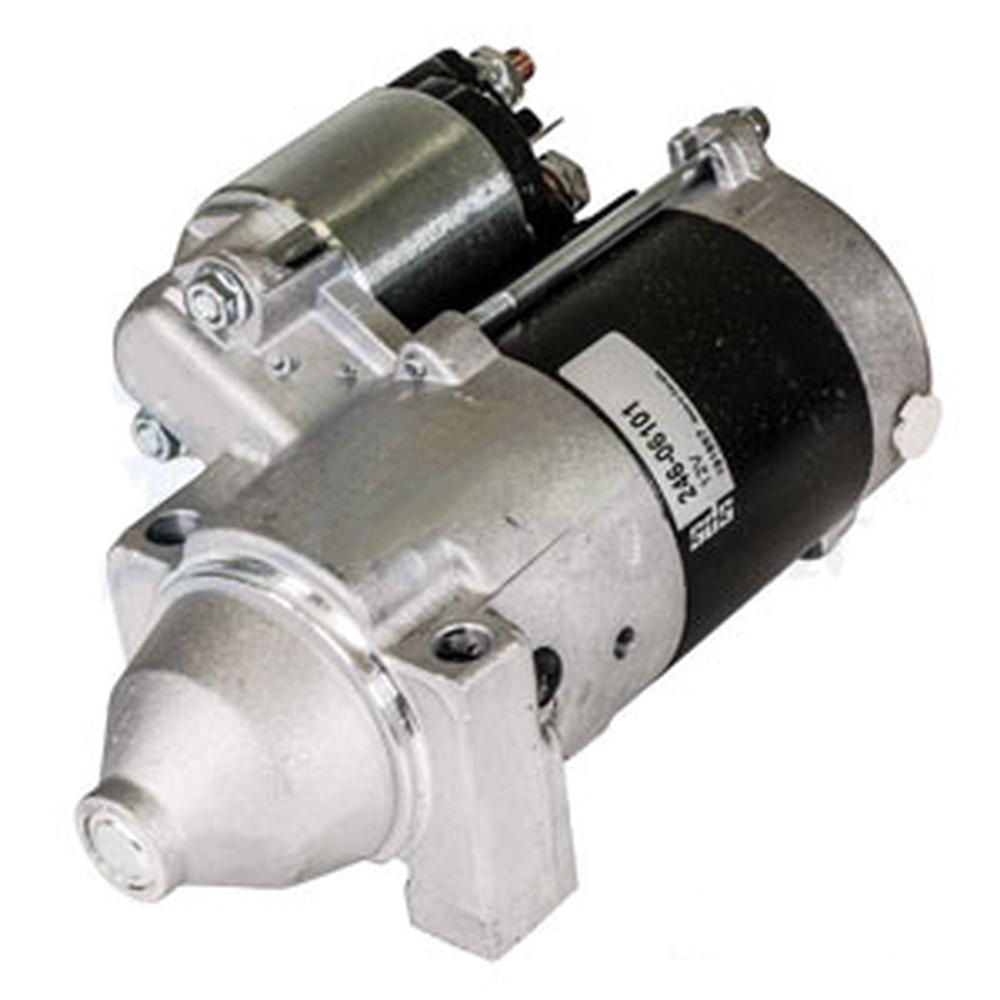

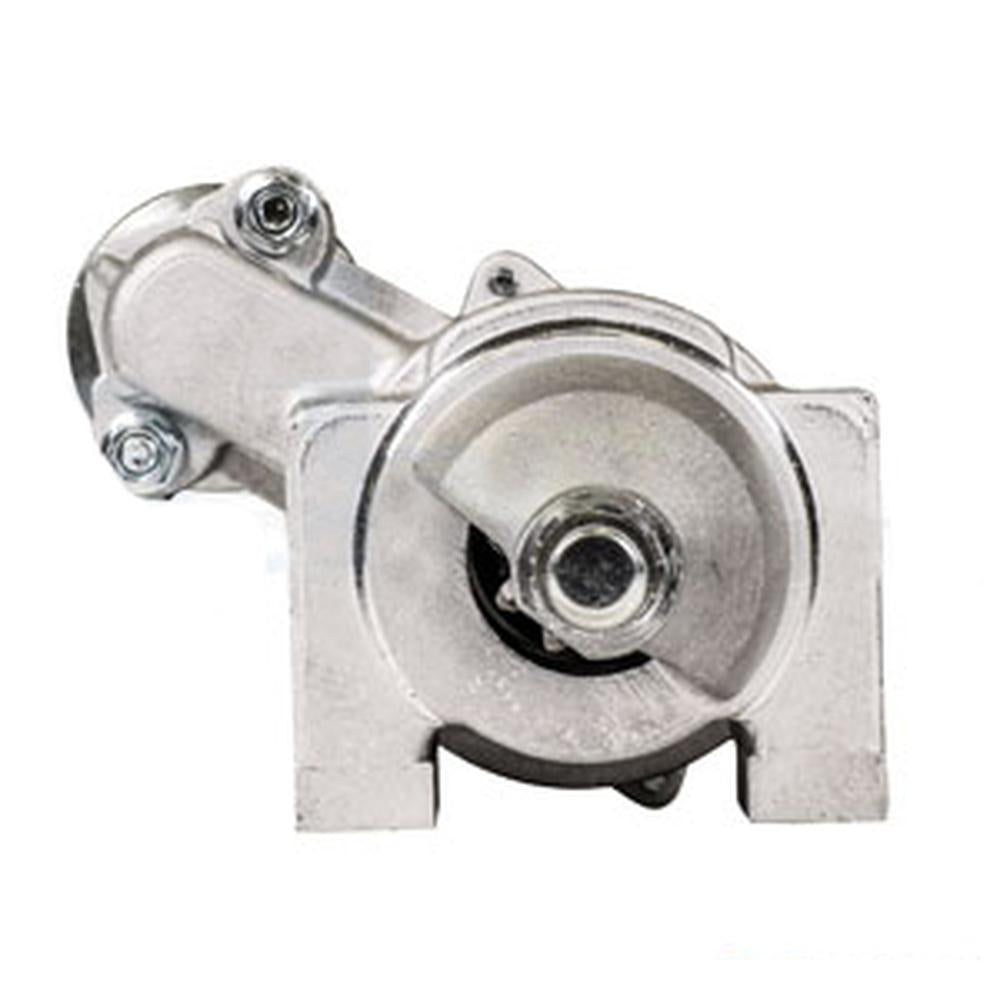

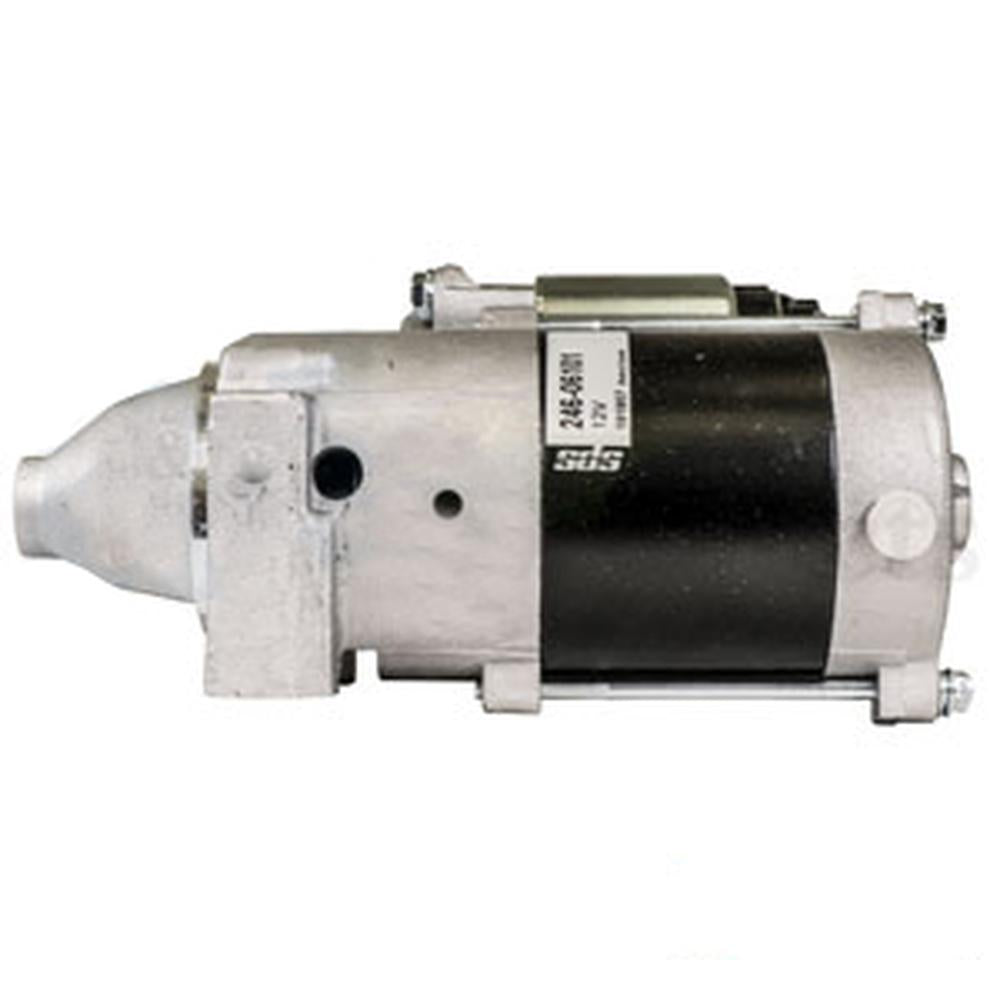

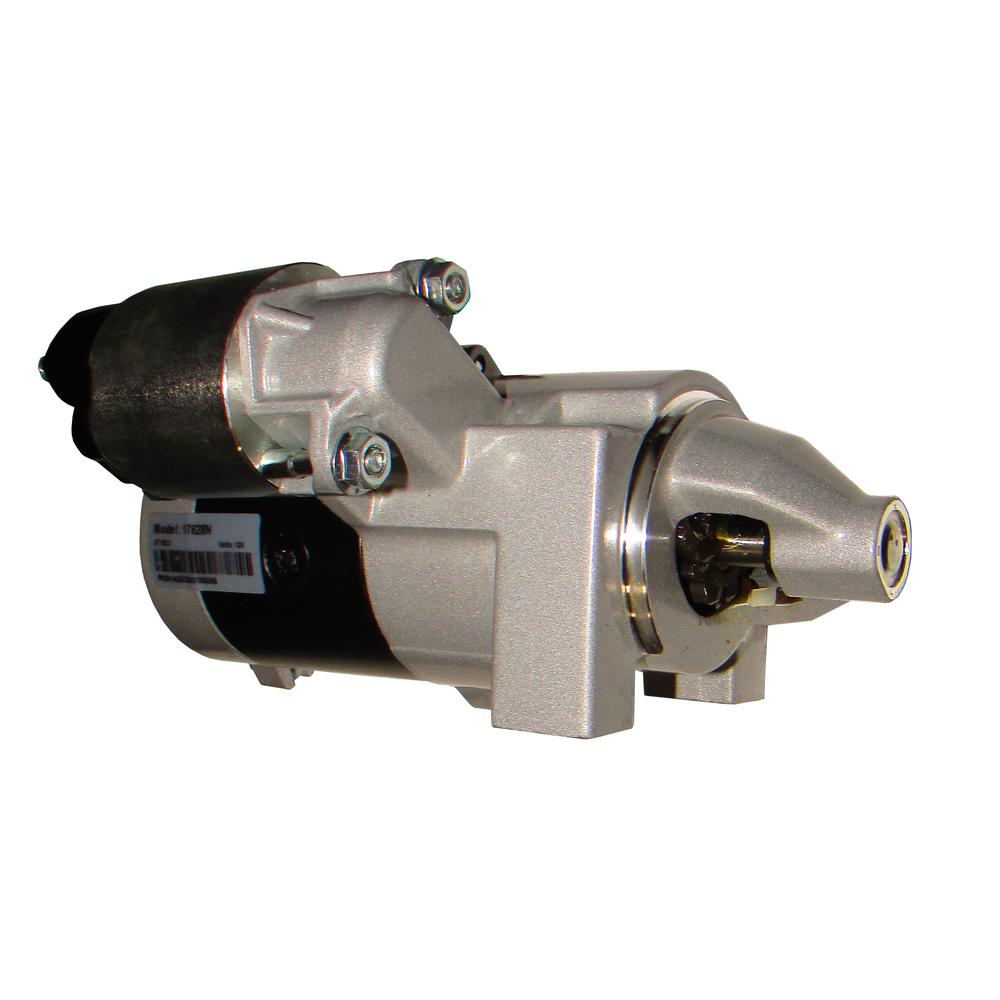

One New Aftermarket Replacement Starter for Kohler, Fits John Deere, Fits Toro, Fits Cub Cadet, and Compatible Engines

This 12-volt direct-drive (DD) starter motor is a direct replacement for Kohler Command CH and CV series engines as well as a wide range of Fits John Deere, Fits Toro, Fits Cub Cadet, and other lawn and garden equipment. The starter features counterclockwise (CCW) rotation and a 9-tooth drive gear, fitting the flywheel ring gear on Kohler CH12.5 through CH22 and CV12.5 through CV22 engines commonly found in riding mowers, zero-turn mowers, lawn tractors, and fairway mowers.

Specifications

  • Voltage: 12V
  • Power: 0.6kW / 0.8HP
  • Rotation: CCW (Counterclockwise)
  • Starter Type: DD (Direct Drive)
  • Number of Teeth: 9
  • Gear OD: 1.134 in / 28.8mm
  • Mounting Ear 1 Hole: 8.5mm Unthreaded
  • Mounting Ear 2 Hole: 8.5mm Unthreaded
  • Condition: New

Compatible Models

Kohler Engines: CH12.5, CH14, CH18, CH20, CH22, CV12.5, K161, K181, 14 HP

Fits John Deere Riding Mowers and Lawn Tractors: L120, L130, LS120, LX173, LX255, LX266, STX30, STX38, GT18, GT20, GT20A, GT22, GT22A, GT225, G100, G110

Fits John Deere Front-Mount and Zero-Turn Mowers: F620, F680, F687, M653, M655, M665, Z48, Z54, Z118Z, Z150Z, Z153Z, Z222Z, Z252Z, Z253, Z253Z, Z255, Z255Z, Z256, Z286E, Z320, Z320Z, Z325, Z325Z, Z350, Z355 Z Master, Z510A ZTRAK, Z520A ZTRAK, Z710A ZTRAK, Z720A ZTRAK, Z915B ZTRAK, Z925M EFI ZTRAK, Z925M EFI FLEX FUEL, Z930M EFI ZTRAK, Z945M EFI ZTRAK, Z955M EFI ZTRAK, Z955R EFI ZTRAK

Fits John Deere Commercial/Specialty Mowers: 2084, 2130, 2150, 2155, 2166, 2176, 2185, 2186, 2206, 2284, 2354HV, 2400 PRECISIONCUT, 2554HV, 2700 PRECISIONCUT, 2700 E-CUT HYBRID, 3184, 3186, 3206, 3225, 3235, 3654, 3660, 365, Multi Pro 1200

Fits Toro: Dingo 222, Dingo 322, Dingo TX-420, Groundsmaster 120, 550, 1250

Fits Cub Cadet: 1863, 1864, 1948GV, 1948HV, 2148HV, 518xi, 520xi, 522xi

Replaces Part Number(s):

AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, SE501849-A, UC16212, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S

Aftermarket Interchange Numbers

246-06101, A-246-06101, 128000-7480, 228000-2640, 228000-7990, 435-331, 435-331-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

2354HV, 1863, L120, 518xi, Z955M EFI ZTRAK, Z355 Z Master, Z710A ZTRAK, LX173, 14 HP, 2284, STX38, Z252Z, LX266, 2186, 2700 PRECISIONCUT, Z930M EFI ZTRAK, 2084, 2176, 3184, Groundsmaster 120, M665, Z253, 2135, 2700 E-CUT HYBRID, 1250, F680, Z320Z, L130, Z925M EFI ZTRAK, Z320, 3654, Z150Z, Z325, Dingo 322, GT18, GT20A, G110, Z350, CH12.5, LS120, 550, 1948HV, 365, Z255Z, Z520A ZTRAK, CH14, 3225, Dingo TX-420, STX30, 1864, Z118Z, 2155, Z222Z, Z253Z, 2185, K181, M655, Z153Z, Z945M EFI ZTRAK, 522xi, 2148HV, 3186, Z256, CH20, Z915B ZTRAK, LX255, CV12.5, GT225, Z510A ZTRAK, G100, M653, 2206, GT22, 3235, 3660, Dingo 222, CH18, 520xi, K161, Z925M EFI FLEX FUEL, CH22, 2150, Z720A ZTRAK, 3206, GT22A, Z54, GT20, F620, Z255, Z286E, 1948GV, F687, 2166, Z955R EFI ZTRAK, Multi Pro 1200, 2130, Z325Z, Z48, 2554HV

Additional Information:

Voltage: 12 Power: 0.6kW / 0.8HP Condition: New Rotation: CCW Starter Type: DD Number of Teeth: 9 Gear OD: 1.134in / 28.8mm Mtg Ear 1 Hole: 8.5mm Unthreaded Mtg Ear 2 Hole: 8.5mm Unthreaded

Reference Numbers:

AM107631, AM108390, AM124993, AM131296, AM132702, MIA11473, MIA13172, SE501849, UC16212, 12 098 01, 12 098 03-S, 12 435 03-S, 24 098 01, 24 098 01-S, 25 098 08, 25 098 08-S, 25 098 09, 25 098 09-S, 25 098 11, 25 098 11-S, 25 098 20-S, 25 098 21-S, 25 098 24, 25 098 24-S, KH-25 098 09, KH-25 098 09-S, KH-25 098 21-S, KH-25 098 24-S, KH2509809, KH-25-098-09, KH2509809S, KH-25-098-09-S, KH2509821S, KH-25-098-21-S, KH2509824S, KH-25-098-24-S, KH-24-098-01, KH-25-098-11-S, KH-25-098-09-S
