A-11115WD-AI Bearing (LM501310)

Name: A-11115WD-AI Bearing (LM501310)
SKU: A-11115WD-AI
Price: 26.0 USD
Availability: InStock

A-11115WD-AI Bearing (LM501310)

£26.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

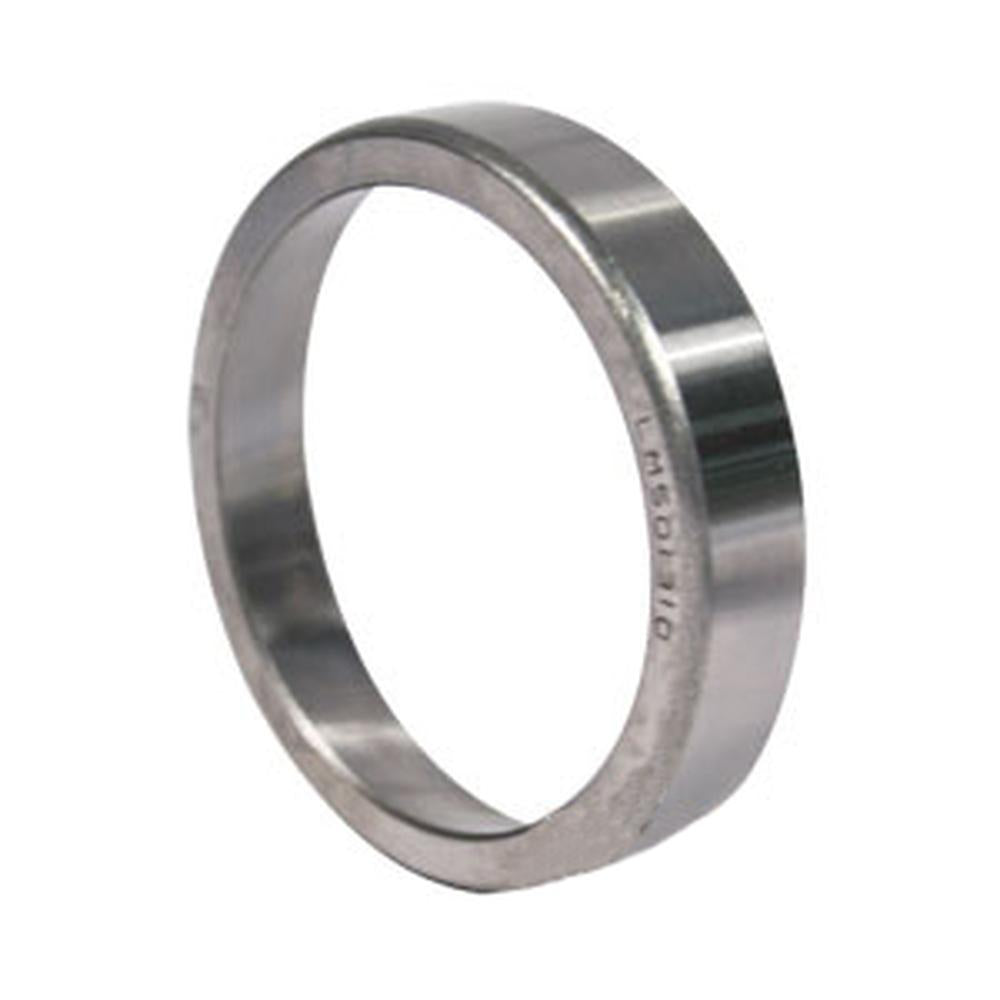

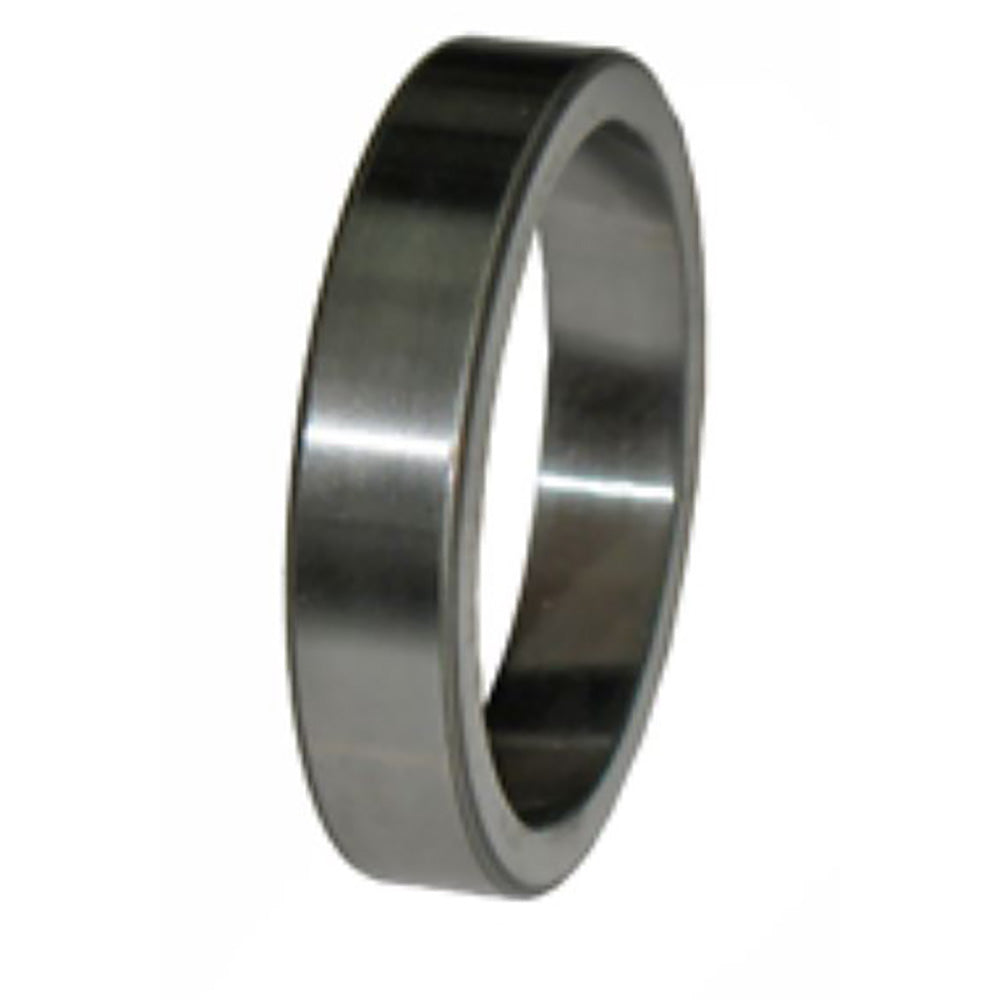

One New Aftermarket Replacement Tapered Roller Bearing Cup (LM501310) Fits Case/International Harvester, Fits John Deere, Fits Massey Ferguson, Fits Ford/New Holland, and More

This tapered roller bearing cup (outer ring/race) carries industry number LM501310 and pairs with cone LM501349 to form a complete SET45 tapered roller bearing assembly. The LM501310 cup is a single, non-flanged cup designed to handle both radial and axial loads in wheel hubs, axles, and drive train applications across a wide range of agricultural equipment including tractors, combines, cotton pickers, round balers, mower conditioners, forage harvesters, and rotary cutters.

Specifications

Type: Tapered Roller Bearing Cup (Outer Ring/Race)
Inside (Bore) Diameter: 1.625 in (41.275 mm)
Outside Diameter: 2.891 in (73.431 mm)
Cup Width: 0.580 in (14.732 mm)
Fillet Radius: 0.03 in
Flange Type: Non-Flanged
Compatible Cone: LM501349
Industry Set Number: SET45 / A35
ABEC/ABMA Precision Rating: Class 2

Compatible Models

Fits Case / Fits Case IH: 1207, 1209, 1320, 1326, 1327, 1460, 1480, 1482, 1550, 1600, 1640, 1655, 1660, 1666, 1680, 1682, 1688, 1750, 1822, 1844, 1850, 2022, 2044, 2140, 2155, 2166, 2188, 2250, 2270, 2280, 2344, 2350, 2355, 2355N, 2366, 2377, 2388, 2440, 2510, 2520, 2540, 2550, 2555, 2577, 2588, 2640, 2750, 2755, 2855N, 303, 300, 410, 403, 420, 468, 468S, 503, 510, 540, 550, 568, 604J, 605J, 6602, 660, 670, 680B, 715, 750, 760, 770, 815, 850, 855, 860, 865, 880, 914, 915, CPX420, CPX610, CPX620, CTS, CTS II, MODULE EXPRESS 625

Fits John Deere: 2040, 2280, 2350, 2440, 2510, 2520, 2550, 2555, 2640, 2750, 2755, 2855N, 3020, 3120, 3230, 3300, 3320, 3520, 3600, 3720, 4050, 4100, 4120, 4130, 4130NO, 4200, 4210, 4250, 4255, 4300, 4310, 4320, 4400, 4410, 4420, 4450, 4455, 4500, 4510, 4520, 4600, 4610, 4610N, 4630, 4630N, 4630NO, 4630O, 4700, 4710, 4720, 5000, 5100, 5110, 5200, 5400, 5440, 5460, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 550, 550C, 6410, 6600, 6610, 6620, 6640, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7250, 7300, 7350, 7400, 7450, 7455, 7460, 7500, 7550, 7600, 7610, 7700, 7710, 7720, 7740, 7750, 7800, 7840, 7850, 7950, 8820, 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9560STS, 9570STS, 9600, 9610, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS, 9935, 9960, 9965, 9976, 9986, 9996, L65

Fits Massey Ferguson: 205, 300, 303, 410, 550, 660, 760, 850, 860, 865, 880

Fits Ford / Fits Ford-Fits New Holland: 2355N, 3930, 3930N, 3930NO, 4100, 4200, 4210, 4300, 4310, 4410, 4500, 4600, 4610, 4610N, 4630, 4700, 4710, 4720, 5000, 5100, 5110, 5200, 5400, 5600, 5610, 5640, 5700, 5720, 5730, 5820, 5830, 5900, 6410, 6600, 6610, 6640, 6650, 6700, 6710, 6750, 6810, 6850, 6910, 6950, 7000, 7100, 7200, 7400, 7500, 7600, 7610, 7700, 7710, 7740, 7800, 7840, 7850

White / Oliver: SUPER 55, 55-66, 65-46, 65-56, 65-90, 65-93, 60-66, 60-76F, 60-90, 70-90, 80-66, 2-44, 77, 82, 84, 88, 92 SUPER

Challenger: MX80C, MX90C

Fiat: 300, 420, 550, 620, 660, 670, 670B, 680B, 750, 850, 880

Vermeer: 1715037 (see Replaces section)

Fits Woods: (see models list)

Replaces Part Number(s):

11115WD, 663558R1, 663556R91, 665097R91, 671074R91, 3142104R91, 74254699, 67371, 80067371, 80340635, 81803417, 81854761, 83928204, 83961665, 8187236383961665, WAA4220A, WAA4222A, W102847A, 831729M1, JD8071, JD8237, 1715037

Aftermarket Interchange Numbers

LM501349/LM501310 (set), SET45, A35, S35, SET35, 4T-LM501310, BR45, VKHB 2153

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

82, 7460, 9660STS, 4130, 65-90, 4710, 6650, 4410, CPX620, 5640, MX90C, 9560STS, 6850, 7100, 860, 5730, 2250, 2044, 4200, 9860STS, 6622, 77, 7720, 2-44, 7710, 9935, 3930, 503, 2588, 7840, 7600, 760, 7300, 680B, 4610N, 70-90, 2350, 2755, 6710, 9500SH, 1600, 770, 7550, 5900, 2388, 7700, 1682, 5720, 9400, 2355N, 4130NO, 4700, 670, 4420, 855, 5110, 1660, 914, 9770STS, 3930N, 604J, 403, 1655, 9996, 5100, 410, 2155, 4520, 72, 3520, 715, 5460, 4300, CPX420, 9570STS, 4610, 9870STS, 2166, 84, 1555, 3720, 5700, 4450, 9550SH, 65-46, 65-56, 60-90, 9450, 1482, 420, 2550, 9670STS, 5440, 5200, 6750, CTS II, 2440, 1680, 9600, 9550, 510, 750, 9660, 2188, 9650STS, 915, 4255, 2355, 7750, 2555, 1688, 2280, 4510, 6620, 2577, 1550, 1327, 80-66, 2510, 2270, 2055, 1640, 4400, 6410, 3120, 3020, 670B, 2140, 865, 303, 4500, 1326, 6700, 7250, 9965, CTS, 4630O, 9510, 6600, 6610, 7455, 2750, 2344, CPX610, 605J, 3930NO, 5830, 4455, 1844, 2377, 660B, 9560SH, 7850, 5820, 550, 300, 2640, 9660CTS, 4630NO, 205, 9976, 1822, 3600, 5400, 4120, 60-76F, 3230, 1850, 7200, 3203, 4250, 7800, 1209, 9986, 9410, 4050, 9510SH, 88, 4310, 4210, 1750, 550C, 6640, 65-93, 7610, 4630, 7740, 1480, 9750STS, 468S, 7950, 60-66, 1666, 7450, 4320, 3320, 7350, 7000, 5600, 9960, 2366, 9500, 4100, 1320, L65, 6910, 660, 2022, 7400, 815, SUPER 55, 55-66, 6810, 9560, 568, 2520, MX80C, 1207, 468, MODULE EXPRESS 625, 2040, 1460, 9650CTS, 5610, 5000, 7722 HILLSIDE, 8820, 6950, 4720, 4600, 2855N, 7500, 9760STS, 9650, 3300, 620, 6602, 9610, 540, 850, 880, 92 SUPER, 4630N

Additional Information:

Outside Diameter 2.891" Radius .03" Width .580"

Reference Numbers:

1715037, W102847A, 11115WD, 663558R1, 3142104R91, 663556R91, 663558R1, 665097R91, 671074R91, JD8071, JD8237, 74254699, 831729M1, 67371, 80067371, 80340635, 81803417, 81854761, 8187236383961665, 83928204, 83961665, WAA4220A, WAA4222A
