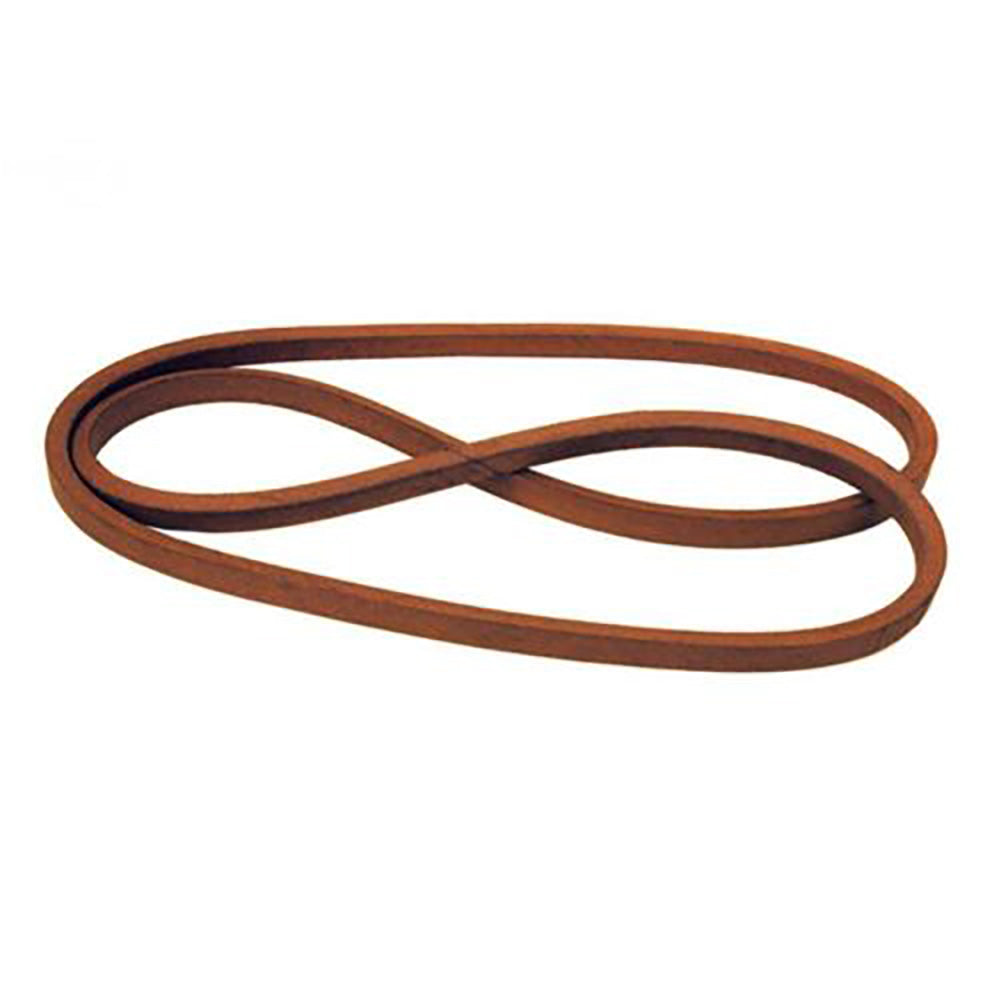

A-109-3388-AI Belt, Drive

Name: A-109-3388-AI Belt, Drive
SKU: A-109-3388-AI
Price: 13.0 USD
Availability: InStock

A-109-3388-AI Belt, Drive

£13.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Pump Drive Belt for Exmark and Toro Zero-Turn Mowers

This aftermarket replacement pump drive belt (hydraulic pump drive) fits a wide range of Exmark Lazer Z and Toro Titan and Z Master zero-turn lawn mowers. It is a wrapped, covered V-belt used to drive the hydraulic pump on the mower's drive system. Exmark Next Lazer Z and Lazer Z AS air-cooled engine models require Serial No. 790,000 and higher for this belt to apply -- verify your serial number before ordering.

Specifications

Type: Wrapped/Covered V-Belt
Width: 1/2"
Length: 75.51"
Thickness: 0.40"
Material: Polyester Cord

Compatible Models

Exmark Lazer Z AS: LZAS20KC484, LZAS22KA484, LZAS22KA484CA, LZAS23KC524, LZAS25BV484, LZAS25KC604, LZAS26LKA604, LZAS27KC524, LZAS27KC524CA, LZAS27KC604, LZAS27KC604CA, LZAS29KA724, LZAS29KA724LP, LZAS29KC604LP

Exmark Lazer Z E-Series: LZE730EKC604, LZE730GKA60RA1, LZE730GKA604A3, LZE730KA604, LZE730KA604SS, LZE740EKC60400, LZE740KCE604L, LZE742GKC60400, LZE742GKC60403, LZE742GKC604A3, LZE742KC604, LZE749EKC72RA1, LZE801GKA60RA1, LZE801GKA604A3, LZE801GKA604B1, LZE801GKA72RA1, LZE801GKA724A3

Exmark Lazer Z S-Series: LZS22KA484, LZS22KA484CA, LZS23KC524, LZS25EKC604, LZS27KC604, LZS27KC604CA, LZS27KC604SS, LZS29EKC724, LZS29PKA604, LZS29PKA606, LZS29PKA724, LZS651CKA484A2, LZS651KA484CA, LZS680KC524, LZS691CKA52400, LZS691KA524, LZS691KA524CA, LZS730EKC604, LZS730EKC604RD, LZS730EKC604RS, LZS740AKC524A2, LZS740KC524, LZS740KC604, LZS740KC604CA, LZS740PHC60400, LZS740PKA724, LZS740PKC524, LZS740PKC52400, LZS740PKC604, LZS740PKC60400, LZS740PKC72400, LZS749AKC604A1, LZS749EKC604, LZS749EKC604A1, LZS749EKC604SS, LZS749EKC72RD, LZS749EKC72RS, LZS749EKC724, LZS801GKA524A2, LZS801GKA52400, LZS801GKA60400, LZS801GKA604A1, LZS801GKA724A1, LZS801KA524, LZS801KA604, LZS801KA604SS, LZS801KA724, LZS801PKA604, LZS801PKA724

Exmark Lazer Z X-Series: LZX23KC486, LZX24KA526, LZX24KA526CA, LZX27KC526, LZX27KC606, LZX29EKC606, LZX29EKC606CA, LZX29EKC606SS, LZX29KA606, LZX29KA606SS, LZX34KC606, LZX34KC606SS, LZX34KC726, LZX34KC726SS, LZX38KC606, LZX38KC606CA, LZX38KC606SS, LZX38KC726, LZX38KC726CA, LZX38KC726SS, LZX680KC486, LZX740EKC526, LZX740EKC526T0, LZX740EKC606, LZX740KC526, LZX740KC606, LZX740KC606CA, LZX801GKA606B1, LZX801GKA60600, LZX921GKA60600, LZX921GKA72600, LZX921KA606, LZX921KA726, LZX940EKC60RT0, LZX940EKC60600, LZX940EKC606T0, LZX940EKC72RT0, LZX980EKC72600, LZX980EKC726T0, LZX980KC606, LZX980KC726

Exmark Lazer Z Z-Series: LZZ23KA526, LZZ23KC486, LZZ23KC526, LZZ23KC526CA, LZZ26KC606, LZZ27KC526, LZZ27KC526CA, LZZ27KC606, LZZ27KC606CA, LZZ29KA606, LZZ29KA606LP, LZZ29KCE606, LZZ34KA726, LZZ34KC606

Exmark Lazer Z (general): LAZER Z, LAZER Z ADVANTAGE X, LAZER Z LZ-LP, LAZER Z X, LAZER Z AS

Toro Titan: 74812 Z4800 Titan, 74813 Z4800 Titan, 74814 Z5200 Titan, 74815 Z5200 Titan, 74816 Z4800 Titan, 74818 Z5200 Titan

Toro Z Master G3: 74901 Z Master G3, 74903 Z Master G3, 74915 Z-Master G3, 74921 Z Master G3, 74923 Z G3, 74923TE Z G3, 74925TE Z G3, 74935 Z G3, 74937 Z G3, 74941CP Z G3, 74943CP Z G3, 74945CP Z G3, 74955CP Z G3, 74957CP Z G3, 74965CP Z G3, 74967CP Z G3; also fits Z Master G3 52", 60", and 72" Turbo Force deck models

Toro Z Master Professional: Z Master 5000 and 6000 Professional Series (48", 52", 60", 72" deck)

Replaces Part Number(s):

1093388SL, 1093388, 109-3388, 1093388DC, 230-0163, B11093388, 126-9835, 109-8069, CC12426

Aftermarket Interchange Numbers

Rotary 12426 (CC12426); Stens 265-163; also crosses to 115-9613 (Toro)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

LZX29KA606SS LAZER Z X, LZS801KA524 LAZER Z S, LZX921GKA60600 LAXER Z X, LZX23KC486 LAZER Z X, LZE730GKA60RA1 LAZER Z E, LZS801GKA60400 LAZER Z S, 74903 Z Mater G3, LZS801PKA604 LAZER Z S, LZAS22KA484 LAZER Z AS, LZS740PKC52400 LAZER Z S, LZAS23KC524 LAZER Z AS, LZX980KC606 LAZER Z X, 74812 Z4800 TITAN, LZE742KC604 LAZER Z E, LZZ23KC526CA LAZER Z Z, LZS801KA604SS LAZER Z S, LZS749EKC72RS LAZER Z S, LZAS25BV484 LAZER Z AS, LZX38KC606SS LAZER Z X, LZX801GKA606B1 LAZER Z X, LZS651KA484CA LAZER Z S, LZS25EKC604 LAZER Z S, LZX740EKC606 LAZER Z X, LZAS29KC604LP LAZER Z AS, 74957CP Z G3, LZS691KA524 LAZER Z S, LZX38KC726CA LAZER Z X, LZZ34KC606 LAZER Z Z, LZE801GKA604A3 LAZER Z E, LZAS20KC484 LAZER Z AS, LZE740KCE604L LAZER Z E, LZZ27KC606CA LAZER Z Z, LZX34KC606 LAZER Z X, LAZER Z, LZS740PKA724 LAZER Z S, LZZ23KC486 LAZER Z Z, LZZ26KC606 LAZER Z Z, LZS27KC604CA LAZER Z S, 74818 Z5200 TITAN, LZAS26LKA604 LAZER Z AS, LZE749EKC72RA1 LAZER Z E, 74937 Z G3, LZAS29KA724 LAZER Z AS, LZS801PKA724 LAZER Z S, LZX940EKC60RT0 LAZER Z X, 74943CP Z G3, LZE740EKC60400 LAZER Z E, LZX740KC526 LAZER Z X, 74815 Z5200 TITAN, LZS29PKA606 LAZER Z S, LZS730EKC604RS LAZER Z S, 74935 Z G3, LZS691KA524CA LAZER Z S, LZZ34KA726 LAZER Z Z, LZX980KC726 LAZER Z X, LZAS27KC604 LAZER Z AS, 74901 Z Mater G3, LZS801GKA524A2 LAZER Z S, LZX740KC606 LAZER Z X, LZZ23KC526 LAZER Z Z, LZX29EKC606 LAZER Z X, LZZ23KA526 LAZER Z Z, LZZ27KC526CA LAZER Z Z, LZS23KC524 LAZER Z S, 74923 Z G3, LZAS27KC604CA LAZER Z AS, 74921 Z MASTER G3, LZX940EKC606T0 LAZER Z X, LZX27KC606 LAZER Z X, LZX34KC606SS LAZER Z X, LAZER Z ADVANTAGE X, LZX38KC606 LAZER Z X, LAZER Z X, LZS22KA484 LAZER Z S, LZAS27KC524CA LAZER Z AS, LZX740EKC526 LAZER Z X, LZS749EKC604SS LAZER Z S, LZS740KC524 LAZER Z S, LZX940EKC72RT0 LAZER Z X, LZX27KC526 LAZER Z X, LZE730EKC604 LAZER Z E, LZS749AKC604A1 LAZER Z S, LZX24KA526 LAZER Z X, LZAS29KA724LP LAZER Z AS, LZE742GKC60400 LAZER Z E, 74967CP Z G3, LZS801GKA604A1 LAZER Z S, 74941CP Z G3, LZAS27KC524 LAZER Z AS, LZS691CKA52400 LAZER Z S, LZS740PKC604 LAZER Z S, 74925TE Z G3, LZS740PKC524 LAZER Z S, LZX29KA606 LAZER Z X, LZS740KC604 LAZER Z S, LZS749EKC724 LAZER Z S, LZX740KC606CA LAZER Z X, LZE730KA604SS LAZER Z E, LZX921GKA72600 LAZER Z X, LAZER Z AS, LZX29EKC606CA LAZER Z X, LZS801GKA52400 LAZER Z S, 74813 Z4800 TITAN, LZZ29KCE606 LAZER Z Z, LAZER Z LZ-LP, LZX680KC486 LAZER Z X, LZX29EKC606SS LAZER Z S, LZE801GKA724A3 LAZER Z E, LZS29PKA604 LAZER Z S, 74955CP Z G3, LZX38KC726SS LAZER Z X, 74923TE Z G3, LZS740KC604CA LAZER Z S, LZX34KC726SS LAZER Z X, LZS740PKC60400 LAZER Z S, 74965CP Z G3, LZS29PKA724 LAZER Z S, LZZ27KC606 LAZER Z Z, LZS749EKC604 LAZER Z S, LZZ29KA606LP LAZER Z Z, LZS29KA724 LAZER Z S, 74915 Z-MASTER G3, LZX980EKC72600 LAZER Z X, LZS27KC604 LAZER Z S, LZE742GKC60403 LAZER Z E, 74945CP Z G3, 74816 Z4800 TITAN, LZS680KC524 LAZER Z S, LZX38KC606CA LAZER Z X, LZS24KA524CA LAZER Z S, LZAS25KC604 LAZER Z AS, LZX940EKC60600 LAZERZ X, LZS801KA524SS LAZER Z S, LZX980EKC726T0 LAZER Z X, LZE801GKA72RA1 LAZER Z E, LZE801GKA604B1 LAZER Z E, LZS749EKC72RD LAZER Z S, LZX38KC726 LAZER Z X, LZX24KA526CA LAZER Z X, 74814 Z5200 TITAN, LZX34KC726 LAZER Z X, LZS27KC604SS LAZER Z S, LZS801KA604 LAZER Z S, LZZ29KA606 LAZER Z Z, LZS651CKA484A2 LAZER Z S, LZX801GKA60600 LAZER Z X, LZS22KA484CA LAZER Z S, LZS801KA724 LAZER Z S, LZE742GKC604A3 LAZER Z E, LZS730EKC604RD LAZER Z S, LZS740PKC72400 LAZER Z S, LZS749EKC604A1 LAZER Z S, LZE730KA604 LAZER Z E, LZX921KA726 LAZER Z X, LZE730GKA604A3 LAZER Z E, LZS730EKC604 LAZER Z E, LZAS22KA484CA LAZER Z AS, LZX921KA606 LAZER Z X, LZS801GKA724A1 LAZER Z S, LZZ27KC526 LAZER Z Z, LZS29EKC724 LAZER Z S, LZE801GKA60RA1 LAZER Z E, LZS740AKC524A2 LAZER Z S, LZS740PHC60400 LAZER Z S, LZX740EKC526T0 LAZER Z X
