A-107717A1-AI Starter, Fits Delco

A-107717A1-AI Starter, Fits Delco

£373.00 GBP
£373.00 GBP
Sale Sold out
Shipping calculated at checkout.

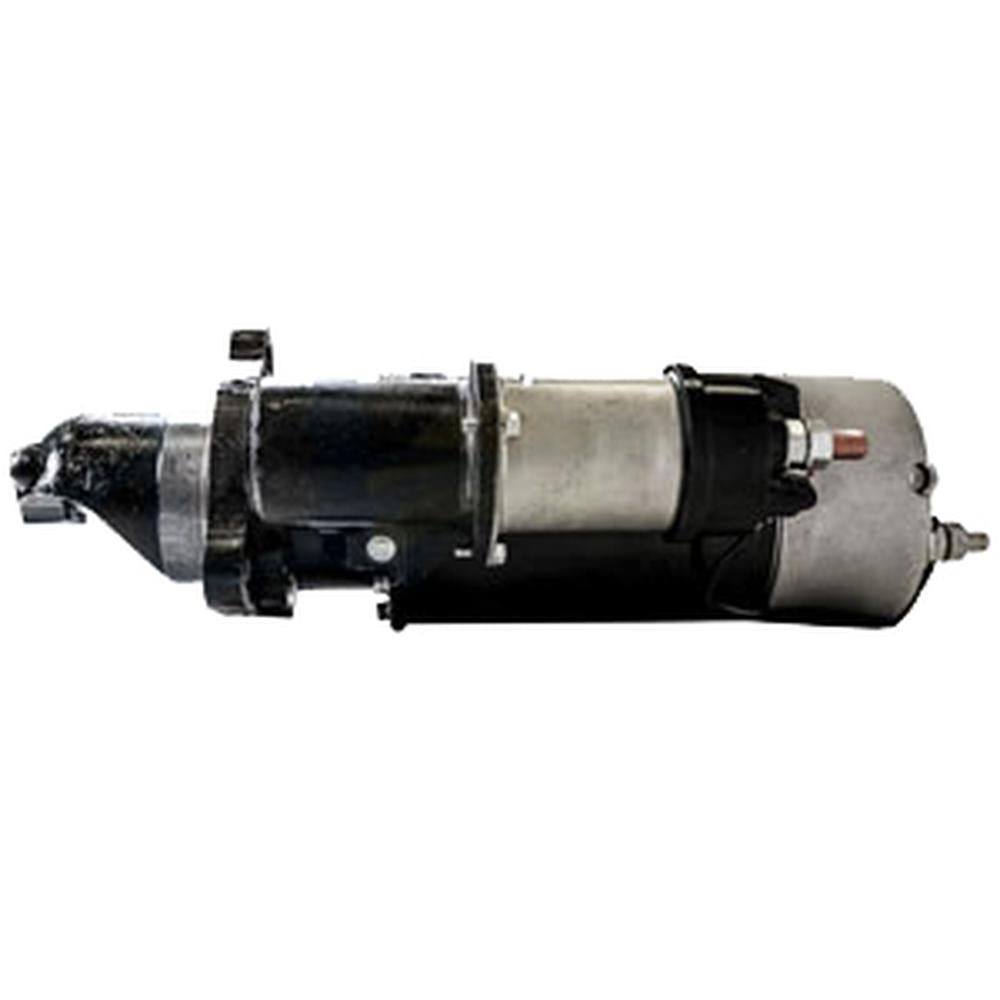

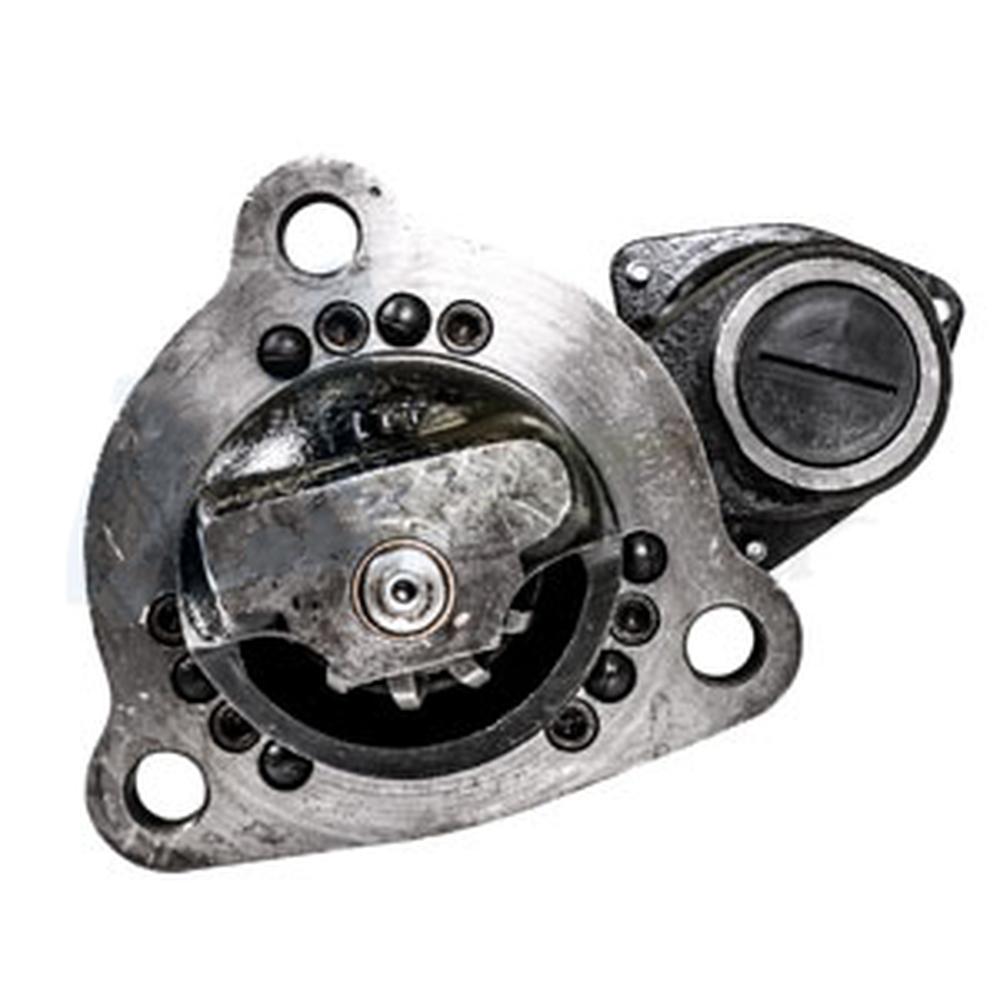

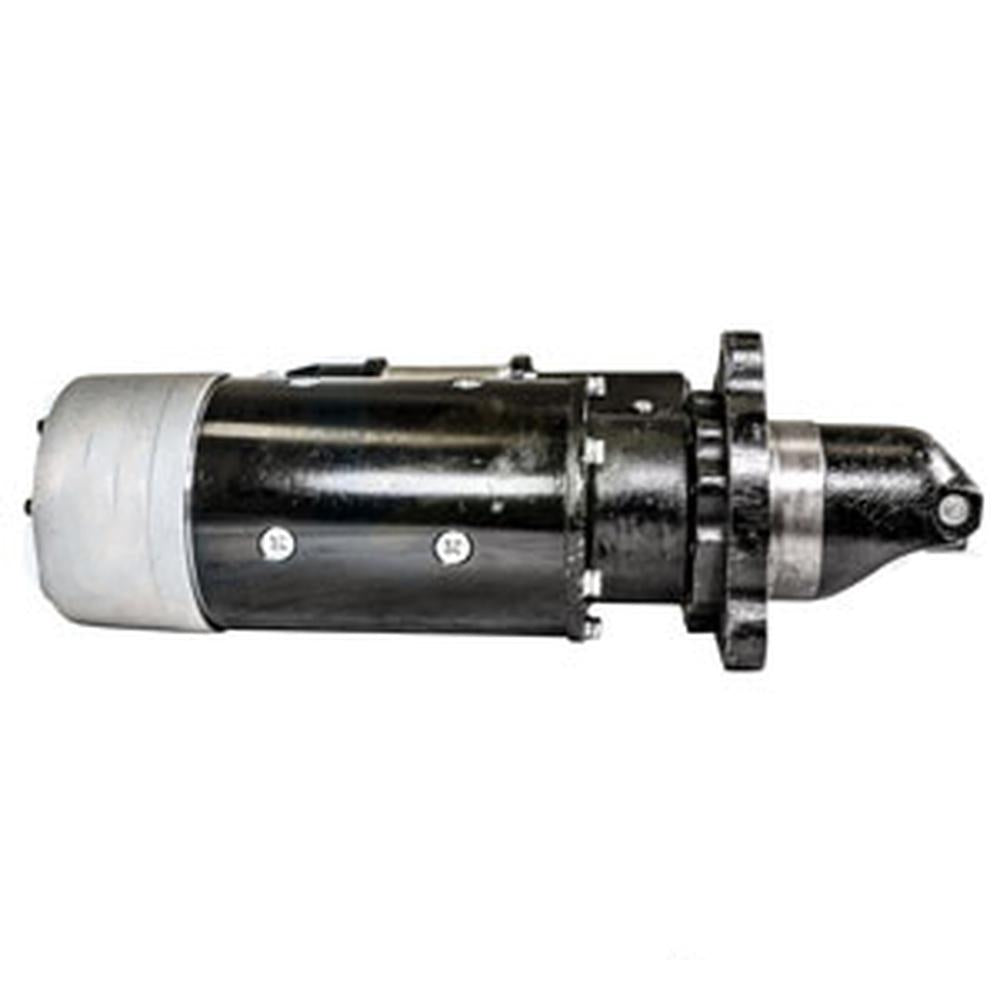

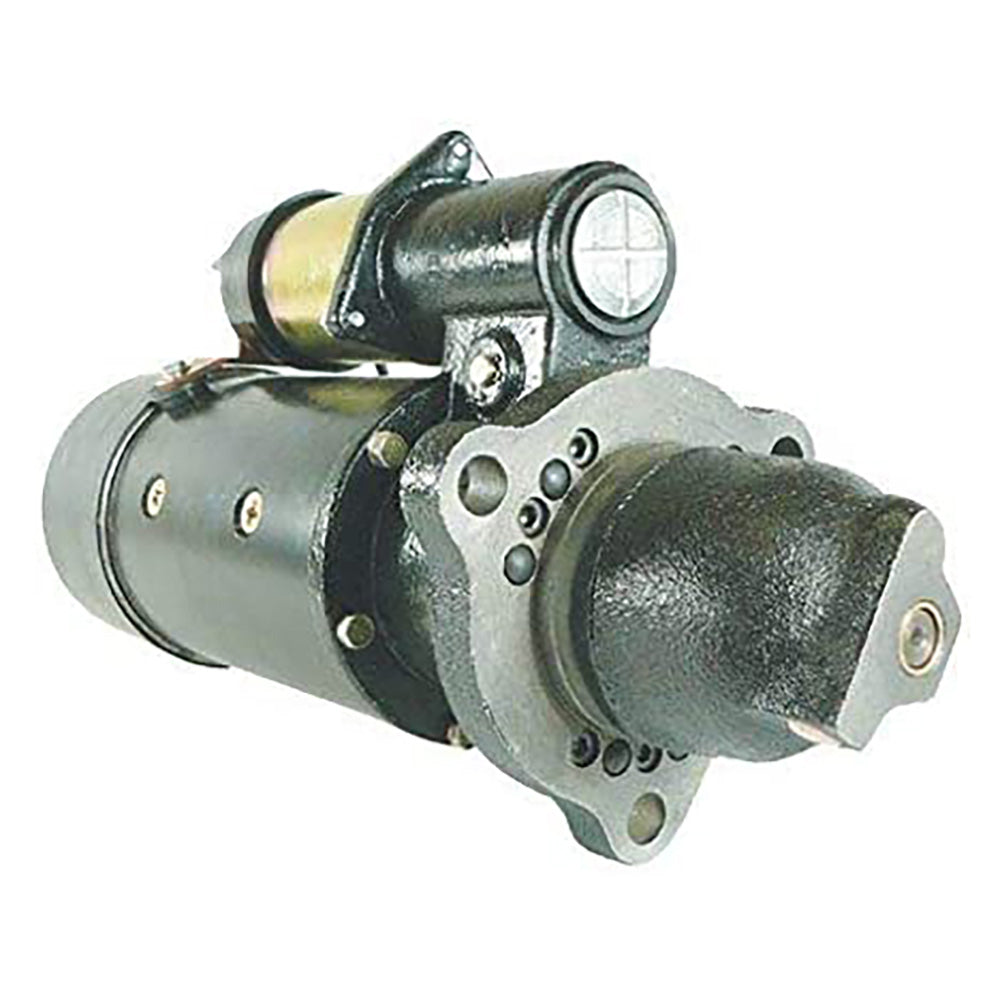

One New Aftermarket Replacement Starter for John Deere, Case/International Harvester, Caterpillar, Ford/New Holland, and Cummins Equipment

This 12-volt, 7.3 kW direct drive (DD) starter is a Delco 42MT-type replacement used across a wide range of agricultural tractors, forage harvesters, construction equipment, and Cummins diesel engines. It features an 11-tooth pinion gear, clockwise rotation, and overcrank protection, making it a heavy-duty solution for high-demand applications.

Specifications

  • Voltage: 12V
  • Power: 7.300 kW (9.789 HP)
  • Starter Type: Direct Drive (DD) - Delco 42MT
  • Rotation: Clockwise (CW)
  • Number of Teeth: 11
  • Gear OD: 2.201 in (55.900 mm)
  • Length: 19.728 in (501.100 mm)
  • Mount Hole ID 1 & 2: 0.660 in (Unthreaded)
  • Solenoid Position: 82
  • Overcrank Protection: Yes

Compatible Models

John Deere Tractors & Forage Harvesters: 5730, 5830, 6950, 8560, 8570, 8630, 8760, 8770, 8850, 8870, 8960, 8970

Case / Case IH Tractors: 530, 530CK, 531, 535, 540, 541, 545, 570, 580, 580C, 580CK, 630, 631, 632, 634, 640, 641, 642, 644, 9170, 9180, 9250, 9260, 9270, 9280, 9282, 9350, 9370, 9380, 9390, 9480, 9482, 9680, 9682, 9880, STX375, STX425, STX450

Steiger Tractors: BEARCAT, COUGAR, LION, PANTHER, TIGER, CR1225, CR1280, KR1225, KR1280, PT270, PT225, PTA251, PTA270, PTA280, PTA297, PTA310, PTA325

Caterpillar (Cat) Engines: C10, C12, C13, C15, C16, 3406, 3408, 3412

Ford / New Holland: W3, 2100, 2115

Cummins Engines: 6-855 DSI and related applications

Additional Models: 530, 536V, 856V, 876V, 936V, 946V, 1156, 1156V

Replaces Part Number(s):

RE53695, 107717A1, 263819C91, 20-2383T91, 20-2384T91, RE24305, RE41754, TY6728, 0R2191, 2N2761, 3E7863, 8C3652, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, 3604665R, 3604665RX, 6513, 6548

Aftermarket Interchange Numbers

SDR0010, 410-12222, 6245N, 6356N, 140855A2, SE501451

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

STX450, 1156, 3412, 3406, 9482, W3, 630, PTA270 Steiger, 9280, LION, 9682, 8850, PTA310 Steiger, 8570, 8760, 580C, 641, 9282, 5830, 9680, 9170, 9370, 3408, KR1225 Steiger, C10, TIGER, 570, 540, 2115, 876V, 6950, 9180, BEARCAT, C15, COUGAR, 9480, 580, 8630, 541, Agricultural Machinery, 8770, PT225 Steiger, 856V, 530, 9350, 8870, Construction Equipment, KR1280 Steiger, C12, PTA251 Steiger, 644, 631, 545, 634, CR1225 Steiger, 9250, 9380, 9880, 946V, 9260, C13, PTA325 Steiger, C16, 8960, 9270, 530CK, STX425, 1156V, 642, STX375, 9390, PT270 Steiger, 8970, 8560, PTA280 Steiger, 580CK, 936V, 5730, 640, PANTHER, PTA297 Steiger, 531, 535, 2100, 632, CR1280 Steiger

Additional Information:

Volt: 12 Power: 7.300 KW HP: 9.789 Rotation Direction: Clockwise Electric Starter Type: Direct Drive (Dd) Number of Teeth: 11 Gear OD: 2.201" Gear OD: 55.900 mm Solenoid Position: 82 Length: 19.728" Length: 501.100 mm Mount Hole ID 1: 0.660" Mount Hole 1 Type: Unthreaded Mount Hole ID 2: 0.660" Mount Hole 2 Type: Unthreaded Mount Hole 3 Type: Unthreaded Overcrank Protection: True Solenoid Position: 82

Reference Numbers:

107717A1, 20-2383T91, 20-2384T91, 263819C91, 3604665R, 3604665RX, 10461028, 10461055, 10461096, 10461183, 10461232, 10461511, 10461512, 10461778, 10462155, 10462196, 10478824, 10478964, 10479000, 10479030, 10479038, 10479062, 10479082, 10479151, 10479157, 10479194, 10479255, 10479266, 1990355, 1990391, 1990392, 1990393, 1990421, 1990426, 1990428, 1990449, 1990484, 1993776, 1993836, 323-864, 323-902, 63255VL, 8300035, RE24305, RE41754, RE53695, TY6728, 783833, 83977056, 89706425, 89804367, 9706425, 9804367, D8HZ11002C, E2HT11001DA, E3HZ11002A, E3HZ11002B, E3HZ11002C, E6HT11001CA, E6HZ11002C, E6HZ11002D, F0HT11001AA, F0HT11001AB, F0HZ11002A, F6HT11001AA, F6HT11001GA, F6HZ11002AA, F6HZ11002GA, V905, V90562, 6513, 6548, 0R2191, 2N2761, 3E7863, 8C3652
