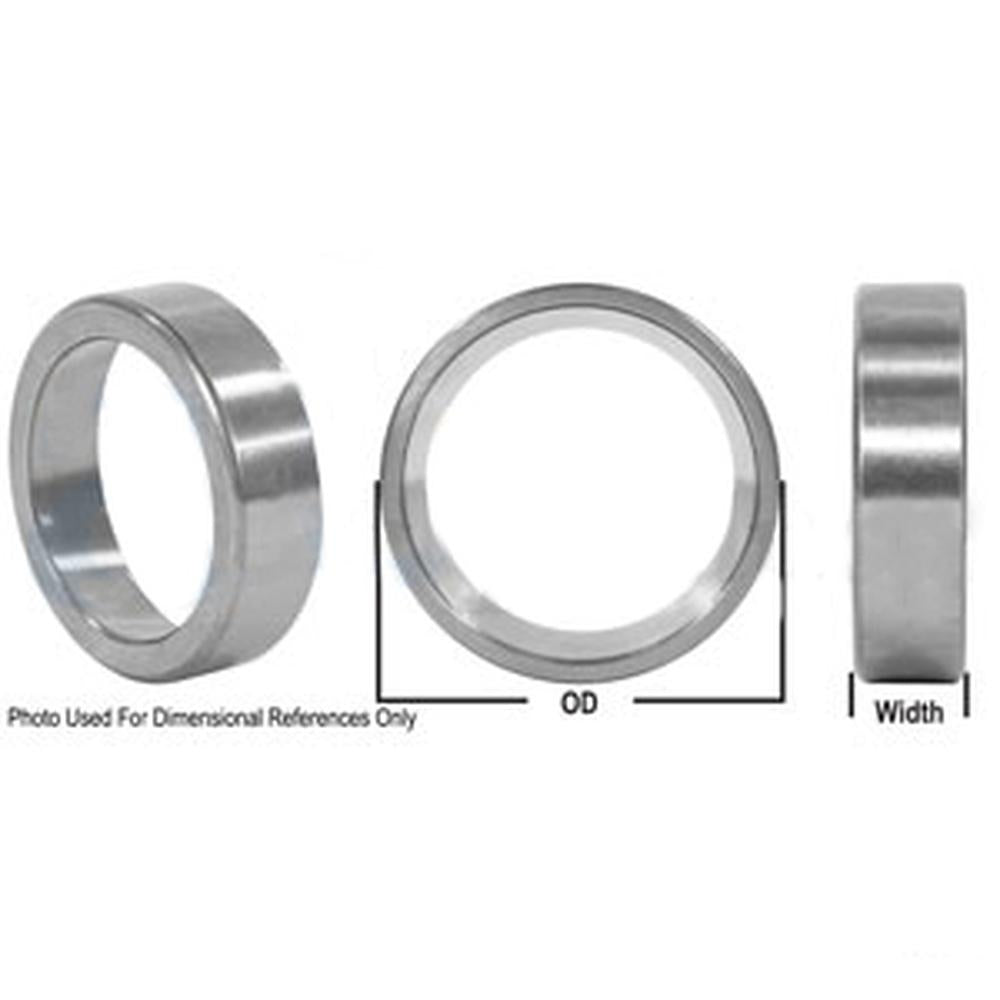

A-09196-P-AI Cup, Tapered Bearing
A-09196-P-AI Cup, Tapered Bearing
Couldn't load pickup availability
One New Aftermarket Replacement Cup, Tapered Roller Bearing - 09196 Series
This tapered roller bearing cup (outer ring) is a single-piece component that pairs with a matching cone assembly to form a complete tapered roller bearing. The open design allows for in-place lubrication and accurate preload adjustment. Suitable for high-load, moderate-speed applications across agricultural machinery, construction equipment, gearboxes, axle systems, and conveyor systems.
Specifications
- Outside Diameter: 1.938 in (49.26 mm)
- Width: 0.6875 in (17.46 mm)
- Max Housing Fillet Radius: 0.060 in
- Series: 09000 Single Cup
- Outside Diameter Profile: Straight
- Tolerance: Standard (AFBMA)
- Material: Carburized steel
- Net Weight: 0.201 lbs
- Load Capacity: 2,311 lbs
- Operating Temperature Range: -65 to 250 degrees F (-54 to 120 degrees C)
Compatible Applications
This is a widely used standard-dimension bearing cup suitable for agricultural tractors, combines, construction machinery, industrial gearboxes, steer and drive axles, hoisting equipment, and trailer wheel hubs. Cone sold separately - compatible mating cones include 09062, 09067, and 09074.
Replaces Part Number(s):
09196, A-09196-P-AI, 09196-I, 4T-09196, BR-09196
New aftermarket replacement part - not remanufactured, not used.
