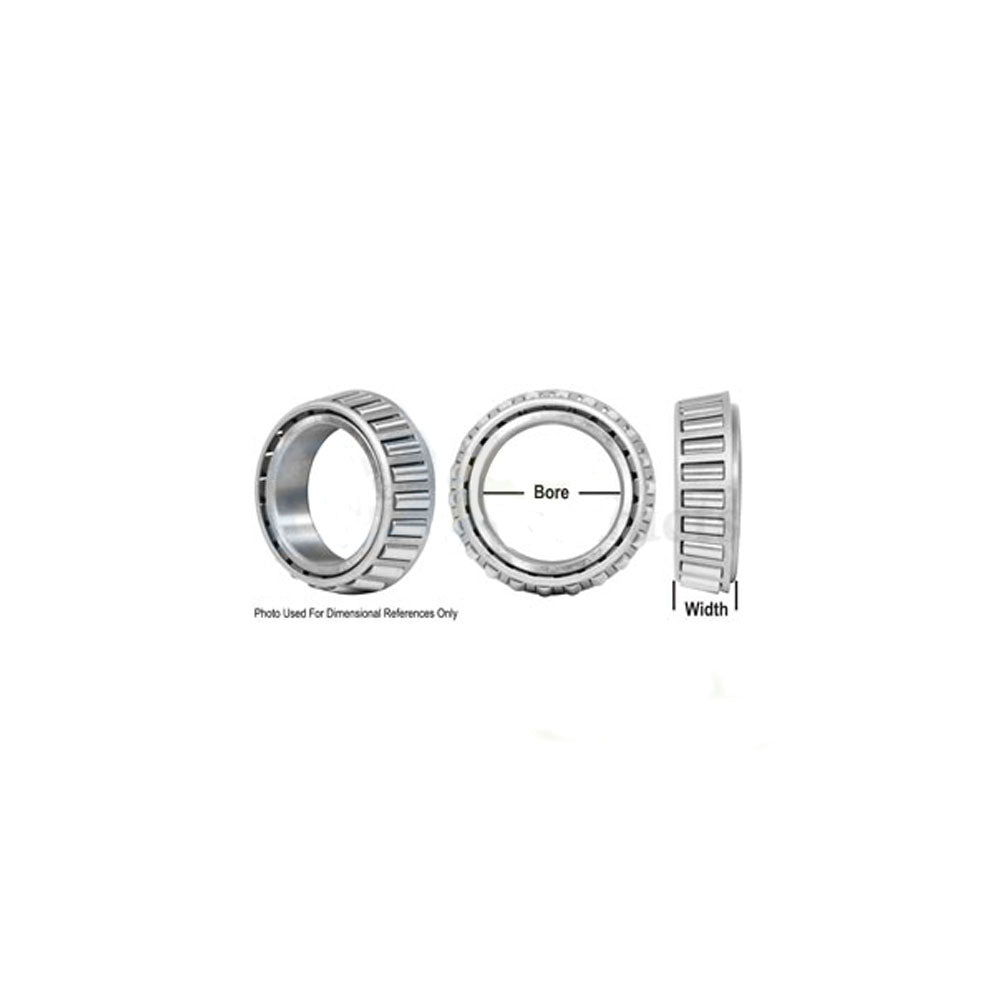

A-07100-P-AI Cone, Tapered Roller Bearing

One New Aftermarket Replacement Cone, Tapered Roller Bearing - 07000 Series (07100)

This single-cone tapered roller bearing (inner ring assembly) is a direct aftermarket replacement for the industry-standard 07100 cone. The cone pairs with a compatible cup (outer ring, sold separately) to form a complete tapered roller bearing capable of supporting both radial and axial loads. Typically mounted in opposing pairs on a shaft, it is widely used in agricultural equipment, construction machinery, lawn and garden equipment, and related applications requiring precise load management in a compact inch-series package.

Specifications

• Part Number: 07100 (A-07100-P-AI)
• Series: 07000
• Bore (ID): 1.000 in (25.400 mm)
• Cone Width: 0.561 in (14.260 mm)
• Maximum Shaft Fillet Radius: 0.040 in
• Bore Type: Straight
• Tolerance: Standard
• Material: Carburized/alloy steel; mild steel cage
• System of Measurement: Inch (AFBMA)

Compatible Cup (Outer Ring) Numbers

This cone is commonly matched with cups 07196 or 07204. Cup sold separately.

Replaces Part Number(s):

07100, 07100S

Aftermarket Interchange Numbers

4T-07100, 4T07100, K07100, AM118782, 105E1201, 105E1201A, 807188, G191A042800, F37925, R1X1064, 9439944, 62AX202, 10A6713, 10X9957, 302095E, 3110-00-100-3700

New aftermarket replacement part - not remanufactured, not used.
