A-051706-AI Bearing (LM11710)
A-051706-AI Bearing (LM11710)
Couldn't load pickup availability

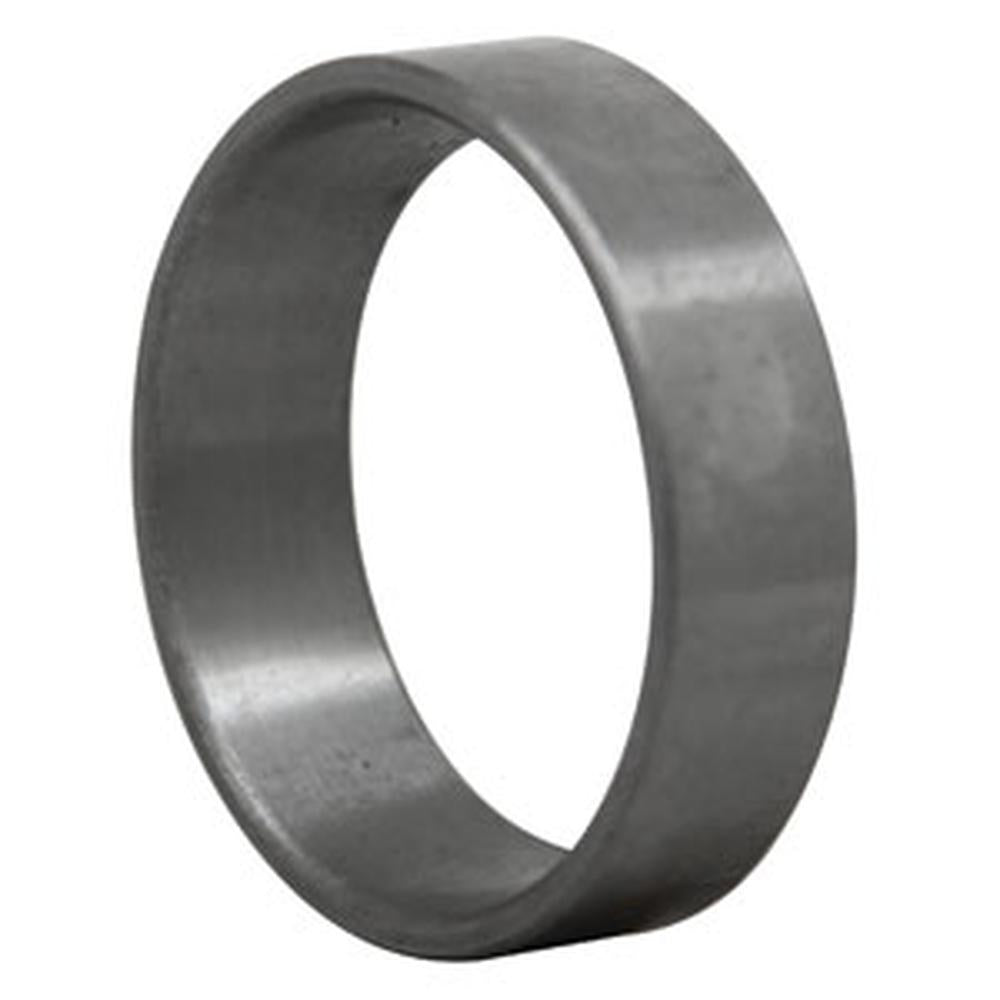

One New Aftermarket Replacement Tapered Roller Bearing Cup (LM11710)
This LM11710 tapered roller bearing cup (outer race) is a precision-machined single cup designed to pair with the LM11749 cone (inner ring assembly) to form a complete single-row tapered roller bearing. The tapered design handles both radial and axial loads simultaneously, making it well-suited for wheel hubs, axle shafts, and trailer spindles found across agricultural, lawn and garden, and light industrial equipment.
Specifications
- Type: Single-row tapered roller bearing cup (outer race)
- Bore / Inner Cup Diameter: 1.2567 in (31.92 mm)
- Outer Diameter: 1.570 in (39.88 mm)
- Cup Width: 0.420 in (10.67 mm)
- Series: Imperial, light-medium series
- Matches cone: LM11749
- Common set designation: SET1 (LM11749/LM11710)
Compatible Applications
The LM11710 is a widely used inch-series bearing cup found in lawn and garden equipment, agricultural machinery (tractors, combines, headers), boat trailers, semi-trailers, and light utility equipment. Verify fitment against your specific machine model and shaft diameter before ordering.
Replaces Part Number(s):
LM11710, A-051706-AI
New aftermarket replacement part - not remanufactured, not used.
