A-050487-AI Bearing (13685)
A-050487-AI Bearing (13685)
Couldn't load pickup availability

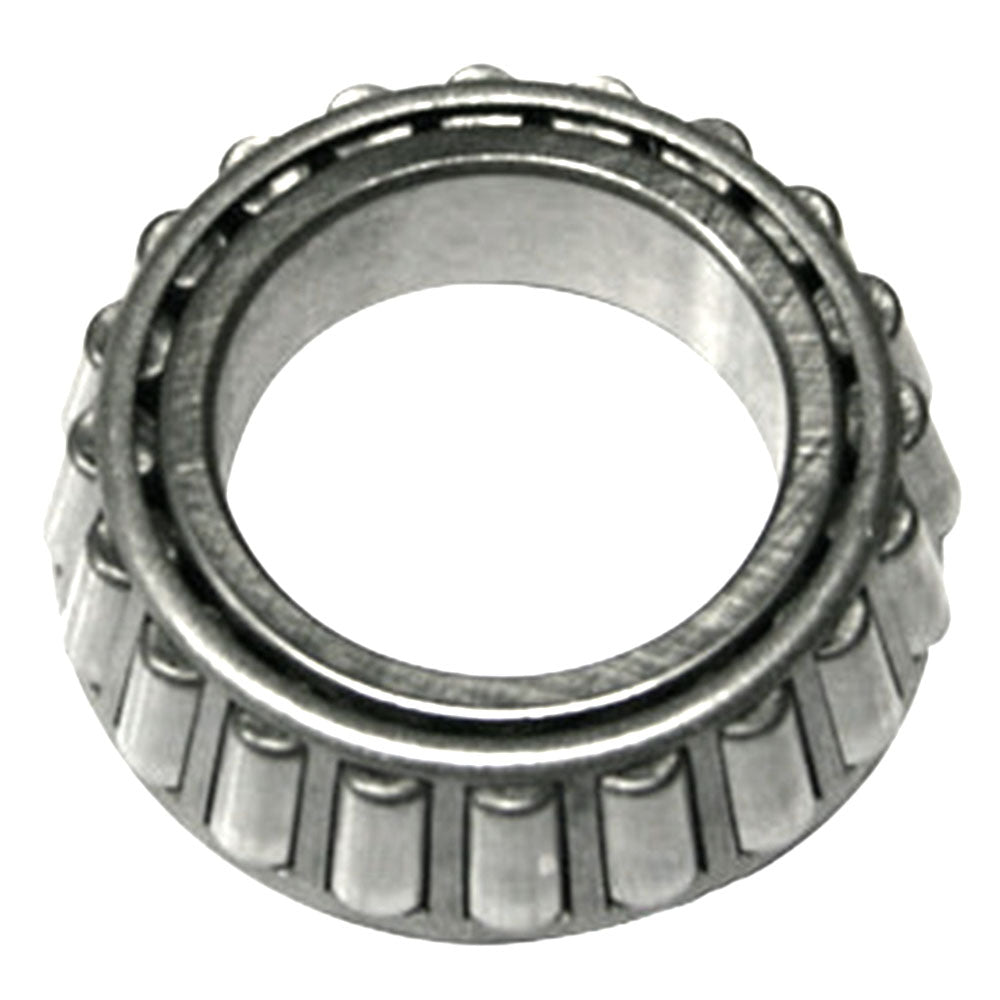

One New Aftermarket Replacement Tapered Roller Bearing Cone Fits Case/International Harvester, White/Minneapolis-Moline, Fits Massey Ferguson, Hesston, GEHL, and Fits John Deere Tractors
This tapered roller bearing cone (industry standard number 13685) is used in the front axle and wheel bearing assemblies of classic row-crop and utility tractors from multiple manufacturers. It is a single cone (inner race assembly) designed to pair with cup/race number 13621.

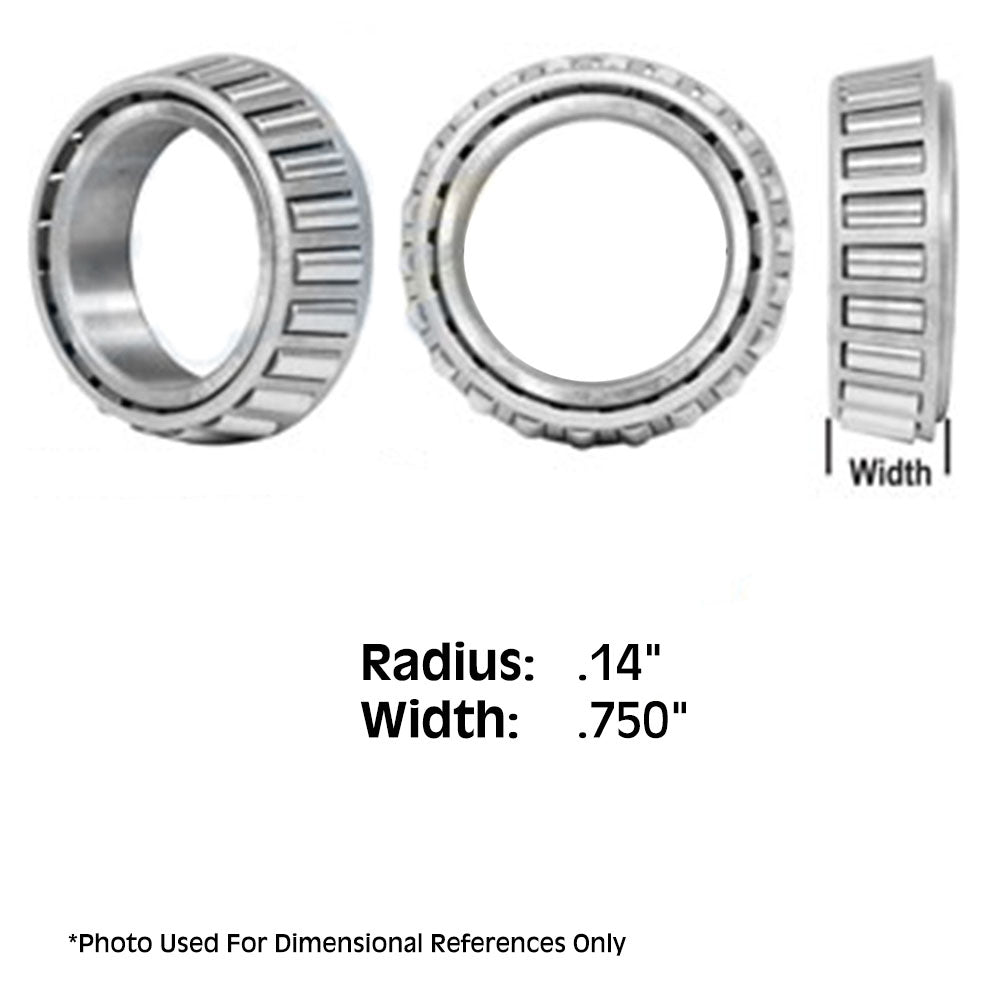

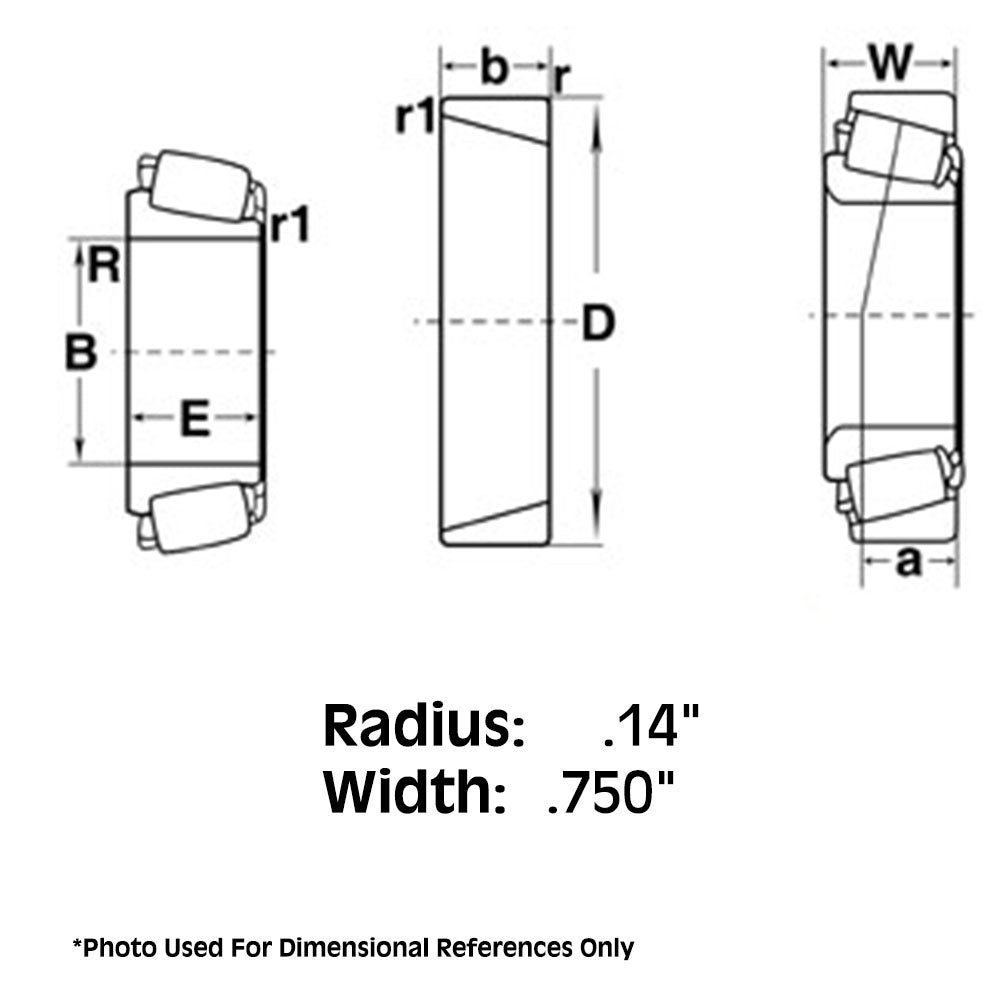

Specifications
- Bearing Type: Tapered Roller Bearing Cone
- Bore (Inner Diameter): 1.500 in (38.1 mm)
- Outer Diameter: 2.717 in (69.012 mm)
- Cone Width: 0.750 in (19.05 mm)
- Fillet Radius: 0.140 in (3.6 mm)
- Weight: approx. 0.42 lbs
- Sold individually (cone only; cup/race sold separately)
Compatible Models
Fits Case/International Harvester Tractors: 300, 300B, 400B, 500B, 600B, 630
White/Minneapolis-Moline/Oliver Tractors: 5 Star, 602, 670, G1000, M5
Fits Massey Ferguson, Hesston, GEHL, and Fits John Deere: See cross-reference numbers below. Also fits GEHL model 300B and additional models -- verify application by part number cross-reference.
Replaces Part Number(s):
13685, 13685-I, 050487, F62098, JD8122, W10A6833, 022627X, 70937209, 713222, 5429N
Aftermarket Interchange Numbers
Timken 13685, National 13685. Pairs with cup/race number 13621.
New aftermarket replacement part - not remanufactured, not used.
