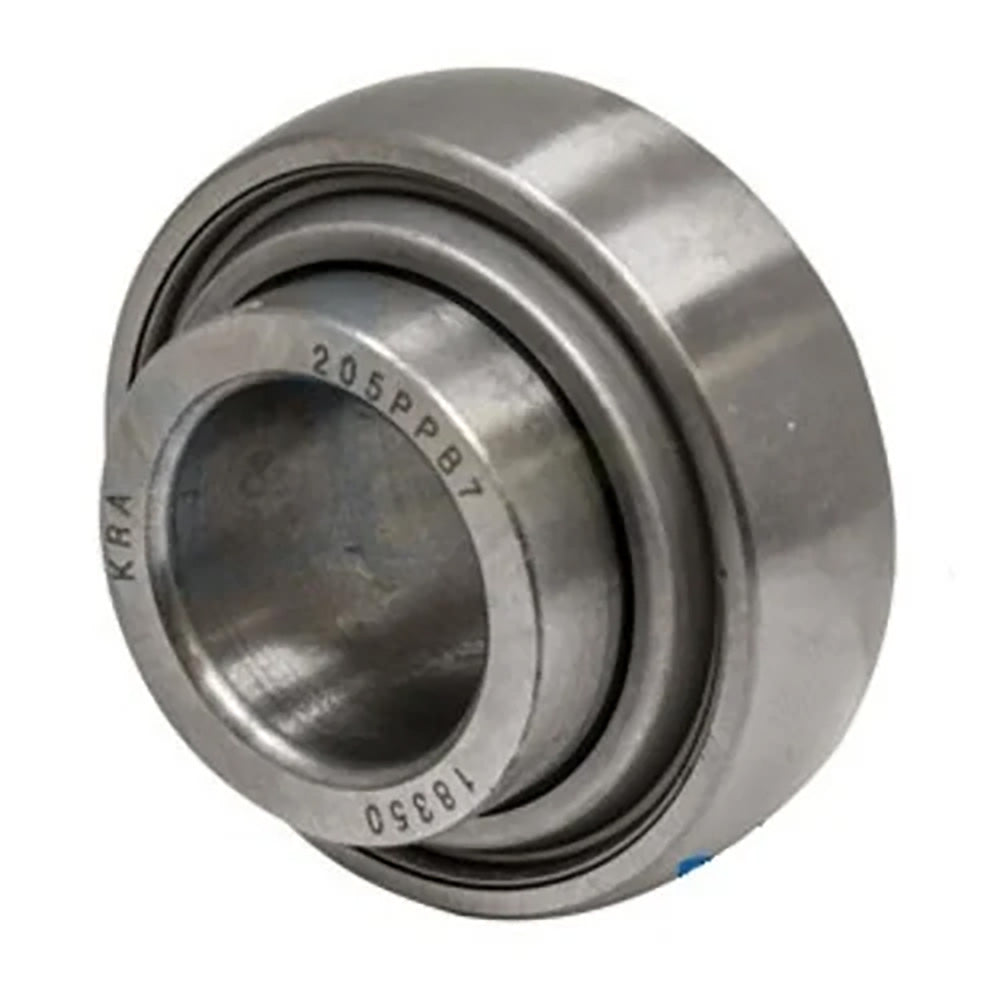

One New Aftermarket Replacement Ball Bearing for Lilliston and Kelly Rolling Cultivators

This special agricultural deep-groove ball bearing features a double-extended inner ring and straight (round) bore, designed for use in the gang assemblies of Lilliston and Kelly rolling cultivators. The extended inner ring provides added support in the cultivator bearing housing, keeping the gang shaft firmly located during field operation.

Specifications

Bearing Type: Special Agricultural Radial Ball Bearing (Deep-Groove)
Bore: 0.9375 in (15/16 in) - Round
Outside Diameter: 2.0472 in (52 mm)
Inner Ring Width: 1.375 in (34.9 mm)
Outer Ring Width: 0.5906 in (15 mm)
Inner Ring Style: Double Extended
Outer Ring Style: Straight

Compatible Models

Lilliston: Rolling Cultivators (15/16 in bore gang shaft)

Kelly Manufacturing (KMC): Rolling Cultivators

Bigham Brothers: Rolling Cultivators

Rhino: Compatible applications (cross-reference 70514)

Replaces Part Number(s):

2050020, 2050020IMP, 2061001, 2061001IMP, 04A51001, 04A51001IMP, 205PPB7, 205TTH

Aftermarket Interchange Numbers

BCA: 205TTH - Fafnir/Timken: 205PPB7 - Link-Belt: BS217948N - Kelly: 04-051-001 - Lilliston: 20-50-20, 20-61-001 - Rhino: 70514 - SKF: 6205VSP49 - NTN: SBX05A56 - Federal: 205TTHN, FS1833 - Sealed Power: F205TTH - Link-Belt: BS217948E3 - McQuay-Norris: BB1833AS

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Cultivator

Additional Information:

Double Extended Inner, Straight Outer, Round Bore Bore .9375" Bore Type Round Inner Ring Width 1.375" Outer Ring Width .5906" Outside Diameter 2.0472"
