A-044260-AI Bearing (HPS100GP)

Name: A-044260-AI Bearing (HPS100GP)
SKU: A-044260-AI
Price: 19.0 USD
Availability: InStock

A-044260-AI Bearing (HPS100GP)

£19.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

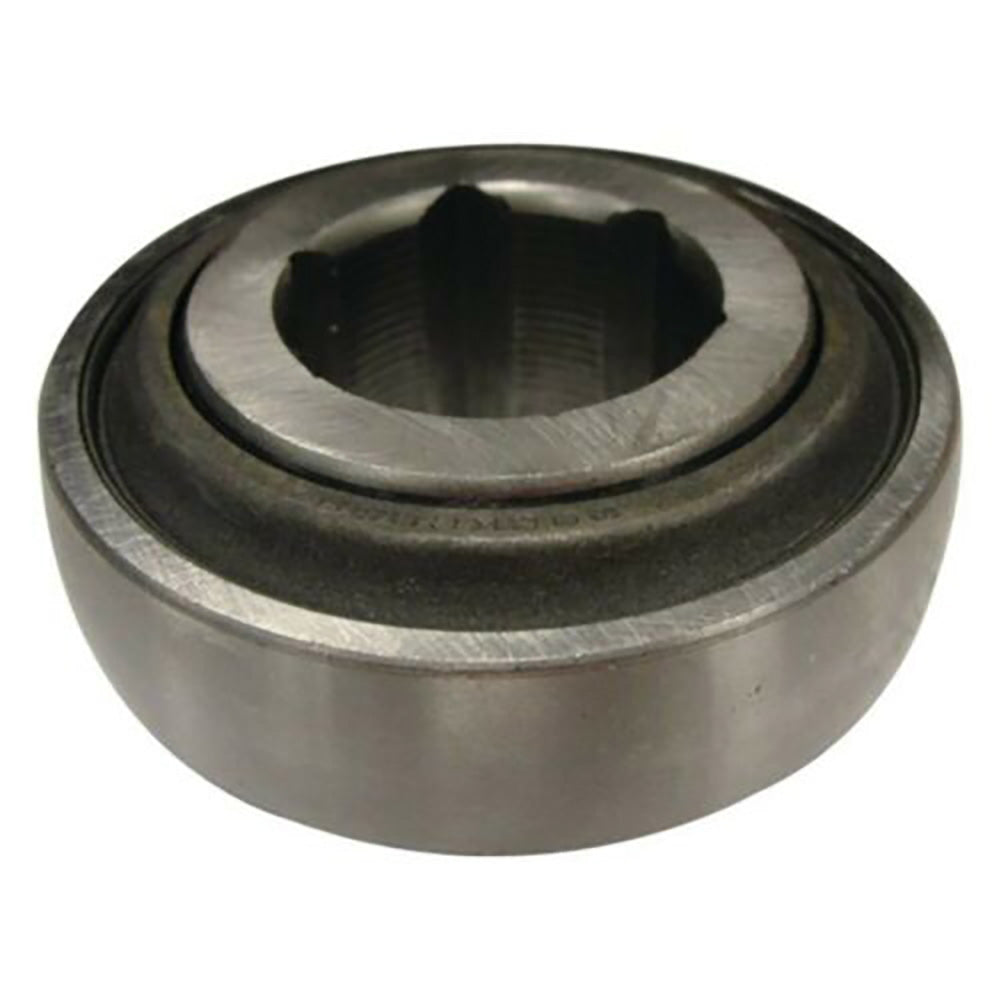

One New Aftermarket Replacement Hex Bore Spherical Ball Bearing (HPS100GP) Fits John Deere, Fits Case IH, Hesston, GEHL, and Fits New Holland Agricultural Equipment

This spherical, double-sealed hex bore farm implement bearing fits directly to a hex shaft without the need for a separate locking device, simplifying installation. It is designed for moderate-load, low-speed agricultural applications including combines, round balers, square balers, cotton pickers, cotton strippers, forage harvesters, hay cutting equipment, grain drills, mower conditioners, and cornhead/cutting platform assemblies. The spherical outer ring accommodates minor shaft misalignment, and the pre-lubricated, double-sealed design helps protect against dirt, debris, and moisture in demanding field conditions.

Specifications

Bore: 1.000" Hex
Outside Diameter: 2.4409" (62 mm)
Outer Ring Width: 0.630"
Inner Ring Width: 0.9449" (24.000 mm)
Overall Width: 1.5940" (40.488 mm)
Outer Ring Design: Spherical
Closure: Double Sealed
Seal Material: Nitrile Rubber
Lubrication: Pre-lubricated (non-relubricatable)
Bearing Material: Through Hardened Steel
Dynamic Load Capacity: 4,400 lbf (19,500 N)
Static Load Capacity: 2,540 lbf
Operating Temperature: -40 to 250 degrees F
ISO Precision Class: 0 (ABEC 1)

Compatible Models

Fits John Deere Combines: CTS, CTS II, 6600, 6620, 6622, 7722 Hillside, 9400, 9410, 9450, 9500, 9500 SH, 9501, 9510, 9510 SH, 9550, 9550 SH, 9560, 9560 SH, 9600, 9610, 9650, 9650 CTS, 9660, 9660 CTS

Fits John Deere Round Balers: 327, 330, 335, 337, 338, 347, 348, 375, 385, 430, 435, 446, 447, 456, 457, 466, 467, 468, 468S, 530, 535, 546, 547, 556, 557, 565, 566, 567, 572, 575, 582

Fits John Deere Harvesters/Cotton Equipment: 280, 282, 283, 484, 3800, 5200, 5400, 5440, 5460, 5720, 5730, 5820, 5830, 7440, 7445, 7450, 7460, 7760, 9900, 9910, 9920, 9930, 9935, 9940, 9950, 9976, 9986, 9996

Fits John Deere Hay Cutting/Square Balers: 220, 240, 530, 535, 550, 1380, 1400, 1424, 1800, 2052, 2062, 2305, 2555, 2720

Fits John Deere Grain Drills/Headers: 770, 780, 785

Fits John Deere Compact Tractors: 3120, 3320, 3520, 4115

Fits Case IH Combines: 1644, 1660, 1666, 1670, 1680, 1682, 1688, 2144, 2166, 2188, 2344, 2366, 2377, 2388, 2577, 2588

Fits Case IH/Fits International Harvester: CS690, CS770

Hesston: 50 Series, 50A Series

GEHL: 95

Replaces Part Number(s):

713172, 713-172, 771-4603, 044260, 44260, 053719, 053719GV, 211587C91, JD9313, JD9332, JD9407, AN220534, AN100348, HPS100GP, 16KG206N, 206KRRB6, 206KRRB6-I, 206KRRB-6AG, G206KRRB6GV, 308-206KPP4

Aftermarket Interchange Numbers

NTN HPS100GP, BCA HPS100GP, Fafnir 206KRRB6, Link-Belt 16K206N, NTN 2AH06-1, Kewanee A5636, Fits New Holland 135241, Long 9-90325, Hesston 7714603

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1380, 5730, 7445, 572, 545, CTS, 3520, 9450, 240, 335, 9510, 9996, CS690, 448, 1400, 785, 2720, 468S, 770, 530, 567, 7760, 9600, 456, 484, 280, 9650CTS, 5830, 7460, 9560, 9400, 435, 9910, 9660, 5440, 457, CTS II, 558, 467, 7450, 5400, 283, 550, 50A Series, 7440, 3120, 6622, 230, 385, 9550SH, 3800, 338, 1800, 7455, 9501, 9930, 2305, 9500, 328, 220, 458, 566, 9610, 547, 2555, 9650, 468, 6620, 95, 2062, 337, 780, 2052, 4115, 282, 9410, 3320, CS770, 9500SH, 330, 466, 7722 Hillside, 5200, 5720, 592, 568, 9920, 9510SH, 446, 6600, 540, 9935, 9986, 575, Unmounted Bearings, 557, 556, 9950, 9660CTS, 375, 9976, 1424, 748, 348, 9550, 565, 1052, 9940, 5820, 9900, 347, 582, 327, 50 Series, 447, 9560SH, 5460, 430, 535, 546

Additional Information:

Bore: 1.000" OD: 2.4409" Outer Ring Width: .630" Inner Ring Width: .949" Bore Type: Hex Bi: .9450" / 24.000 mm W: 1.5940" / 40.488 mm Hex Bore: 1 Lube Type: Pre-lubed Brg Type: 2

Reference Numbers:

211587C91, 053719, 053719GV, 16KG206N, 206KRRB6, 206KRRB6-I, 308-206KPP4, G206KRRB6GV, HPS100GP, 206KRRB-6AG, 044260, 053719, 44260, 53719, JD9313, AN220534, JD9332, JD9407, AN100348, AN220534, 713172, 713-172, 771-4603
