One New Aftermarket Replacement Double Pressure Plate for Deutz / Deutz-Allis / Allis Chalmers Tractors

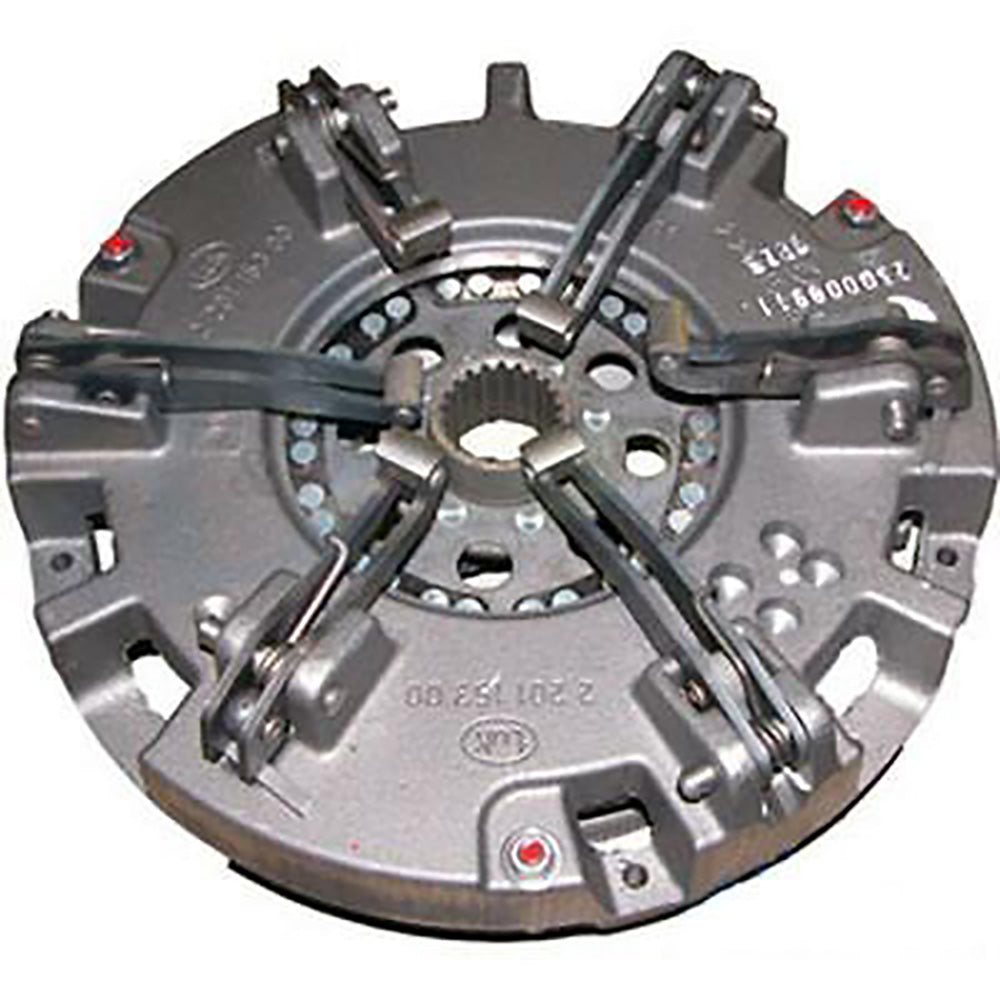

This cast iron double clutch pressure plate features an independent PTO (IPTO) design with 6 levers. It serves as the clutch cover assembly in a dual-stage clutch system, allowing the PTO to operate independently from the transmission. The 12-inch cast iron housing with 21-spline, 1.750-inch spline diameter fits the front PTO clutch stage on compatible Deutz and Deutz-Allis tractors.
Specifications
- Type: Double clutch pressure plate, independent PTO (IPTO)
- Construction: Cast iron
- Levers: 6
- Spline Count: 21
- Spline Diameter: 1.750 in.
Compatible Models
Deutz / Deutz-Allis Tractors: DX85, DX85A, DX90 (SN less than 7818-0199)
Allis Chalmers Tractors: Compatible - verify serial number and model fitment before ordering.
Replaces Part Number(s):
04315562, 4315562, A-04315562-AI, 02940225, 2940225, 2940103, 4315571, 4386347, 4386347-R
Aftermarket Interchange Numbers
VPG1133 (LUK Clutch), A-02940225, A-04386347, 230000911, 230000911/2, A-02940394
New aftermarket replacement part - not remanufactured, not used.
