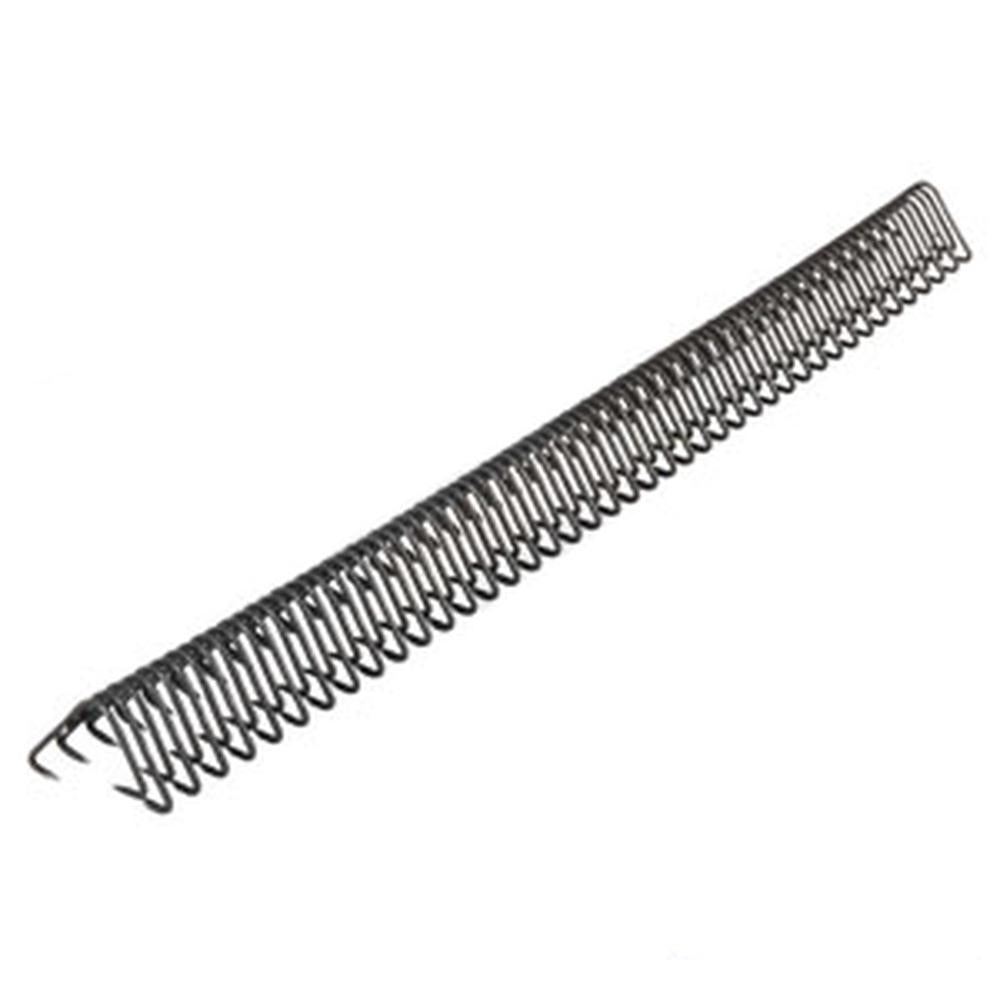

A-01279-AI U4 Hooks Coated Steel

One New Aftermarket Replacement U4 Coated Steel Clipper Unibar Belt Hooks - Flexco 01279

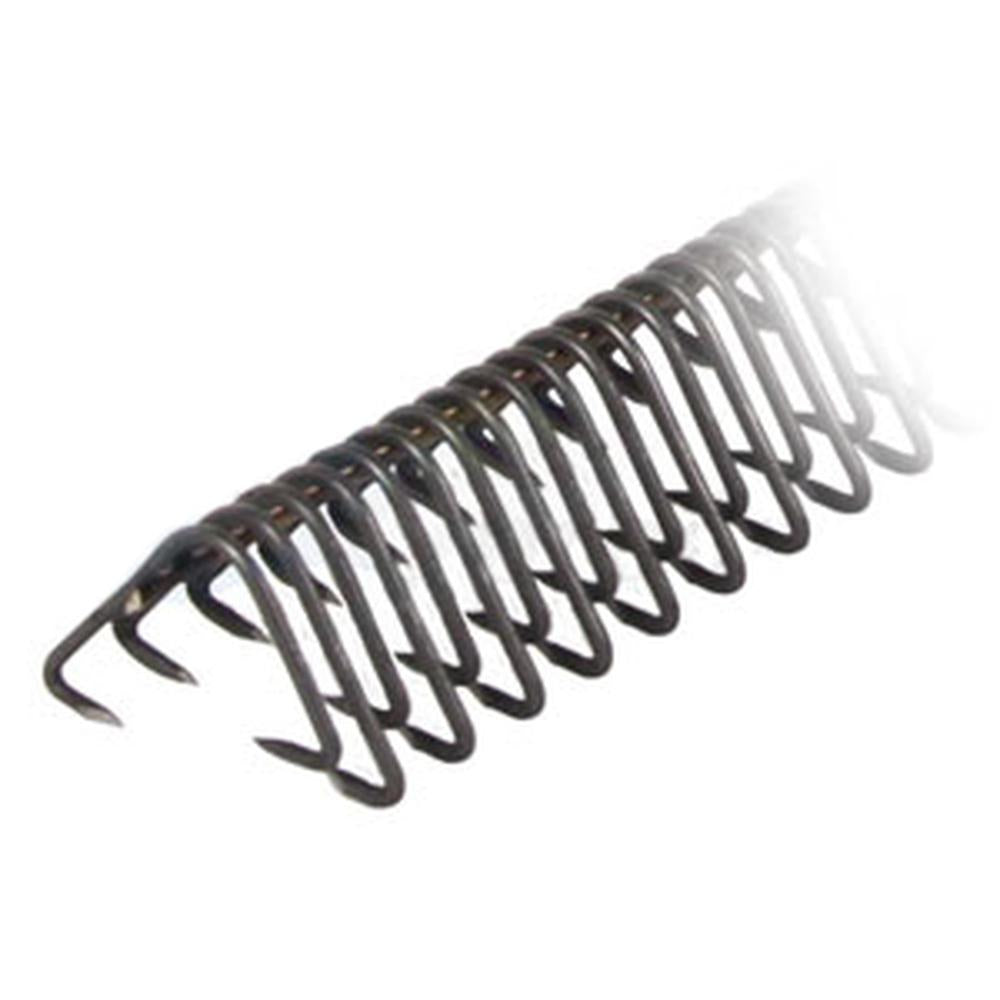

These U4 Coated Steel Unibar hooks are Clipper-style belt fasteners used to splice conveyor and flat belting in agricultural, food processing, general manufacturing, package handling, and commercial laundry applications. Each hook is welded to a common Unibar bar, creating a stable strip that simplifies installation, maintains parallel hook legs for easy belt meshing, and spreads shock loads across the splice.

Specifications

• Hook Size: U4
• Hook Style: Unibar (Clipper)
• Fastener Material: Coated Steel
• Belt Thickness: 7/32 in. to 1/4 in. (5.6 mm to 6.4 mm)
• Wire Diameter: 0.054 in. (1.37 mm)
• Required Pin Diameter: 0.109 in. (2.8 mm)
• Minimum Pulley Diameter: 4 in. (100 mm)
• Hooks Per Strip: 84
• Strip Length: 12 in. (300 mm)
• Strips Per Box: 12
• Total Lacing per Box: 144 in.
• Hinge Pin Included: No
• Set Quantity: Box (12 cards/box)
• Note: Not recommended for use in round hay balers

Applications

Agriculture, food processing, package and parts handling, general manufacturing, commercial laundry, filter media. Not recommended for bias splices, troughed belts where common bar breakage is a concern, or where special metals are required.

Replaces Part Number(s):

Flexco 01279, Flexco U4C12, EL1244 (EDCOR), PM01279 (WCCO Belting)

Aftermarket Interchange Numbers

A-01279 (A&I Products), A-01279-AI, 519-01279

New aftermarket replacement part - not remanufactured, not used.
