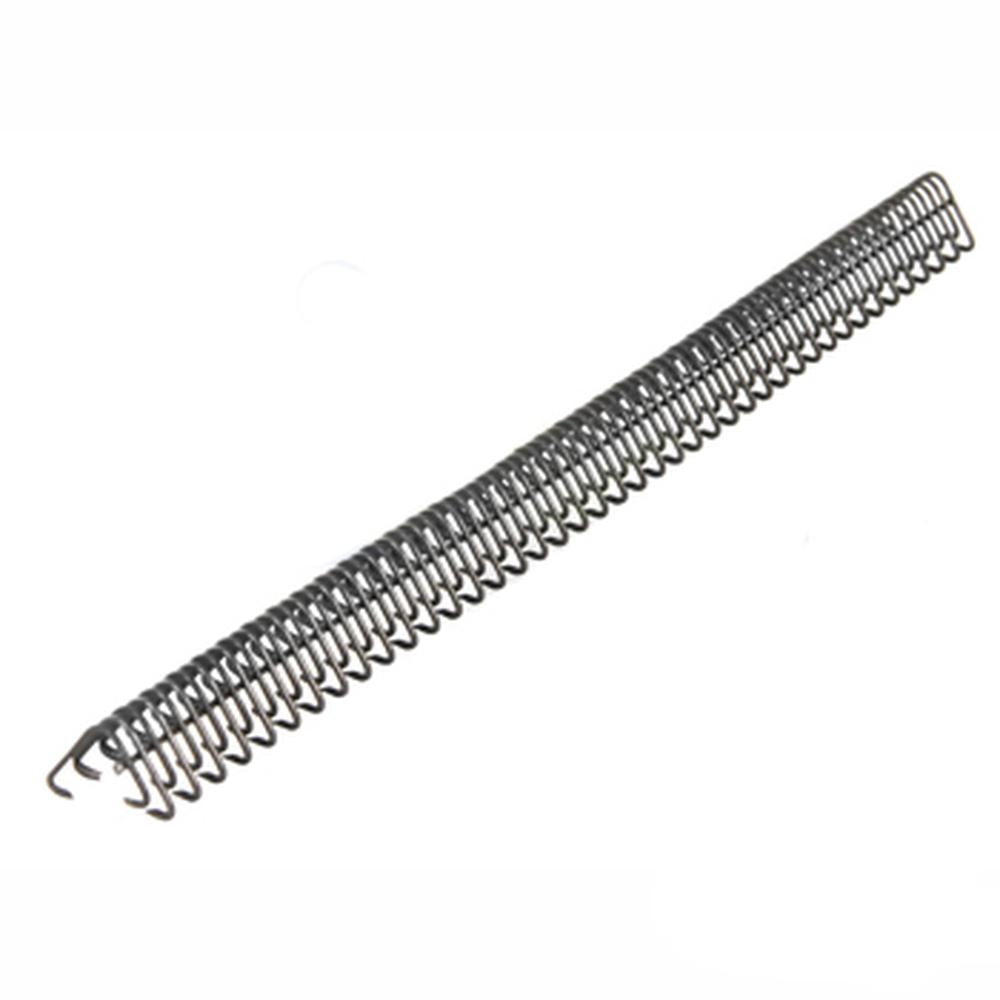

A-01251-AI U3 Hooks Coated Steel

One New Aftermarket Replacement Flexco Clipper Unibar U3 Coated Steel Belt Hooks - 12" Strips, Box of 12

These Flexco Clipper Unibar U3 coated steel belt hooks are used to splice and repair conveyor belts and round baler belts in agricultural and industrial applications. Each hook is welded to a common bar for easier installation, and the coated steel construction provides corrosion resistance for demanding field conditions. Hinge pin is not included and must be ordered separately.

Specifications

• Hook Style: Unibar (Clipper)
• Hook Size: U3
• Fastener Material: Coated Steel
• Belt Thickness: 5/32" - 3/16" (0.156" - 0.187")
• Minimum Pulley Diameter: 3 in.
• Wire Diameter: 0.054 in.
• Required Pin Diameter: 0.093 in.
• Strip Length: 12 in.
• Hooks Per Strip: 84
• Strips Per Box: 12
• Total Lacing per Box: 144 in.
• Hinge Pin Included: No

Compatible Applications

Round Balers: AGCO, Allis-Chalmers, Case IH, Challenger, Claas, Gehl, Hesston, John Deere, Krone, Kuhn, Kverneland, M&W, Massey Ferguson, New Holland, New Idea, Vermeer, Vicon

Also suitable for: General agricultural conveyor belts and light industrial belt splicing applications. Note: Per manufacturer guidance, not recommended for use in round hay balers where Unibar common bar breakage may be a concern - verify suitability for your specific baler model before ordering.

Replaces Part Number(s):

A-01251, A-01251-AI, 01251

New aftermarket replacement part - not remanufactured, not used.
