A-00774208-AI Clamp Cone Bolt; 1 3/4"
A-00774208-AI Clamp Cone Bolt; 1 3/4"
Regular price
£57.00 GBP
Regular price
Sale price
£57.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

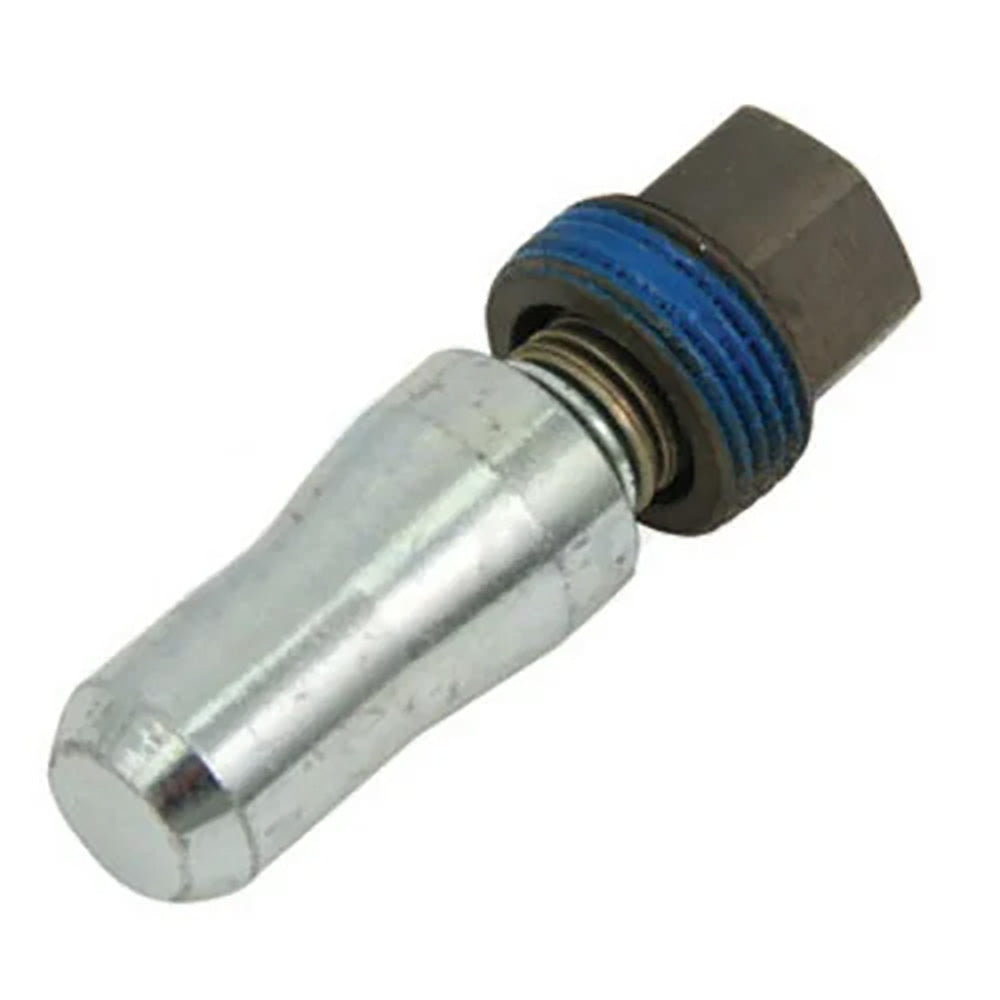

One New Aftermarket Replacement Clamp Cone Bolt; 1 3/4" for Rhino Rotary Cutters
This clamp cone bolt secures the driveline yoke on the CV driveline assembly of Rhino (Servis-Rhino) rotary cutters. The 1 3/4" bore specification fits the implement-side yoke connection on 1000 RPM and 540 RPM driveline configurations. Note: the SE15-4A application carries a serial number restriction (SN 14812 and greater) -- verify serial number before ordering for that model.
Specifications
- Bore Size: 1 3/4"
- Torque Specification: 75 lb-ft (requires 17 mm socket)
- Application: CV driveline yoke clamp bolt
Compatible Models
Rhino Rotary Cutters: FL10M, FL14, FL15M, FL20, FM10, FM15, FS20, SE10-4, SE10-4A, SE15-4, SE15-4A (SN 14812 and greater), SR10, SR10M, SR14, SR15, SR15M
Replaces Part Number(s):
00774208, A-00774208, A-00774208-AI
New aftermarket replacement part - not remanufactured, not used.
