A-00760667-AI Machine Half

One New Aftermarket Replacement Machine Half CV PTO Driveline for Alamo Industrial and Rhino Rotary Cutters

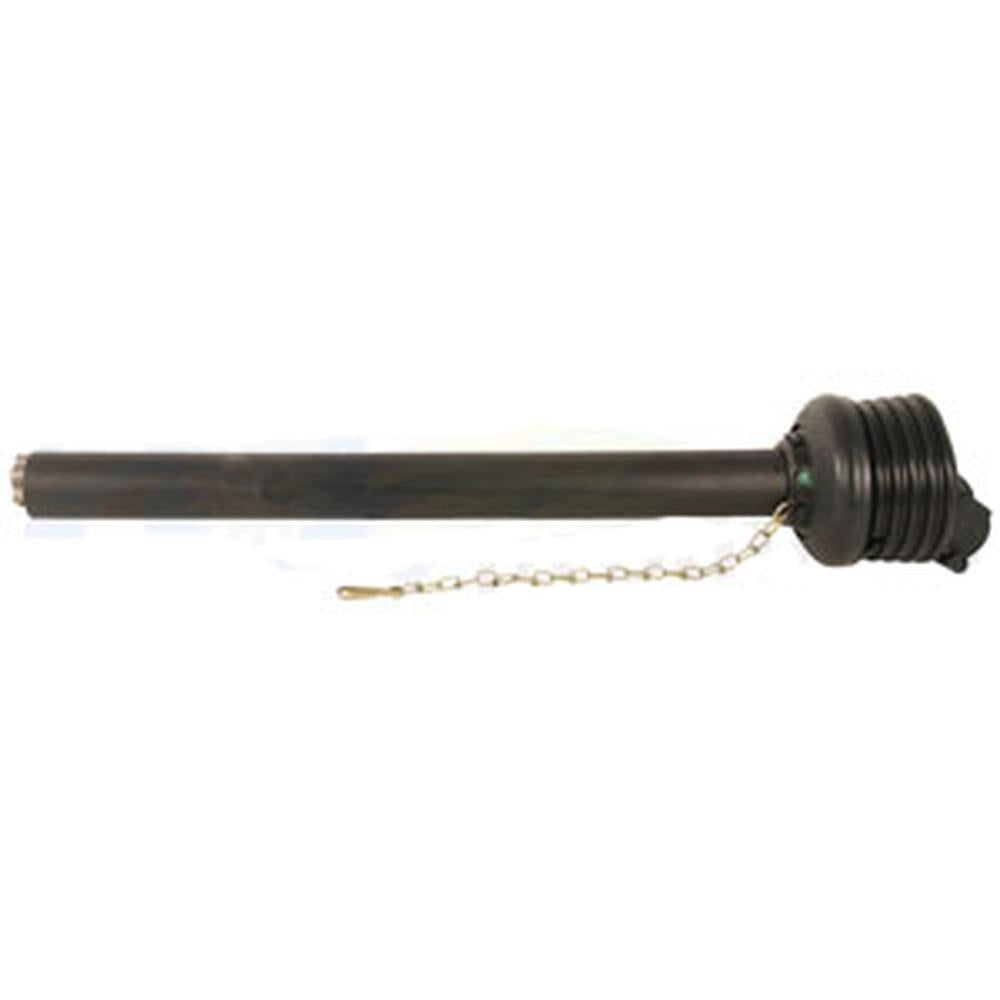

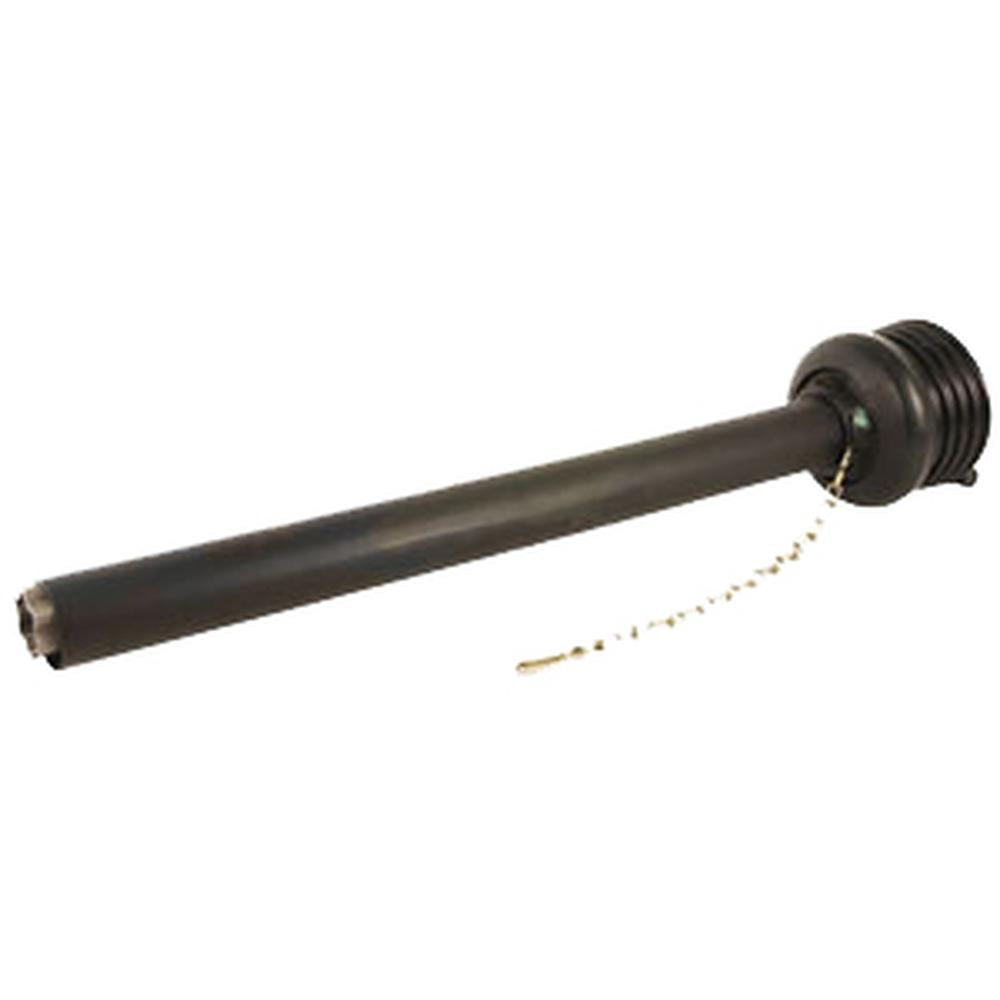

This aftermarket replacement machine half CV driveline (implement half) connects the rotary cutter or chopper to the PTO shaft assembly. It is the implement-side half of the constant velocity (CV) driveline system used on Alamo Industrial and Rhino (Servis-Rhino) rotary cutters and choppers. The 1-3/4" 20-spline implement end interfaces directly with the rotary cutter gearbox input.

Specifications

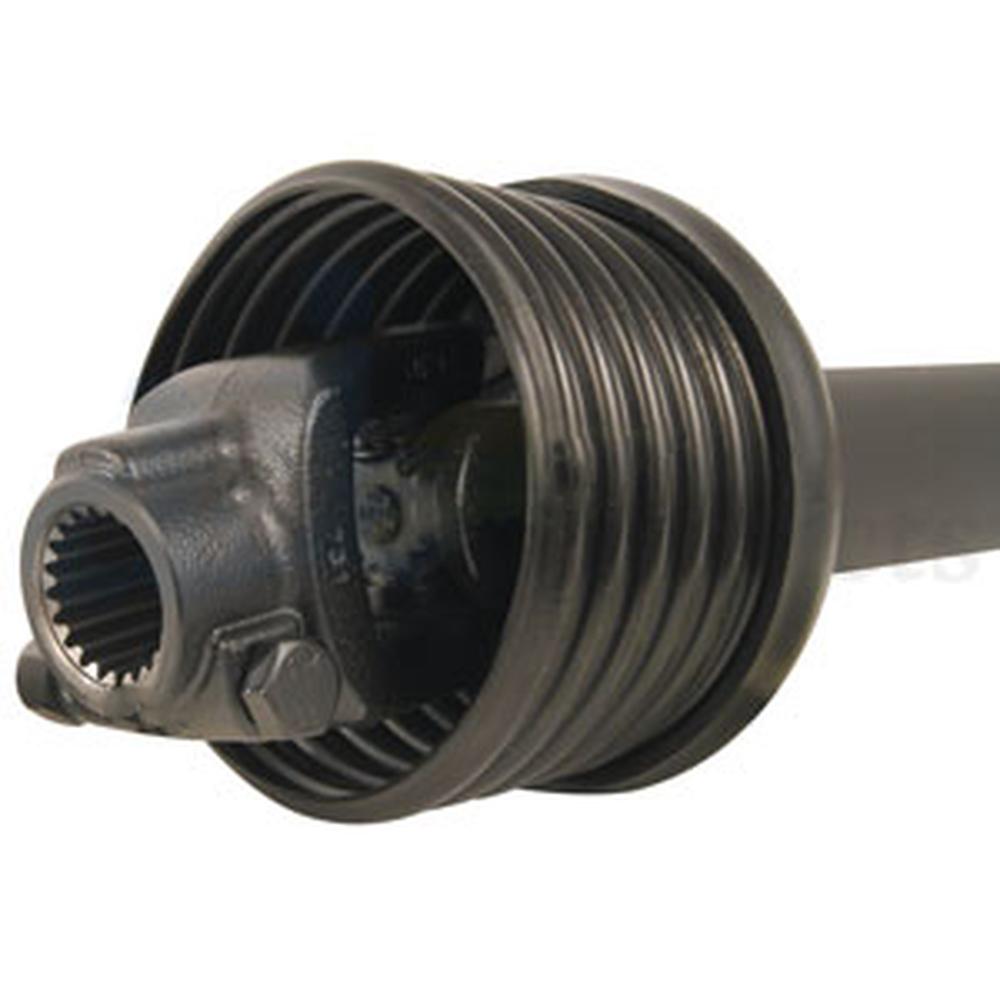

• Implement End: 1-3/4" - 20 Spline
• Series: 2580
• Type: Machine Half (Implement Half) CV Driveline

Compatible Models

Alamo Industrial Rotary Cutters: A141V, A201V, A415 (SN A415-01001 thru A415-14000), AG15IV (SN 15-02106 and later), AG20IV (SN AG20-01060 and later)

Rhino (Servis-Rhino) Rotary Cutters: FL10M (SN 10001 and later), FL14 (SN 10341-10699), FL15M (SN 10001 and later), FL20 (SN 10341-10699), FM10 (SN 10035-10200), FM15 (SN 10035-10200), FS20 (SN 01001-10217), SE10-4A (SN 17108 and later), SE15-4 (SN 10001-18858), SE15-4A (SN 17108 and later), SR10 (SN 10001-11270), SR10M (SN 10001-18858), SR14 (SN 10001-11410), SR15 (SN 10001-11270), SR15M (SN 10001-18858), SR20 (SN 10001-11410)

Important: Serial number restrictions apply to several models -- verify your machine serial number before ordering. It may be necessary to cut this driveline to length. Verify sufficient overlap of drive tubes exists in all working positions without the possibility of bottoming out.

Replaces Part Number(s):

00760667, A-00760667-AI, 00760665, 00763556

New aftermarket replacement part - not remanufactured, not used.
