A-00748525-AI Bearing (LM603014)

One New Aftermarket Replacement Tapered Roller Bearing Cup (LM603014) for Rhino, BMB, Hardee, Brown Tree, SE Big Ox, Sidewinder and More

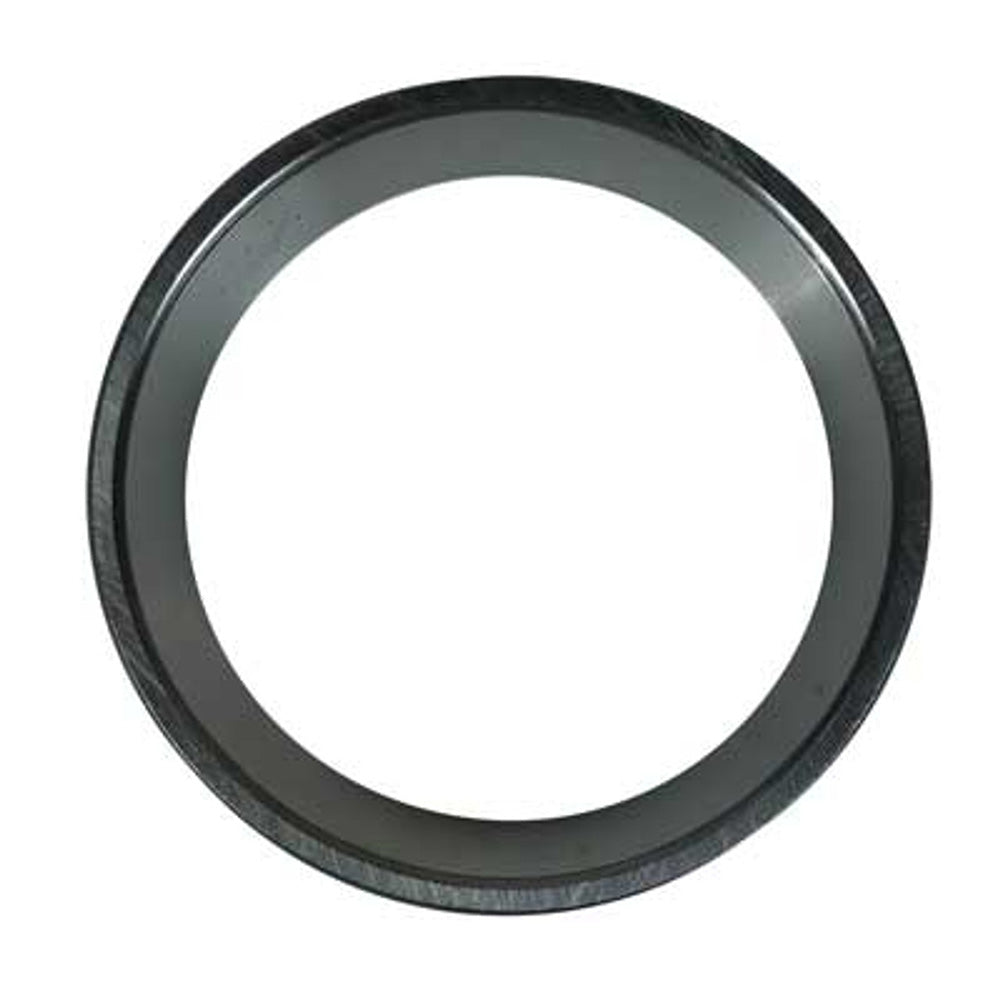

This LM603014 is a tapered roller bearing cup (outer ring/race) used across a wide range of agricultural, lawn and garden, and industrial equipment applications. The tapered cup design supports both radial and axial loads and is typically paired with a matching LM603049 cone assembly. Compatible with Rhino, BMB, Hardee, Brown Tree, SE Big Ox, and Sidewinder equipment among others.

Specifications

• Type: Tapered Roller Bearing Cup (Single Cup - Imperial)
• Outer Diameter: 3.1486 in (79.97 mm)
• Cup Width: 0.5937 in (15.08 mm)
• Inner Diameter: 2.5390 in (64.47 mm)
• Material: Chrome Steel
• Mating Cone: LM603049

Compatible Equipment

Rhino: Models referencing part 00748525, 701049, 701052

BMB: Models referencing part 9014, 9509, 00748525

Hardee: Models referencing part C218, 11240

Brown Tree: Models referencing part WHD-203

SE Big Ox: Models referencing part 1516

Sidewinder: Models referencing part 15811

Replaces Part Number(s):

A-00748525-AI, 00748525, LM603014

Aftermarket Interchange Numbers

BMB 9014, BMB 9509, Hardee C218, Hardee 11240, Rhino 701049, Rhino 701052, SE Big Ox 1516, Sidewinder 15811, Brown Tree WHD-203, 4T-LM603014, LM603049/14

New aftermarket replacement part - not remanufactured, not used.
