9N5182A 3 Point Fits CAT I Drawbar Fits Ford 9N 2N 8N NAA 600 800
9N5182A 3 Point Fits CAT I Drawbar Fits Ford 9N 2N 8N NAA 600 800
Couldn't load pickup availability

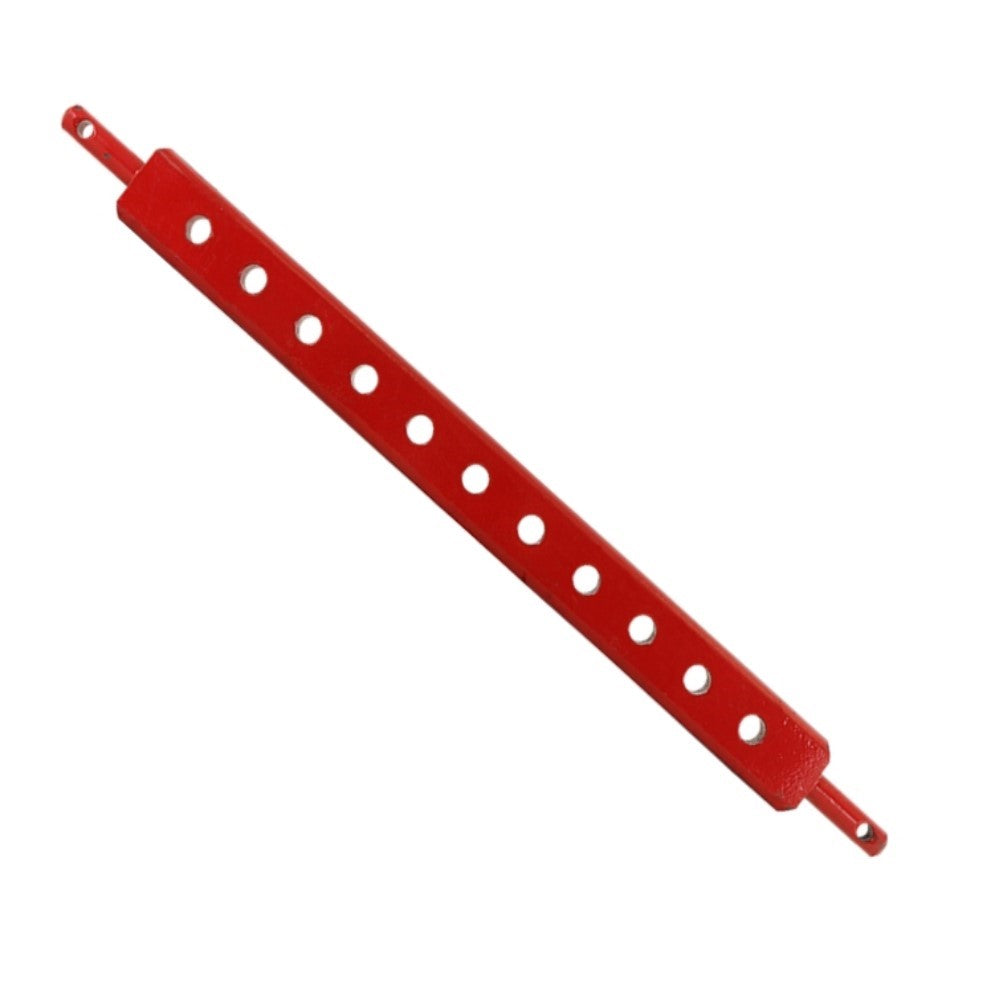

One New Aftermarket Replacement Cat I 3-Point Drawbar for Ford and Massey Ferguson Tractors
This red Cat I lift arm drawbar mounts to the 3-point hitch on Ford and Massey Ferguson tractors (without swing drawbars), connecting implements and trailers to the tractor's rear hitch. Heat-treated for added strength, it features 11 holes with 3/4" diameter and a 7/8" pin diameter, making it a versatile replacement for a wide range of compact and utility tractors.
Specifications
- Hitch Category: Cat I (Category 1)
- Color: Red
- Overall Length: 30-1/2"
- Usable Length: 26"
- Width: 2-1/2"
- Thickness: 1"
- Number of Holes: 11
- Hole Diameter: 3/4"
- Pin Diameter: 7/8"
- Product Type: Lift Arm Drawbar
Compatible Models
Ford / New Holland: 2N, 8N, 9N, NAA (Jubilee), 600, 700, 800, 900, 2000, 3000, 4000, 5000
Massey Ferguson: 35, 35 Govt., 35 Turf, 35 Utility, 50, 135, 135 UK, 265, 270, 275, 290, 362, TE20, TEA20, TED20, TEF20, TEH20, TO20, TO30, TO35
Note: For use on tractors without a swinging-type drawbar. Fits all tractors with 26" lift arm spacing and 7/8" ball sockets.
Replaces Part Number(s):
9N5182A, 180485M1, 180485M91, 677240, 251006
Aftermarket Interchange Numbers
DB78R, DB78B, DB78RSP, DB06, DB07, DB422, 49A30B, 49A30R, 180485M1HT, 251006F, HIF10-0014
New aftermarket replacement part - not remanufactured, not used.
