Top Radiator Hose 84496C1 Fits Case IH 3230 4210 4230 4240 585 595 685 695 885
Top Radiator Hose 84496C1 Fits Case IH 3230 4210 4230 4240 585 595 685 695 885
Couldn't load pickup availability

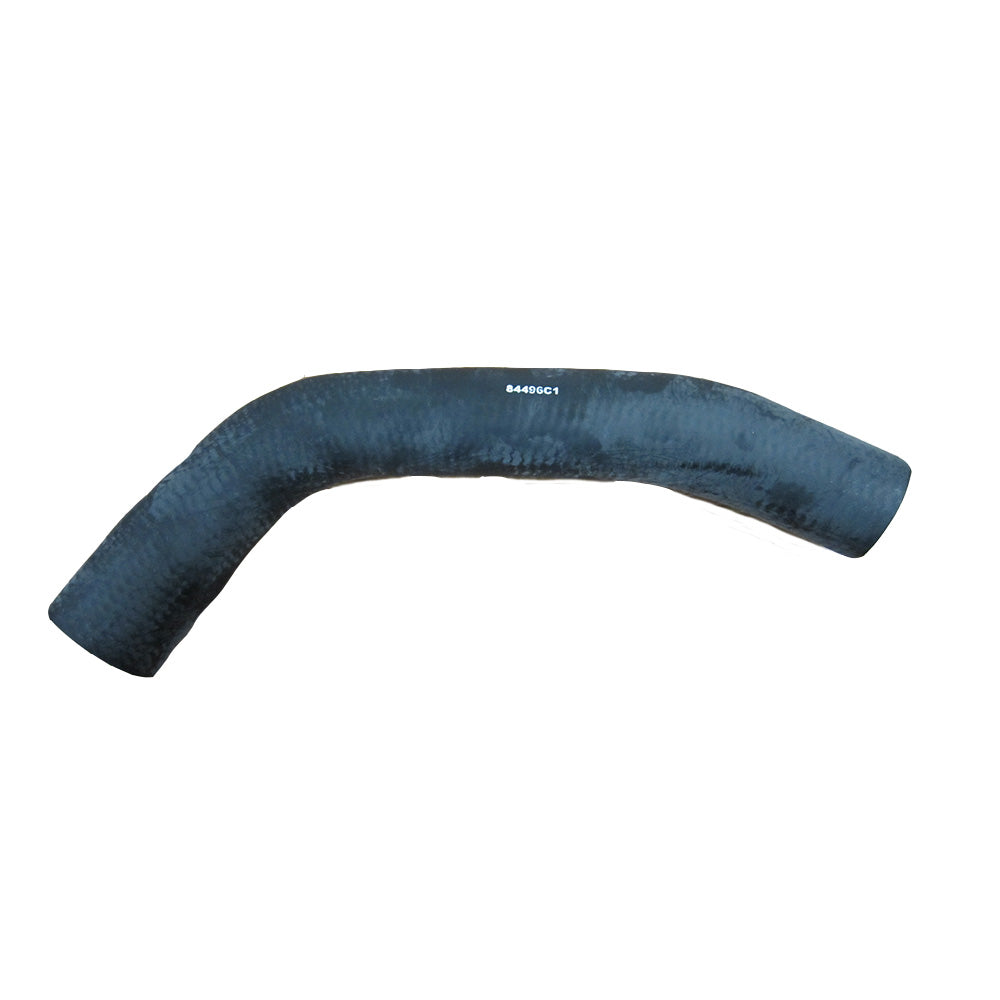

One New Aftermarket Replacement Top Radiator Hose Fits Case IH Tractors
This upper (top) radiator hose connects the radiator to the engine cooling system on Fits Case IH and Fits Case/International Harvester tractors. It features a stepped bore design with a 1.75" inside diameter on the smaller end and a 2.00" inside diameter on the larger end, routing coolant from the engine outlet to the top of the radiator.
Specifications
- I.D. (smaller end): 1.75" (approx. 44mm)
- I.D. (larger end): 2.00" (approx. 50mm)
- Number of bends: 2
- Material: Rubber
- Position: Upper / Top
Compatible Models
Fits Case IH / Fits Case/International 85-Series (with A/C): 585, 685, 885
Fits Case IH / Fits Case/International 95-Series (with A/C): 595, 695
Fits Case IH / Fits Case/International 95-Series: 895
Fits Case IH 3000-Series (BSN JJE0910720 and above): 3220, 3230
Fits Case IH 4000-Series (BSN JJE0910720 and above): 4210, 4230, 4240
Note: Fitment on 585, 595, 685, 695, 885, and 895 applies to models equipped with air conditioning (A/C). Verify A/C configuration before ordering. For 3220, 3230, 4210, and 4230, verify serial number is JJE0910720 or above.
Replaces Part Number(s):
84496C1, 084496C1
Aftermarket Interchange Numbers
AM84496C1, A-84496C1, Sparex S.57708
New aftermarket replacement part - not remanufactured, not used.
