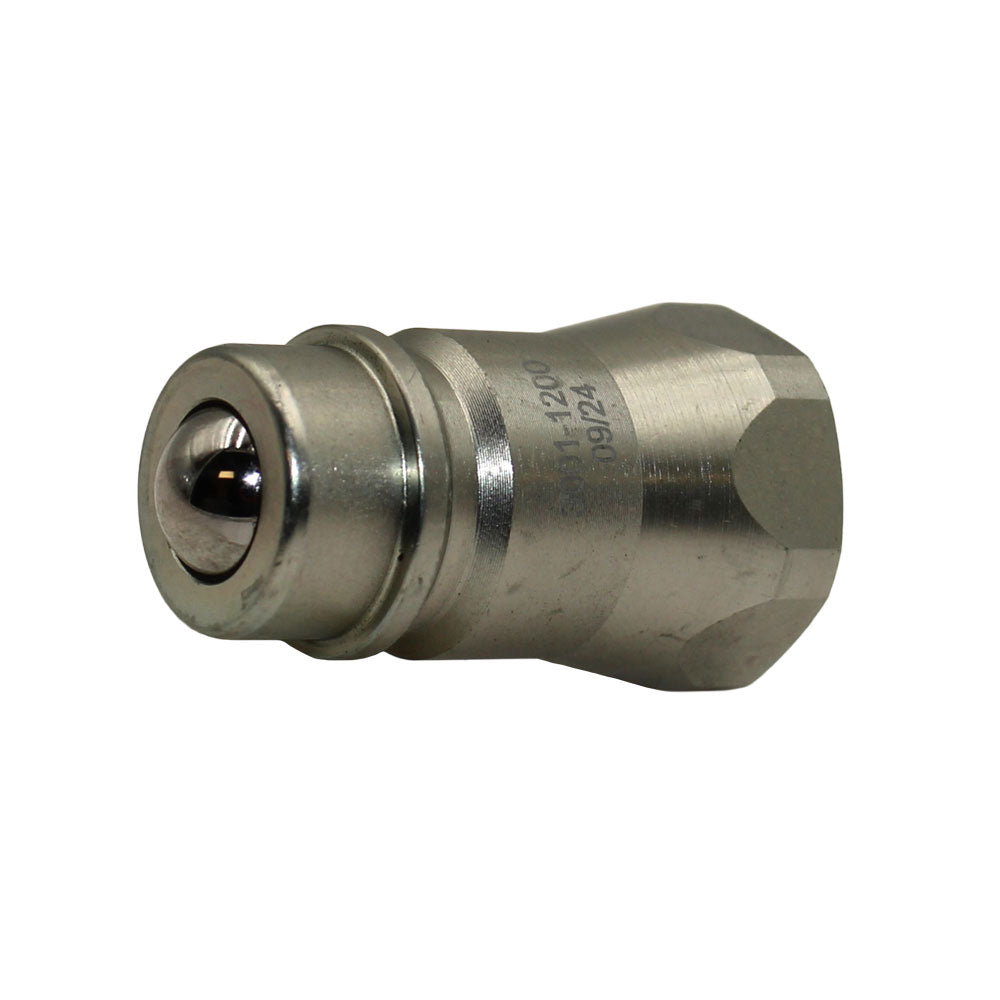

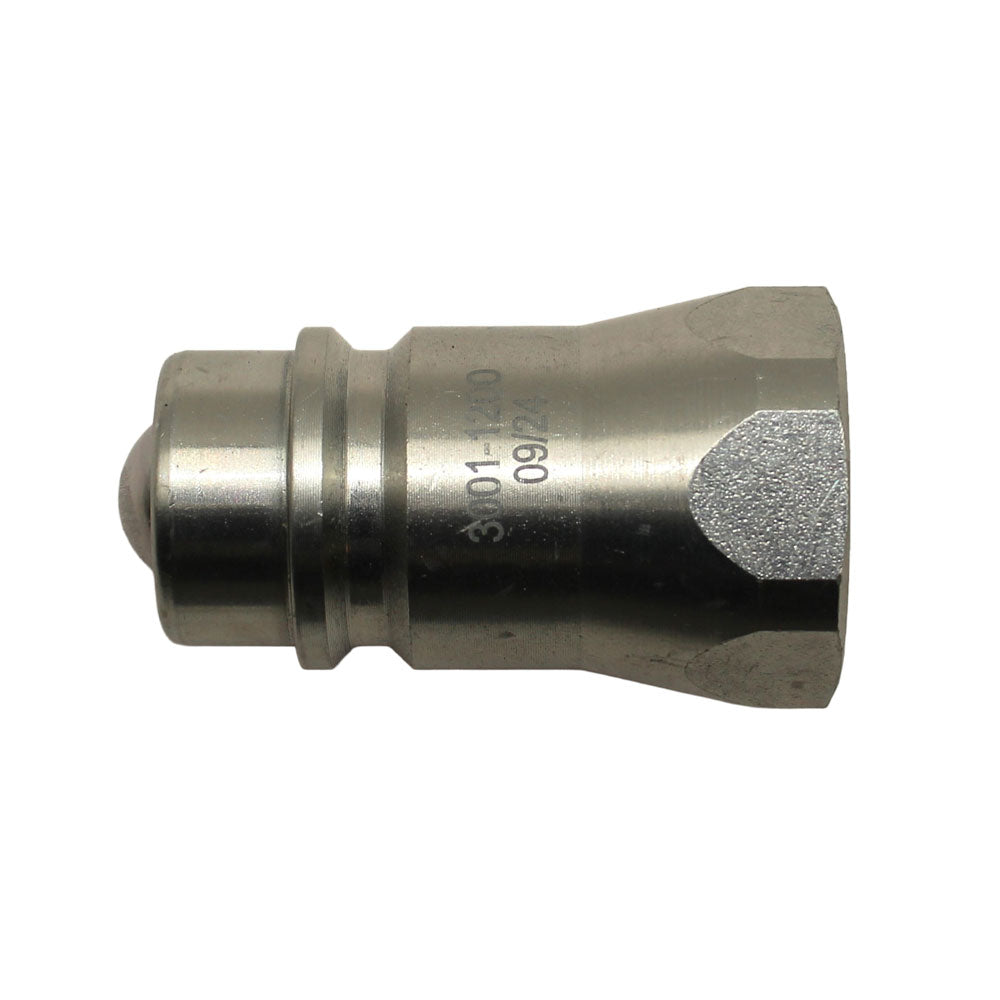

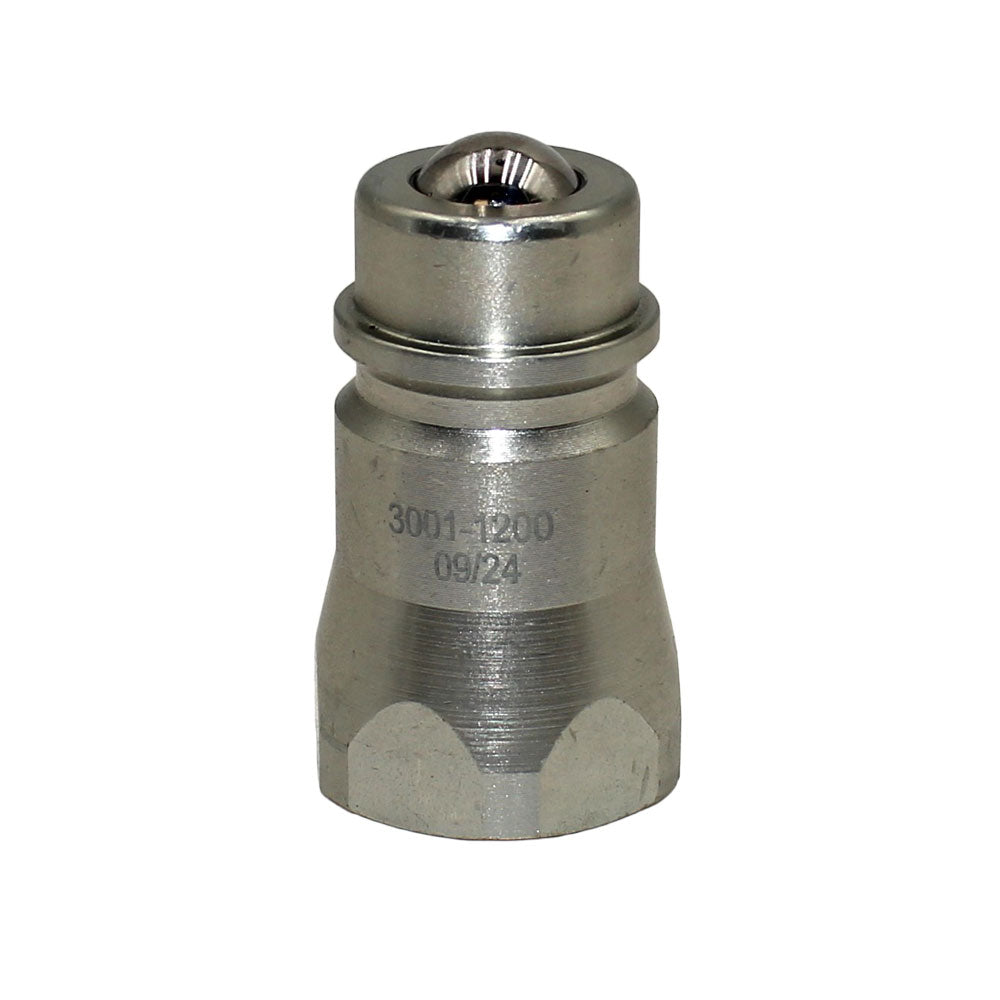

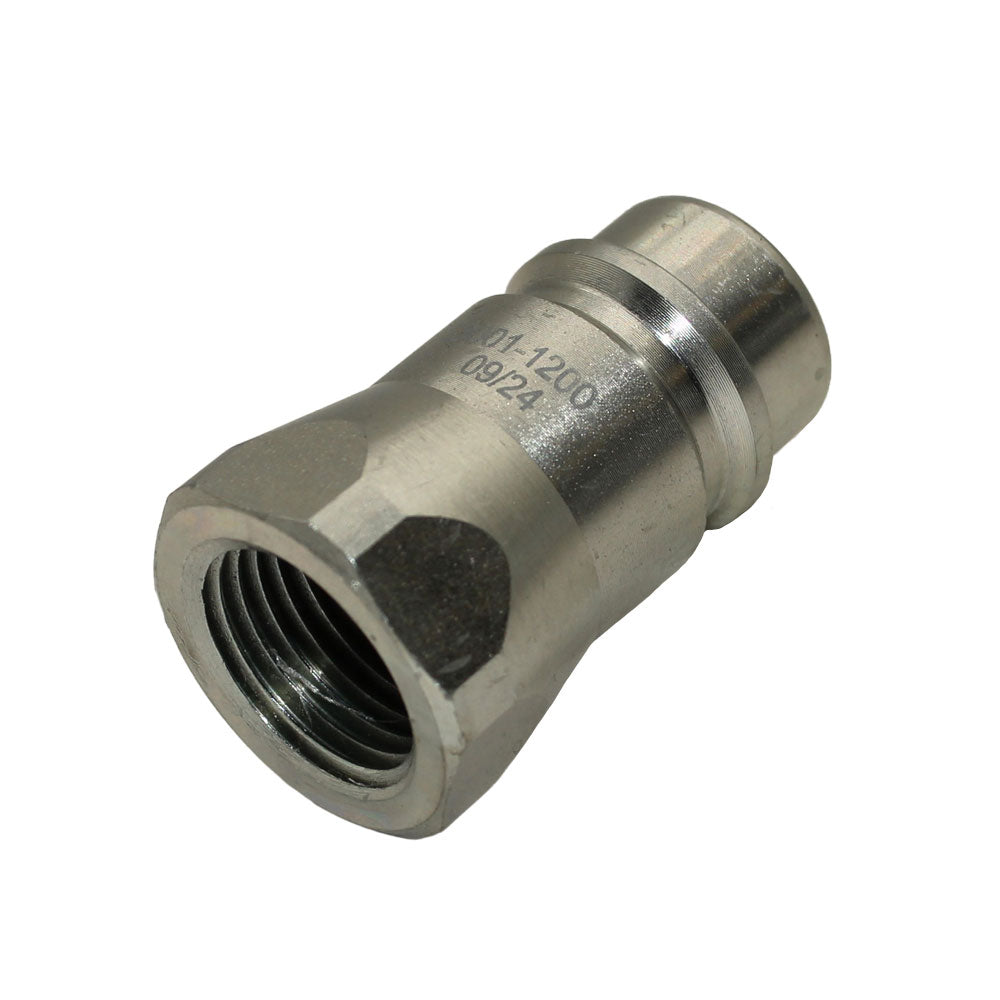

One New Aftermarket Replacement 8010-4 Male Hydraulic Coupler (Pioneer Tip) - 1/2" x 14 NPTF
This aftermarket replacement 8010-4 male hydraulic coupler is the universal standard male tip (Pioneer tip) used throughout the agricultural industry. Conforming to ISO 5675 requirements, it connects with 1/2" size 4000, 4200, 5000, 8200, and 9200 Series female couplers and is interchangeable with any nipple or tip conforming to ISO 5675. Suitable for use on tractors, swathers/windrowers, combines, and other farm and construction equipment from John Deere (JD), Case/Case IH/International Harvester (IH), AGCO/Allis Chalmers, Ford/New Holland (NH), and Vapormatic applications. Does not connect under pressure.
Specifications
- Thread Size: 1/2"-14 NPTF
- Coupler Body Size: 1/2 Inch
- Largest Diameter: 1.23 Inch
- Max Pressure: 3,000 PSI
- Rated Flow: 12 GPM
- Wrench Flats: 1-1/16 Inch
- Dust Cap Series: 5209-4M Series
- Connect Under Pressure: No
- Valve Type: Ball
- Body Material: Steel
Compatible Models
John Deere: 8820, 8830, 8840 Swather/Windrower; plus all tractors and equipment requiring ISO 5675-compliant 1/2" male hydraulic tips
Case / Case IH / International Harvester: Tractors and equipment requiring 1272770C1 or 1272770C2 series male hydraulic tip
AGCO / Allis Chalmers: Tractors and equipment requiring 594977 or 70594977 series male hydraulic tip
Ford / New Holland (NH): Tractors and equipment requiring EC0NB964AA series male hydraulic tip
Vapormatic: Equipment requiring VFL1059 series male hydraulic tip
Universal / Multi-Brand: Interchangeable with all ISO 5675 compliant couplers including Ball Seat Valve (IR), Poppet Seal Valve (IR/V), Push-Pull Coupling (IRS), ISO 7241-1, and 4050-4/8010-4 series
Replaces Part Number(s):
AF3212R, C14618, X8010-4, 594977, 70594977, 44S714, 5714, 8010-4, 80104, 31-0260, 4796-59396, VFL1059, A160937, 1272770C1, 1272770C2, EC0NB964AA
Aftermarket Interchange Numbers
Pioneer 8010-4; ISO 5675 compliant; interchanges with 4050-4 series
New aftermarket replacement part - not remanufactured, not used.
