8 Terminal PTO Push/Pull Switch Fits John Deere TG1860 TG1860G TCA21027

8 Terminal PTO Push/Pull Switch Fits John Deere TG1860 TG1860G TCA21027

£14.00 GBP
£14.00 GBP
Sale Sold out
Shipping calculated at checkout.

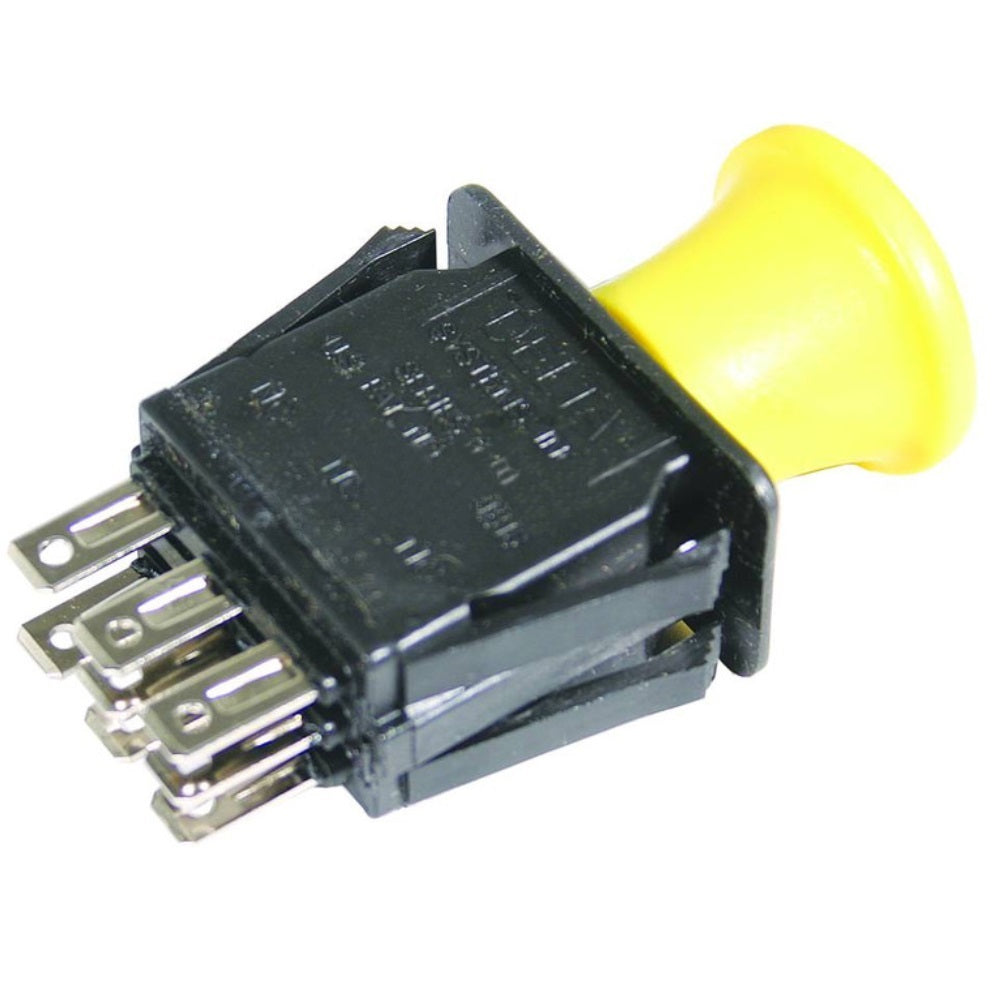

One New Aftermarket Replacement 8-Terminal PTO Push/Pull Switch for John Deere, Exmark, Toro, Scag, and More

This aftermarket replacement PTO (Power Take-Off) push/pull switch controls engagement and disengagement of the mower blade clutch system. It features a smooth (non-grooved) knob, snap-mount installation, 2 switch positions, and 8 terminals, making it a direct-fit replacement for the original John Deere TCA21027 and a wide range of cross-brand equivalents across riding mowers, zero-turn mowers, lawn tractors, and commercial walk-behind mowers.

Specifications

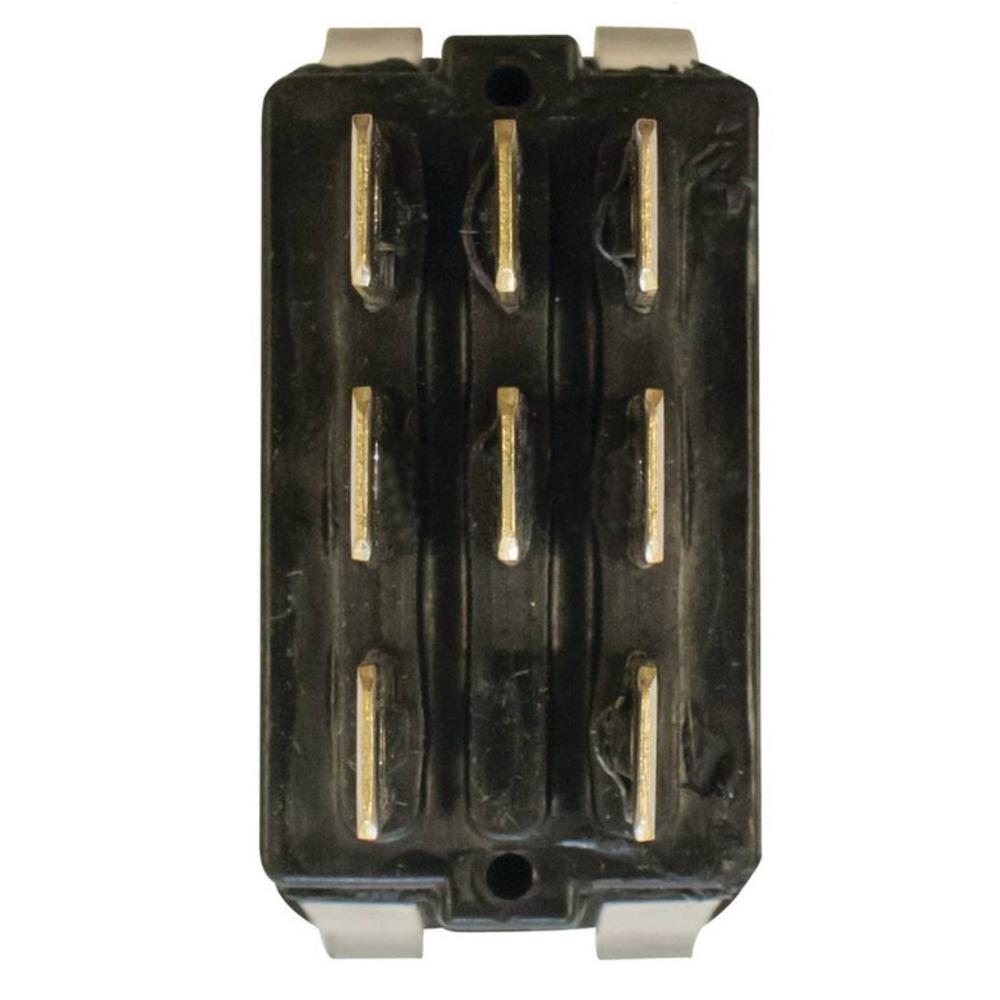

  • Number of Terminals: 8
  • Number of Positions: 2
  • Ignition Type: PTO
  • Knob Type: Push / Pull (smooth knob, not grooved)
  • Mount Type: Snap Mount

Compatible Models

John Deere (JD): TG1860, TG1860G, D160, D170, LA130, LA140, LA145, LA150, LA155, LA165, LA175, X130R, X140, X155R, X165, Lazer Z, Lazer XP, Z 500s Z Master

Exmark: Turf Tracer, Lazer Z, Lazer XP

Toro: Z 500s Z Master, 74269

Scag: Tiger Cat, Tiger Cat 2, STC48V, STC52V, STC61V, STCII-48V, STCII-52V, STCII-61V, Jaguar 685, Jaguar 690

Ariens: Medion 310, Medion 340

Bobcat: 61 in. Zero-Turn 200 942200-942299 Rider Drive Units; 930022, 930023, 922010, 934010A Gear Drives; 930000-936406A Power Units and Hydro Drives; 320 Series

Grasshopper: 720K, 721, 721D, 721D2, 721DH2, 721DT, 721G2, 722D2, 320, Dominator 78, Dominator 88, Dominator 98, Dominator 108, Mega 204, Mega 208, Mega 218

EverRide: Warrior

Yanmar: (via 172531-17300)

MTD: (via 725-07520)

Replaces Part Number(s):

John Deere: TCA21027, TCA17834, TCA22710, B1EM48, AM131966, AM119139, GY20939 | Exmark: 103-5221, 1-633673, 633673 | Toro: 103-5221, 1-633673 | Ariens: 00136574, 136574 | Bobcat: 4172503 | Grasshopper: 183925 | Scag: 481635 | Delta: 6201-342, 6204-342 | EverRide: 136574 | MTD: 725-07520 | Yanmar: 172531-17300, 17253117300

Aftermarket Interchange Numbers

00522100, 01545600, 722DT6, 722DT6-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

La175, STCII-48V, Tiger Cat, Dominator 88, Tiger Cat 2, 74269, X165, La145, STC61V, Dominator 78, Jaguar 685, 934010A, 320, La140, Medion 340, D160, Jaguar 690, STC52V, X155R, Lazer Z, 930000-936406A, D170, La165, Dominator 98, 200 942200-942299, Z 500's Z Master, 930023, Warrior, Dominator 108, La155, 922010, X140, La130, Mega 208, Medion 310, STCII-52V, La150, 930022, Mega 204, STCII-61V, X130R, STC48V, Lazer XP, Mega 218, Turf Tracer

Additional Information:

Smooth Knob (not with Grooves). Number of Positions: 2 Number of Terminals: 8 Ignition Type: PTO Knob Type: Push / Pull Mount Type: Snap Mount

Reference Numbers:

AM119139, GY20939, 481635, 103-5221, 1-633673, 633673, 00136574, 136574, 136574, 103-5221, 1-633673, 4172503, 183925

Product Sub Group:

Switches
