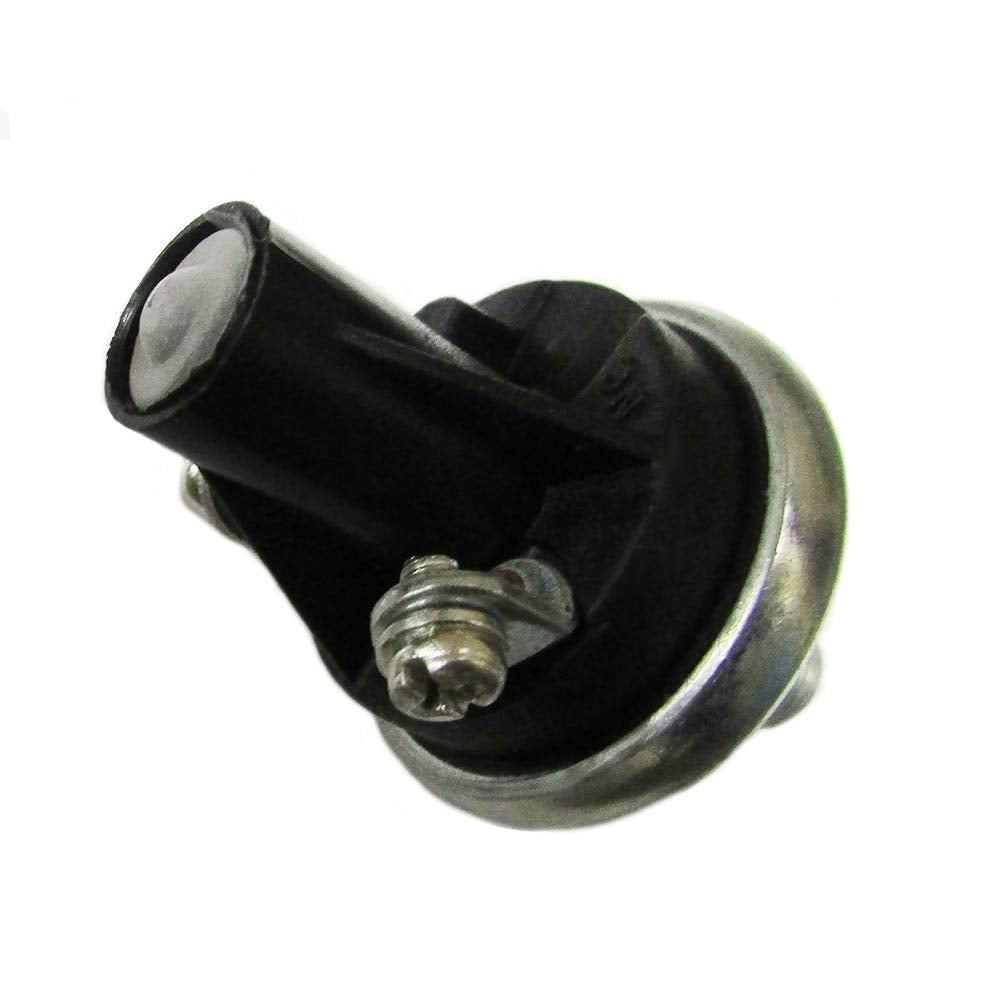

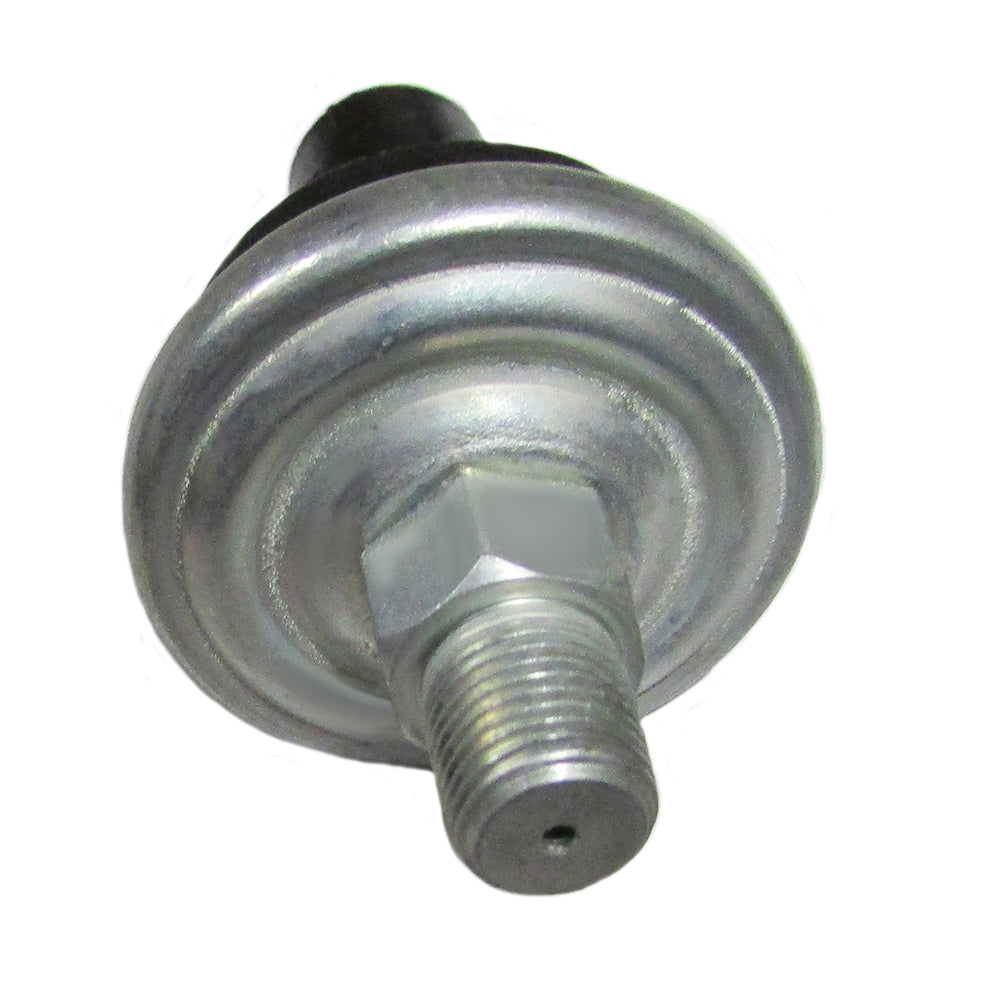

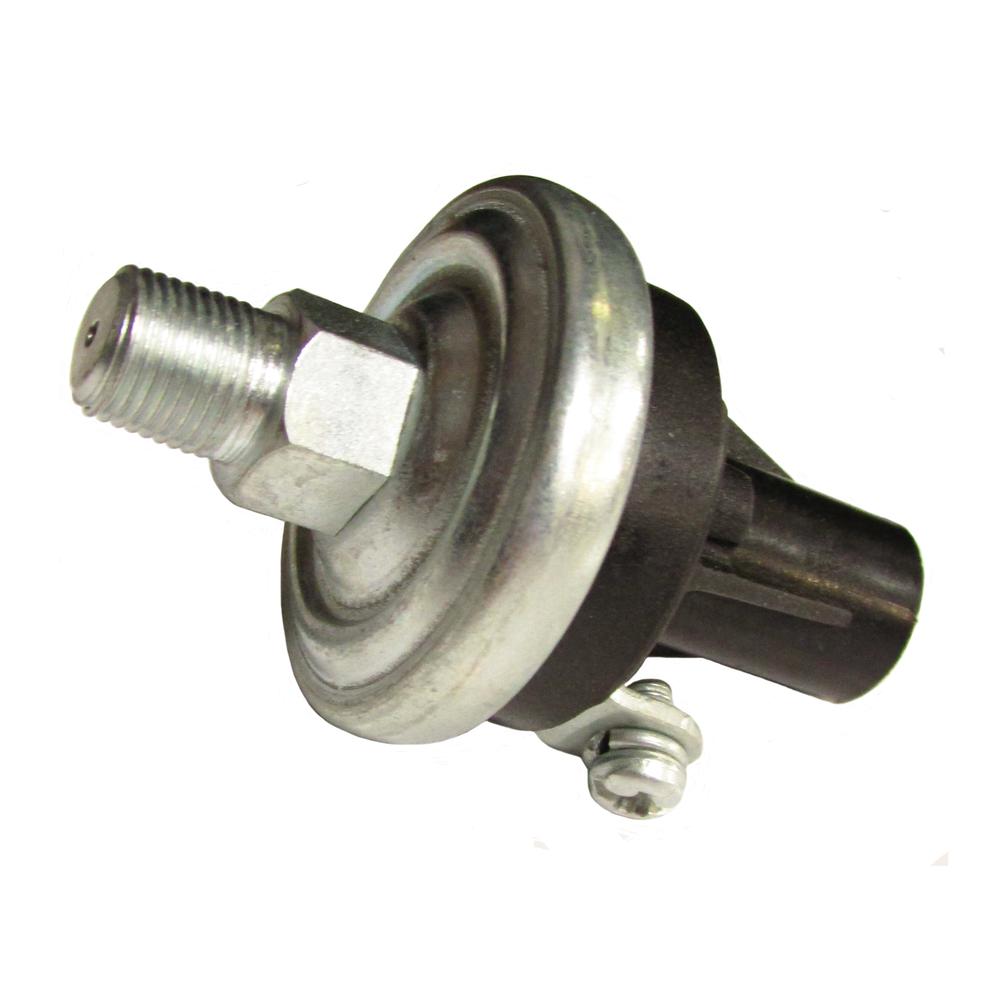

765754 76575 4 Pressure Switch Fits Hobbs Fits Honeywell 10203567100

Name: 765754 76575 4 Pressure Switch Fits Hobbs Fits Honeywell 10203567100
SKU: 76575-4_6
Price: 17.0 USD
Availability: InStock

765754 76575 4 Pressure Switch Fits Hobbs Fits Honeywell 10203567100

£17.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Adjustable Pressure Switch

Fits Caterpillar - Various Models

Tech Info:
Extended Duty Switch
Single Pole, Single Throw
Normally Open
Terminal: # 8-32 Screw
Base: Plated Steel
Diaphragm: Polymide Film
Termination: Screw
Contact(s): Silver Alloy, Gold Plated
Circuit: Single Circuit, Two Terminals
Connector(s): 1/8-27 NPT Male Thread
Cover Type: Glass Reinforced Polyester
Contact Setting: 3.1 PSI to 7 PSI
Factory Setting: 4 PSI
Operating Pressure: 150 PSI
Proof Pressure: 500 PSI
Burst Pressure: 750 PSI
Resistive Rating: 15 Amps @ 6V DC
Resistive Rating: 8 Amps @ 12V DC
Resistive Rating: 4 Amps @ 24V DC
Inductive Rating: 1 Amps @ 120V AC
Inductive Rating: 0.5 Amps @ 240V AC

Replaces Part Numbers: 4D4785 9G8010 2Y4439 2N7744 8N2326 2Y4437 6N2466

Models This Part Fits:

4D-4785, M4006-4

Additional Information:

Single Circuit With Two Insulated Terminals. This Is A 4 # N/O Pressure Switch Typically Used To Activate Hour Meters From The Engine Oil Pressure Contact Setting: 3.1 Psi To 7 Psi Factory Setting: 4 Psi Operating Pressure: 150 Psi Proof Pressure: 500 Psi Burst Pressure: 750 Psi Normally Open. Closes At 4 Psi. 1/8" Male Pipe Thread Connection Extended duty switch. Normally open. Single pole, single throw. #8-32 screw terminal. Plated steel base. Polyamide film diaphragm. Silver alloy, gold plated contacts. Glass reinforced polyester cover. 15 amps @6V DC resistive rating. 8 amps @ 12V DC resistive rating. 4 amps @ 24V DC resistive rating. 1 amps @ 120V AC inductive rating. 0.5 amps @ 240V AC inductive rating. 40°F to 250°F temperature.
