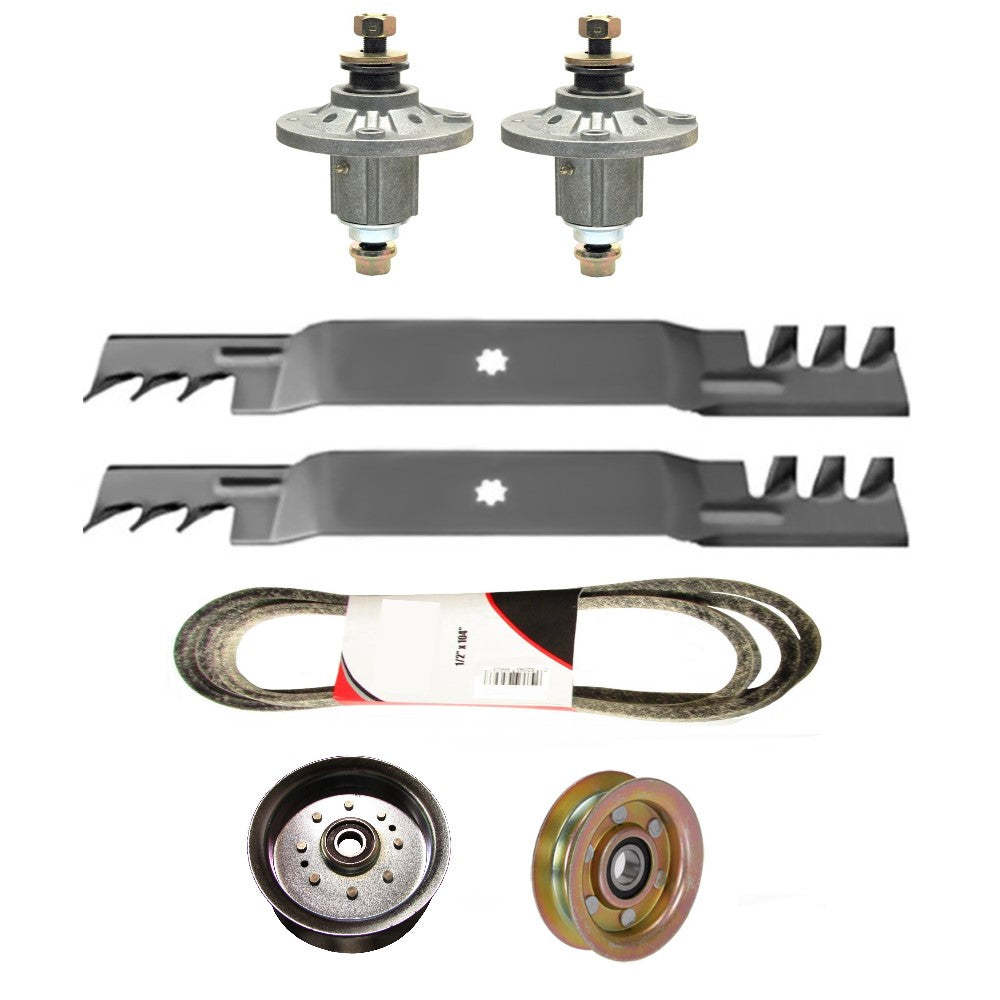

Spindle Assembly & Blade Kit Fits MTD Replaces 756-05034

Spindle Assembly & Blade Kit Fits MTD Replaces 756-05034

£75.00 GBP
£75.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Spindle Assembly & Blade Kit

Tech Info:
 -Kit Includes:
 -(2) Spindle Assembly w/ Nut, (2) Toothed Mulching Blades, (1) Platform Drive Mower Belt, (1) Steel Flat Idler Pulley w/ Flange, (1) Flat Idler Pulley
 -
 -(2) Spindle Assembly w/ Nut Specifications:
 -7 Pt. Star
 -Replaces Part Number(s):
 -GX20234, GX22456, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625
 -
 -(2) Toothed Mulching Blade Specifications:
 -Length: 21-3/8"
 -Width: 2-1/2"
 -Thickness: .197
 -Center Hole: 7 Lobe
 -Replaces Part Number(s):
 -AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, M149625, M74175
 -
 -(1) Platform Drive Mower Belt Specifications:
 -Width: 1/2"
 -Length: 103.75"
 -Replaces Part Numbers: GX20072, GX20072JD, GY20570JD
 -
 -(1) Steel Flat Idler Pulley w/ Flange Specifications:
 -Inner Diameter: 11/16"
 -Outer Diameter: 5-1/4" Including Flanges
 -Height: 1-3/4"
 -Replaces Part Numbers: AUC17621, GY20110, GY20629, GY22082
 -
 -(1) Flat Idler Pulley Specifications:
 -Inner Diameter: 11/16"
 -Outer Diameter: 3-5/8"
 -Height: 1-3/16"
 -Replaces Part Numbers: GY20067, GY22172

Fits MTD:
 Models: 13AL795S004, 13AX795S004, 17ARCBDT897, 13A8A1KS897, 17ARCBDW897, 13APA1KT897, 12ABW32G897, 13APA1KS897, 13AQA1KQ897, 14A7A3KA897, 13A879KS897, 17BRCACQ897, 17AQNAEU897, 17BRCACW897, 13AQA2KW897, 13AXA1KS897, 14A7A3KW897, 13A878KT897, 13A277KS897, 17ARCBDQ099, 12ABW35T799, 131PA1ZS099, 132PA1ZS099, 131QA1ZT099, 13AQA1ZT099, 13AQA1ZT299, 132QA1ZT099, 13BQA1ZT099, 13BQA1ZT299, 13APA1ZS099, 13A7A1ZW099, 13B7A1ZW099, 1417A3ZW099, 14A7A3ZW099, 1427A3ZW099, 14A7A5ZQ099, 14B7A3ZW099, 13A278XS299, 13A878XS099, 13A277XS299
 Replaces Part Number(s): 756-05034, 756-05034A

Models This Part Fits:

E110, E100, S120, Requires 2 Blades for a 42" Cut, D125, LT180 (Belt, D100, X310 (Traction Drive), 105, L110, X127, X145, SST15, 102, X300, LA100, 115, LT160 (Belt, S100, Z235 EZTRAK, S110, X110, LA135, LA110, D110, LA125, X107, D105, X105, X126, 107S, X125, LA105, X304 (Belt, 135, D120, D130, X120, S240, LA115, LA120, SST16, 125, Z225 EZTRAK, Traction Drive), E130, E120, LT170 (Belt

Additional Information:

(2) Spindle Assembly w/ Nuts, (2) Toothed Mulching Blades, (1) Platform Drive Mower Belt, (1) Steel Flat Idler Pulley w/ Flange, (1) Flat Idler Pulley (2) Spindle Assembly w/ Nuts 7 Pt. Star Replaces Part Number(s): GX20234, GX22456, AUC15811, GX21694, GY20454, GY20867, GY20962, GY21098, M149625 (2) Toothed Mulching Blades Length: 21-3/8" Width: 2-1/2" Thickness: .197 Center Hole: 7 Lobe Replaces Part Number(s): AM137328, AM137333, AM141033, GM149625, GX21694, GX22151, GY20850, M149422, M149625, M74175 (1) Platform Drive Mower Belt Width: 1/2" Length: 103.75" Replaces Part Numbers: GX20072, GX20072JD, GY20570JD (1) Steel Flat Idler Pulley w/ Flange Inner Diameter: 11/16" Outer Diameter: 5-1/4" Including Flanges Height: 1-3/4" Replaces Part Numbers: AUC17621, GY20110, GY20629, GY22082 (1) Flat Idler Pulley Inner Diameter: 11/16" Outer Diameter: 3-5/8" Height: 1-3/16" Replaces Part Numbers: GY20067, GY22172

Reference Numbers:

578431911, GY20067, GY22172, AUC17621, GY20110, GY20629, GY22082

Product Sub Group:

Deck Components
