Piston Ring Set Fits Massey Ferguson 230 20 245 40 150 135

Name: Piston Ring Set Fits Massey Ferguson 230 20 245 40 150 135
SKU: 745826M91
Price: 14.0 USD
Availability: InStock

Piston Ring Set Fits Massey Ferguson 230 20 245 40 150 135

£14.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Piston Ring Set Fits Massey Ferguson, Perkins, Landini, Fits Allis Chalmers and More

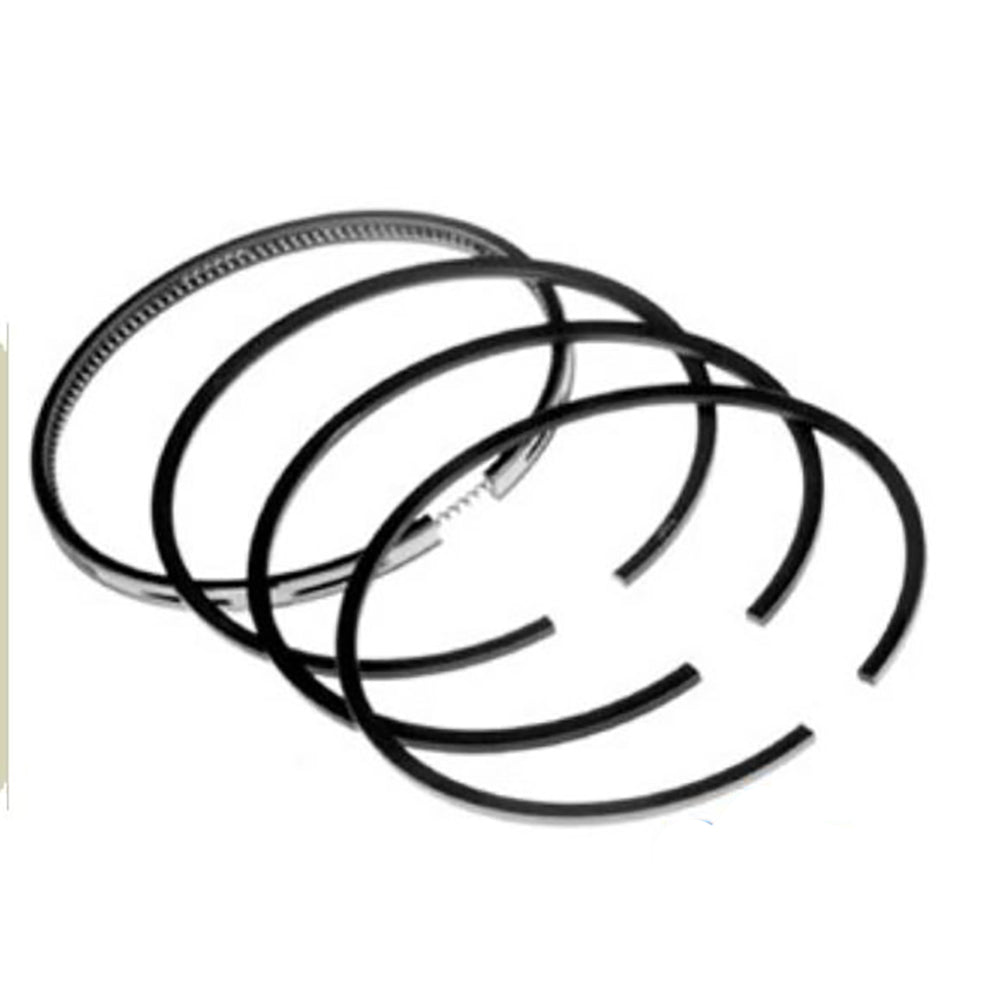

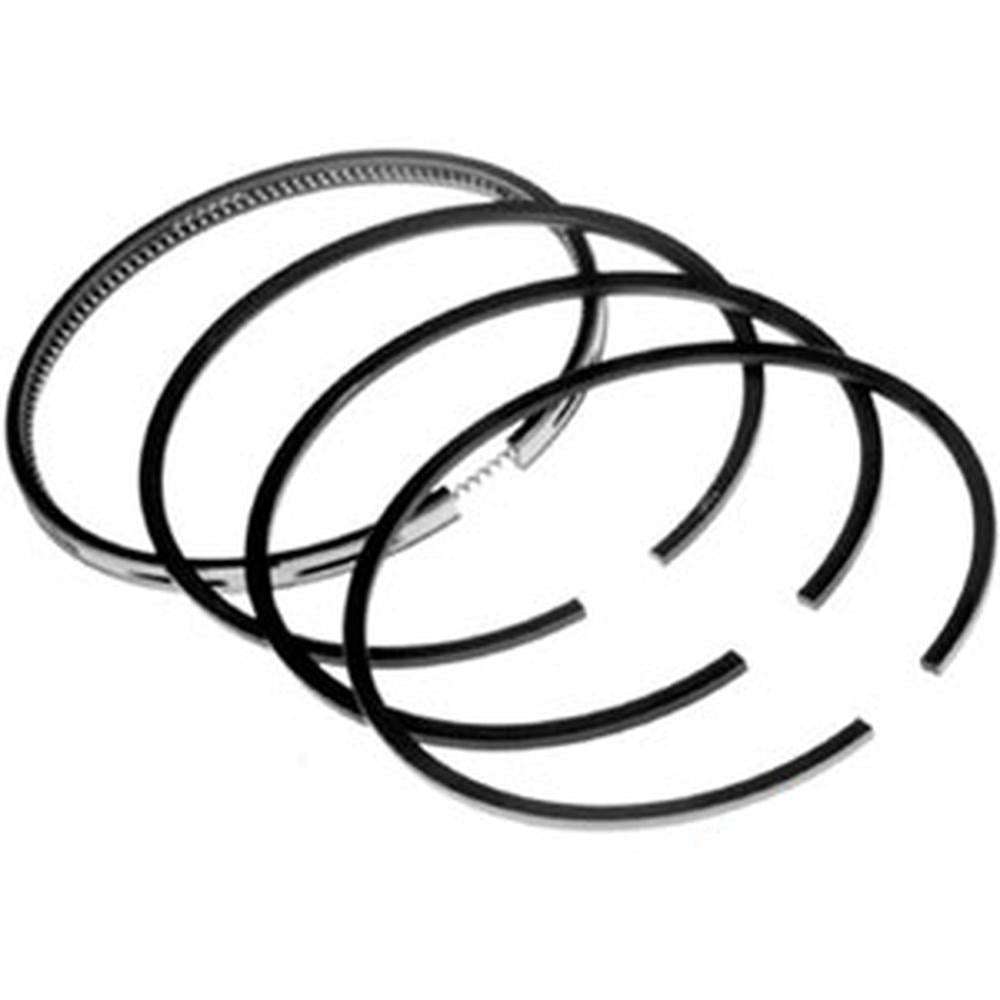

This aftermarket piston ring set is a per-cylinder replacement for engines powered by the Perkins AD3.152 and A3.152 three-cylinder diesel engine family. This engine was widely used across Fits Massey Ferguson tractors, Landini tractors, Fits Allis Chalmers equipment, Clark and Hyster/Yale forklifts, and Fits Caterpillar industrial machines. The set includes 4 rings per cylinder: a chrome-plated parallel-faced top ring, two compression rings, and an oil control ring.

Specifications

Bore: 3.602" (91.49mm)
Top Groove Size: 0.094" (2.38mm) - Chrome Plated Parallel Faced
2nd Groove Size: 0.094" (2.38mm) - Parallel Faced Plain
3rd Groove Size: 0.094" (2.38mm)
4th Groove Size: 0.188" (4.76mm) - Oil Control
Number of Rings: 4 per cylinder (1 cylinder set)
Engine: Perkins AD3.152 / A3.152 Direct Injection

Compatible Models

Fits Massey Ferguson (MF) Tractors: 20, 20C, 20D, 20F, 30, 30B, 30D, 30E, 30H, 40, 40B, 50, 65, 135, 140, 148, 150, 152, 154, 154-4, 154C, 155, 158, 160, 165, 200, 203, 230, 231, 233, 234, 235, 240, 244CF, 245, 250, 253, 254, 254-4, 254C, 255, 260, 302, 304, 340, 342, 350, 353, 353LX, 354, 356, 356CF, 360, 550, 560, 765, 2135, 2205, 2244, 2500, 3165, 4500, MF20, MF20C, MF20D, MF20F, MF30, MF30B, MF30E, MF30H, MF40, MF40B, MF50, MF200, MF200B, MF300, MF302, MF304, MF356, MF2135, MF2200, MF2244, MF2500, MF3165, MF4500

Perkins Engines: AD3.152, A3.152, AD4.203, A4.203, T3.152.4

Landini Tractors: 154C, 233, 234, 244CF, 253, 254, 254C, 300, 340, 342, 350, 353LX, 354, 356CF, ADVANTAGE 55, Fits Blizzard 50, GLOBUS 50, REX 55, TREKKER 55

Fits Allis Chalmers: 2200, 2205, 5500, 5530, 5530F, 5560, 5830, 5840, 5860, 5870, 6040, CF5030, CF5830

Clark Forklifts: C500, C500H-40-560, C500Y-40-560, C5500, C5830, V40C, V40-60C

Hyster/Yale Forklifts: H60-80C, H60-80E, 60-70-80D, L779

Fits Caterpillar (Fits CAT) Industrial: T40C, V40C

Perkins Engine Build List (serial number restrictions apply): CE: 21489, 21690, 21899, 21906, 22003 (U676641H and above), 22309, 22310, 22311, 22372, 22438, 22463-22465, 22467, 22651, 22665, 22680, 22706, 31089, 80079, 80141, 80236 (U676641H and above). JE: 21315, 21586, 21907, 22046, 22466, 22472, 22494, 22499, 22707, 31053, 33174, 70033, 80130 (U589378L and below or U589378L and above -- verify applicable build list).

Replaces Part Number(s):

41158065, 141158065, 745826M91, 745826V91, 745826M1, 7458356M91, 86781, 903-036, HCP1158065

Aftermarket Interchange Numbers

Sparex S.40419

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

20C, 260, MF20, MF20F, 230, GLOBUS 50, REX 55, 154C, 253, 2244, MF200, MF50, 244CF, 250, 30H, 340, 203, 304, C5500, 5530, 200, 5830, 50, 2500, 550, 255, H60-80E, MF2244, 353, V40C, 135, MF200B, 165, 4500, 360, 154-4, MF20C, MF304, A4.203, 5530F, 30, MF3165, BLIZZARD 50, MF30B, MF30H, MF40, AD3.152 (CE), C5830, C500, 2200, 30D, 5560, MF4500, MF2135, 40, 20, ADVANTAGE 55, 148, 356, 350, CF5030, A3.152, MF20D, 200B, V40-60C, 5860, MF302, 254C, 4.203.2, 353LX, 300, 765, L779, 5500, MF30, T3.152.4 (CN), 560, 155, 3165, 234, 30E, 5870, 5840, 6040, MF356, 342, CF5830, 302, 140, T40C, MF2200, TREKKER 55, 2205, 235, MF300, 231, MF30E, 154, MF2500, 354, 150, 60-70-80D, 20F, H60-80C, C500Y-40-560, 356CF, 160, 245, 30B, 254, C500H-40-560, 40B, 233, 152, AD4.203 (JE), 65, 254-4, 40-50, MF40B, 240, 158, 20D, 2135

Additional Information:

Bore: 3.602" Top Groove Size: 0.094" 2nd Groove Size: 0.094" 3rd Groove Size: 0.094" 4th Groove Size: 0.188" This is a 1 Cylinder Set

Reference Numbers:

41158065, 745826M91, 903-036, HCP1158065, 141158065, 41158065, 745826M91, 86781, 41158007, 41158065, 86781, 745826M91, 745826V91, 745826M1, 7458356M91, 86781, 41158065, 41158065, 745826M91, 903-036, HCP1158065
