Mower Deck Rebuild Kit Fits Troy Bilt Replaces 742-0616 Made with Aramid

Mower Deck Rebuild Kit Fits Troy Bilt Replaces 742-0616 Made with Aramid

£93.00 GBP
£93.00 GBP
Sale Sold out
Shipping calculated at checkout.

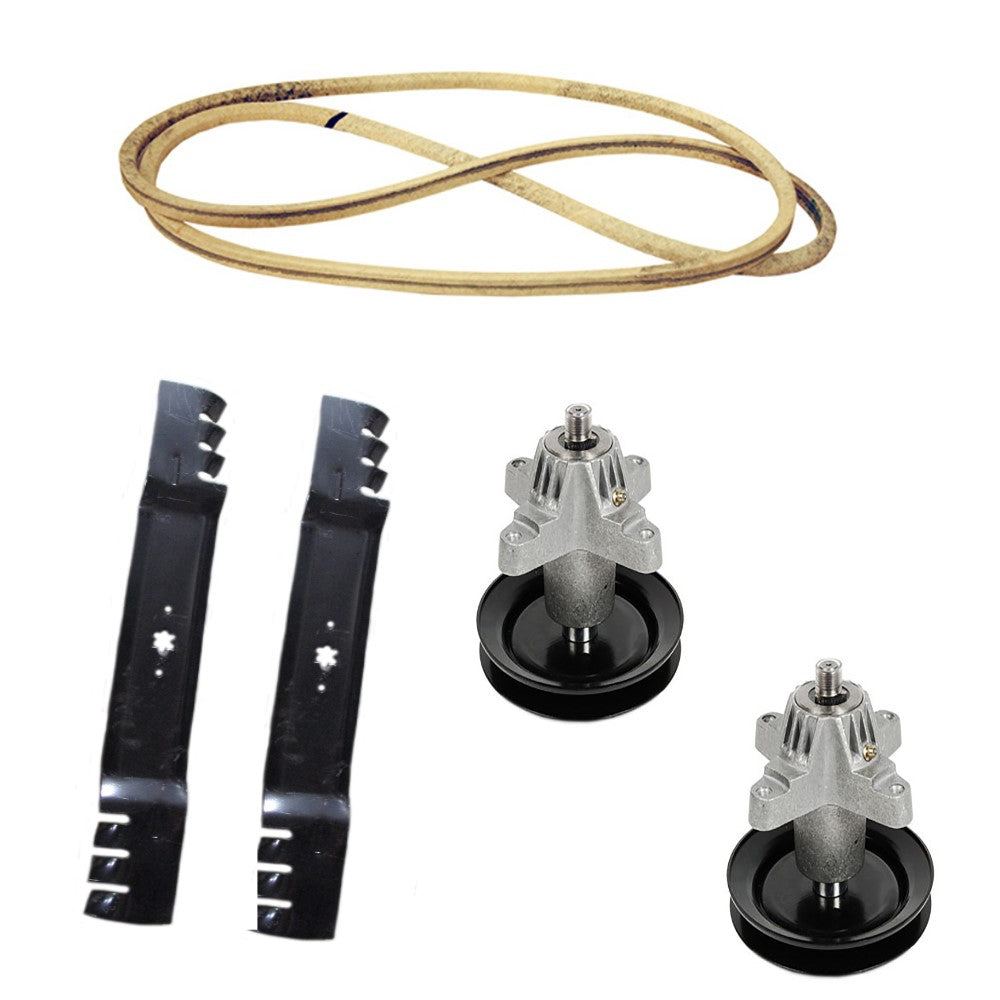

One New Aftermarket Mower Deck Rebuild Kit

Tech Info:
 -(2) Spindle Assembly w/ Pulley
 -Height: 6-3/8"
 -Pulley O.D.: 6-5/16"
 -4 Bolt Spindle w/ 6 point Star Design
 -Replaces Part Number(s): 918-0659, 618-0659, 618-0659A, 918-0659A, 918-0624A, 9180624B
 -
 -(2) Toothed Commercial Mulching Blade
 -Length: 21-3/16”
 -Width: 3”
 -Diameter of Outside Holes: 5/16”
 -Center to Center: 2-½"
 -C.H. Diameter: 6 Point Star
 -Thickness: 0.1580”
 -Replaces Part Number(s): 942-04126, 942-04126-X, 742-04126, 942-0616-X, 742-0616, 942-0616A, 942-04308-X, 742P04308X
 -
 -(1) Deck Drive Belt
 -Width: 1/2"
 -Length: 96.50"
 -Made w/ Wrapped Made With Aramid Cord
 -Replaces Part Number(s): 754-04060, 954-04060, 754-04060B, 954-04060B, 754-04060C, 954-04060C

Fits Troy Bilt:
 Replaces Part Number(s): 742-0616, 742-0616A-0637, 942-0616, 942-0616A

Models This Part Fits:

42" Decks

Additional Information:

(2) Spindle Assembly w/ Pulleys Height: 6-3/8" Pulley O.D.: 6-5/16" 4 Bolt Spindle w/ 6 point Star Design Replaces Part Number(s): 918-0659, 618-0659, 618-0659A, 918-0659A, 918-0624A, 9180624B (2) Toothed Commercial Mulching Blades Length: 21-3/16” Width: 3” Diameter of Outside Holes: 5/16” Center to Center: 2-½" C.H. Diameter: 6 Point Star Thickness: 0.1580” Replaces Part Number(s): 942-04126, 942-04126-X, 742-04126, 942-0616-X, 742-0616, 942-0616A, 942-04308-X, 742P04308X (1) Deck Drive Belt Width: 1/2" Length: 96.50" Made w/ Wrapped Aramid Cord Replaces Part Number(s): 754-04060, 954-04060, 754-04060B, 954-04060B, 754-04060C, 954-04060C

Reference Numbers:

742-0616, 742-0616A-0637, 942-0616, 942-0616A

Product Sub Group:

Deck Components
