Mower Deck Rebuild Kit Fits Troy Bilt Replaces 742-04244 Made with Aramid

£170.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Mower Deck Rebuild Kit

Tech Info:

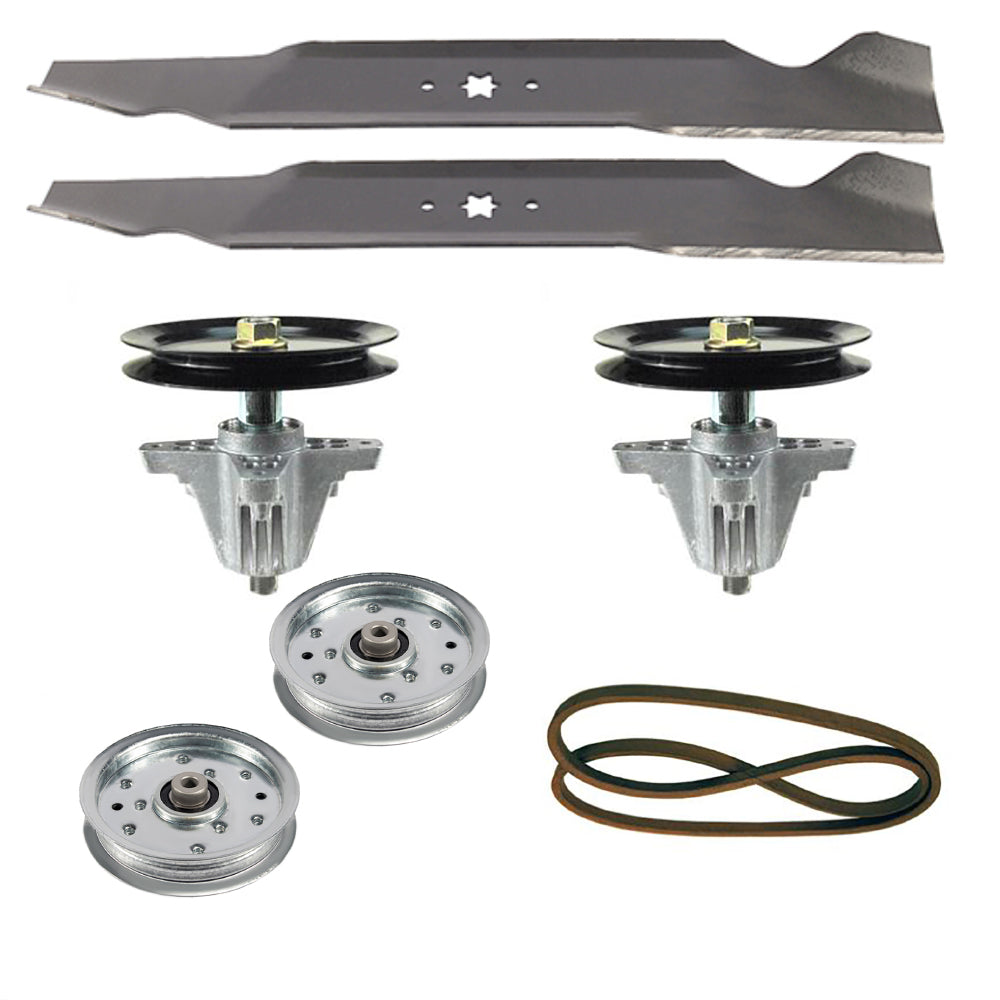

-Kit Contains:
-
-(2) Mower Deck Spindle with Pulley
-Pulley Diameter: 6-1/2",
-Height: 6-13/16",
-Center Hole: 6 Point Star,
-For 46" Decks w/ (2) Blades
-Replaces Part Number(s): 618-04636, 918-04636, 918-04685
-
-(2) Flat Idler Pulley
-For 38", 42", 46" and 54" Decks
-Inside Diameter: 3/8"
-Outside Diameter: 4-7/8"
-Height: 1"
-Replaces Part Number(s): 753-08171, 756-04129, 956-04129
-
-(1) Deck Belt
-Width: 1/2",
-Length: 103.25",
-Made w/ Wrapped Made With Aramid Cord,
-For 46" Decks w/ (2) Blades
-Replaces Part Number(s): 754-04219, 954-04219
-
-(2) Standard Lift Mower Blade
-CH Diameter: 6 Point Star,
-Length: 23-1/4",
-Width: 3",
-Thickness: 0.1600",
-Diameter of Outside Holes: 0.4010"
-Replaces Part Number(s): 742-04290, 942-04290, 742-04244, 942-04244

Fits Troy Bilt:
Zero-Turn Mower Models: KT735-3013, 17ARCACT011
Replaces Part Number(s): 742-04290, 74204290, 942-04290, 94204290, 742-04290A, 74204290A, 942-04290A, 94204290A, 742-04244, 74204244, 942-04244, 94204244, 742-04244A, 74204244A, 942-04244A, 94204244A

Models This Part Fits:

17ARCACT011, KT735-3013

Additional Information:

(2) Mower Deck Spindle with Pulleys Pulley Diameter: 6-1/2" Height: 6-13/16" Center Hole: 6 Point Star For 46" Decks w/ (2) Blades Replaces Part Number(s): 618-04636, 918-04636, 918-04685 (2) Flat Idler Pulleys For 38", 42", 46" and 54" Decks Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Replaces Part Number(s): 753-08171, 756-04129, 956-04129 (1) Deck Belt Width: 1/2" Length: 103.25" Made w/ Wrapped Aramid Cord For 46" Decks w/ (2) Blades Replaces Part Number(s): 754-04219, 954-04219 (2) Standard Lift Mower Blades Center Hole Diameter: 6 Point Star Length: 23-1/4" Width: 3" Thickness: 0.1600" Diameter of Outside Holes: 0.4010" Replaces Part Number(s): 742-04290, 942-04290, 742-04244, 942-04244

Reference Numbers:

742-04290, 74204290, 942-04290, 94204290, 742-04290A, 74204290A, 942-04290A, 94204290A, 742-04244, 74204244, 942-04244, 94204244, 742-04244A, 74204244A, 942-04244A, 94204244A
