Deck Rebuild Kit Fits Craftsman fits MTD LT2000 918-04822A 942-04308 954-04060

Deck Rebuild Kit Fits Craftsman fits MTD LT2000 918-04822A 942-04308 954-04060

£148.00 GBP
£148.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Deck Rebuild Kit

Fits Cub Cadet Models: CC30 Mini Rider, LTX1040, LTX1042, EZT-L42, RZT-42, RZT-L42 and RZT-S42, 2011 and 2014

Fits Craftsman Models: Some LT2000

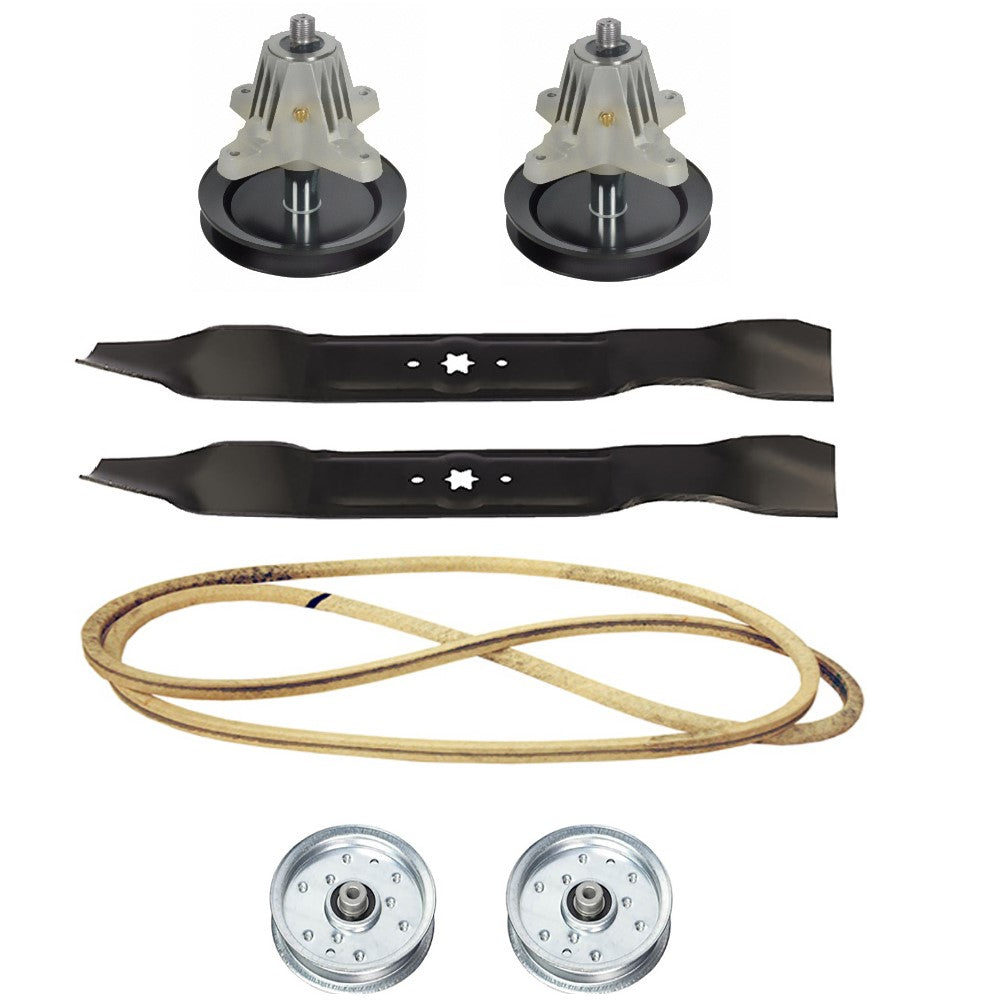

Kit Contains:
(2) Spindle Assembly
OD of Pulley: 6"
Specially designed: to replace 6 pt. star spindle shaft
Pulley included
No threads in housing, use Thread Cutting Bolts

Replaces Part Numbers:
618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950

(2) Flat Idler Pulley (Zinc)
Inside Diameter: 3/8"
Outside Diameter: 4-7/8"
Height: 1"
Material: Metal (Zinc Coated)
Type: Heavy Duty

Replaces Part Numbers:
756-04129B, 756-04129C, 956-04129, 956-04129C, 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C

(3) Mulching Blades
2 Blades required per machine for 42" Cut
C to C: 2-1/2"
Center Hole: 6-Point Star
Length: 21-3/16"
Outer Hole Dia.: 5/16"
Thickness: 0.156"
Type: High Lift - Notched
Width: 3"

Replaces Part Numbers:
742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, 112-0315, 98022

(1) 96.50" Deck Drive Belt
Belt Type: Covered
Width: 1/2"
Length: 96-1/2"

Replaces Part Numbers:
SPM201671081, 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, GX10851, 954-04060C, GX10851

Models This Part Fits:

13WX90AS010, 42" Decks, LTX1040, LT1042, 13AN791G755, LT1040, 13AX90AS009, 13AX90AS010, M1642, 13RX90AS056, LTX1045 RZT42, LTX1042

Additional Information:

(2) Spindle Assemblies OD of Pulley: 6" Specially designed: to replace 6 pt. star spindle shaft Pulley included No threads in housing, use Thread Cutting Bolts Replaces Part Numbers: 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950 (2) Flat Idler Pulleys (Zinc) Inside Diameter: 3/8" Outside Diameter: 4-7/8" Height: 1" Material: Metal (Zinc Coated) Type: Heavy Duty Replaces Part Numbers: 756-04129B, 756-04129C, 956-04129, 956-04129C, 753-08171, 756-04129B, 756-04129C, 956-04129, 956-04129C (3) Mulching Blades 2 Blades required per machine for 42" Cut C to C: 2-1/2" Center Hole: 6-Point Star Length: 21-3/16" Outer Hole Dia.: 5/16" Thickness: 0.156" Type: High Lift - Notched Width: 3" Replaces Part Numbers: 742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, 112-0315, 98022 (1) 96.50" Deck Drive Belt Belt Type: Covered Width: 1/2" Length: 96-1/2" Replaces Part Numbers: SPM201671081, 754-04060, 754-04060A, 754-04060B, 954-04060, 954-04060A, 954-04060B, GX10851, 954-04060C, GX10851

Reference Numbers:

490-110-M115, 742-04087, 7420616, 742-0616, 742-0616A, 742-0616A-0637, 942-04087, 942-0616, 942-0616A, GW-7420616, OEM-742-0616, 42" Decks, 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 754-04060B, 754-04060C, 954-04060B, 954-04060C, 490-110-M115, 742-04087, 742-04087-0637, 742-04126, 7420616, 742-0616, 742-0616A, 742-616A, 942-04087, 942-04126, 942-0616, 942-0616A, 942-616, GW-7420616, OEM-742-0616, 754-04060, 754-04060B, 754-04060C, 954-04060, 954-04060B, 954-04060C, 490-110-C109, 490-110-C122, 490-110-M115, 742-04087, 742-04126, 7420616, 742-0616, 742-0616A, 942-04087, 942-04126, 942-0616, 942-0616A, GW-7420616, OCC-742-0616, OEM-742-0616
