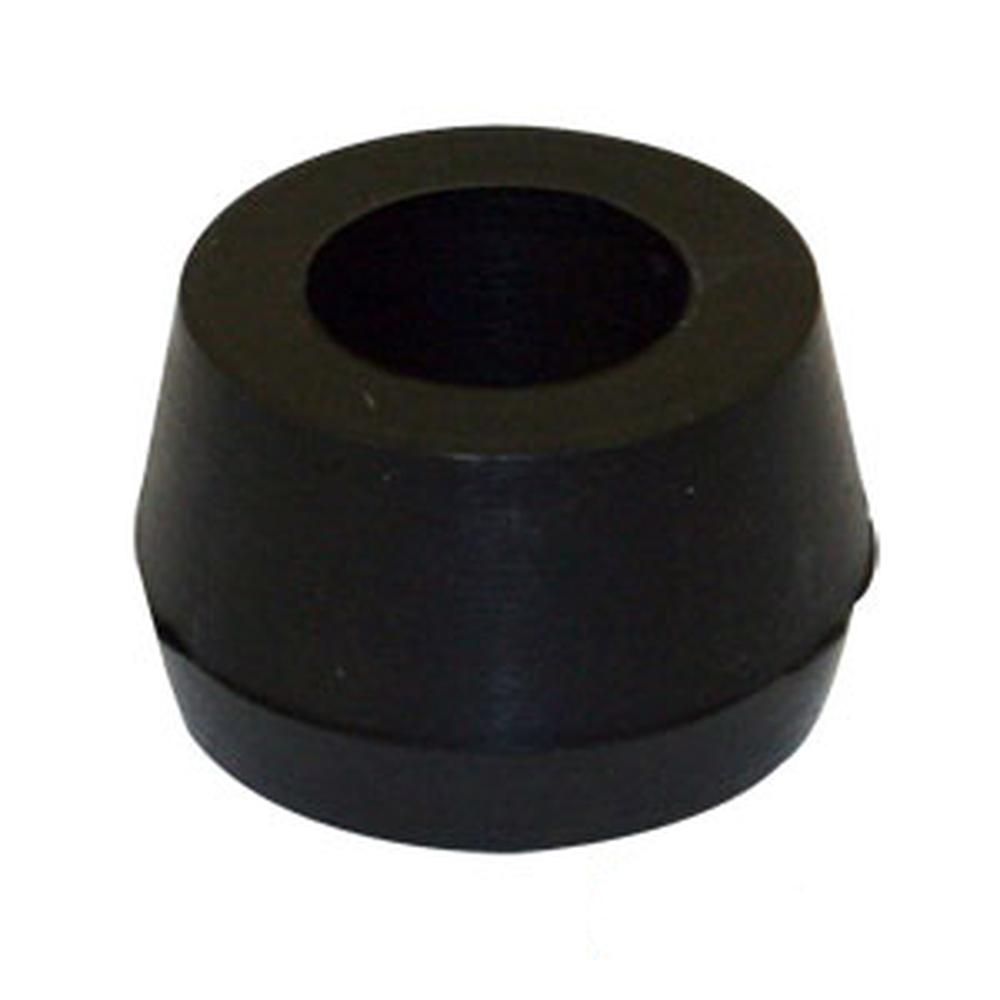

Seat Shock Bushing 2020 2510 2520 3010 3020 4000 4010 4020 5010 Fits John Deere

Name: Seat Shock Bushing 2020 2510 2520 3010 3020 4000 4010 4020 5010 Fits John Deere
SKU: 72696R1
Price: 10.0 USD
Availability: InStock

Seat Shock Bushing 2020 2510 2520 3010 3020 4000 4010 4020 5010 Fits John Deere

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Seat Shock Bushing 2020 2510 2520 3010 3020 4000 4010 4020 5010 Fits John Deere 325

Fits John Deere Models: H (When equipped with the optional Monroe seat), 1020, 1030, 1035, 1520, 2020, 2030, 2035, 2130, 2135, [ 2140, 3040, 3140 (SN: 430000 & up) ], 2350, 240, 2440, 2510, 2520, 2550, 2630, 2750, 2940, 2950, 3010, 3020, 3130, 3135, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4350, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 50, 520, 530, 620, 630, 720, 730, 80, 820 2 cylinder, 830 2 cylinder (With Float Ride Seat) ], 5010, 5020, 6030, 7020, 7520, 8430, 8630, Industrial: 300, 301, 302, 310, 400, 401, 410, 570, 600, 670, 690, 700, 760, 770

Replaces Part Numbers: F3296R, R26832

Specifications:

Bushing For Horizontal Bolt Hole

Measures 1.223" OD at the Largest Point

Hole ID is .597"

Models This Part Fits:

4050, 4055, 2520, 2N, G, 720, 4520, 4450, DC, Jubilee, 4320, 1030, 2350, 555, 730, 220, D, WD, D21, 4020, 5020, 8430, DC-4, 2940, 7085, 44, 185, 830, 7050, 2550, 2510, 6500, RC, 9N, L, 7520, Challenger, Mustang (23), 3010, 6100, WD45, 2630, DCS, 2750, D17, 4455, DI, 7060, NAA, SC-4, 8N, U, 1520, WC, BIG, SC-3, 6030, 7010, A, 4440, 3020, 30, DC-3, 570, DH, 4010, 780, 7080, BF, 550, D15, DO, 7030, 444, 4840, 175, BG, 4240, CC, 560, LA, 4255, SO, 4620, 4040, C, B, 4650, 2030, 7000, WF, CA, 7020, 2130, 4640, 300B, 4430, 170, 80, 300, 190XT, CI, D12, 22, General, 2280, 190, 4250, 4850, 6600, 530, 4230, 33, D14, 50, S, 8630, D19, 5010, 2950, 210, 800, 620, 520, 4030, 333, 7580, 630, 7040, SC, 1020, 2020, 440, SI, 4000, 6700, DV, 820 2 cylinder, 180, 7045, 830 2 cylinder, 4630, 880, 200, D10

Additional Information:

Outer Diameter: 1.223" Inner Diameter: 0.597" Length: 0.724" overall 2 to 4 used per shock This bushing is for the horizontal bolt hole Steel pivot bushing sold separately ABC4270
