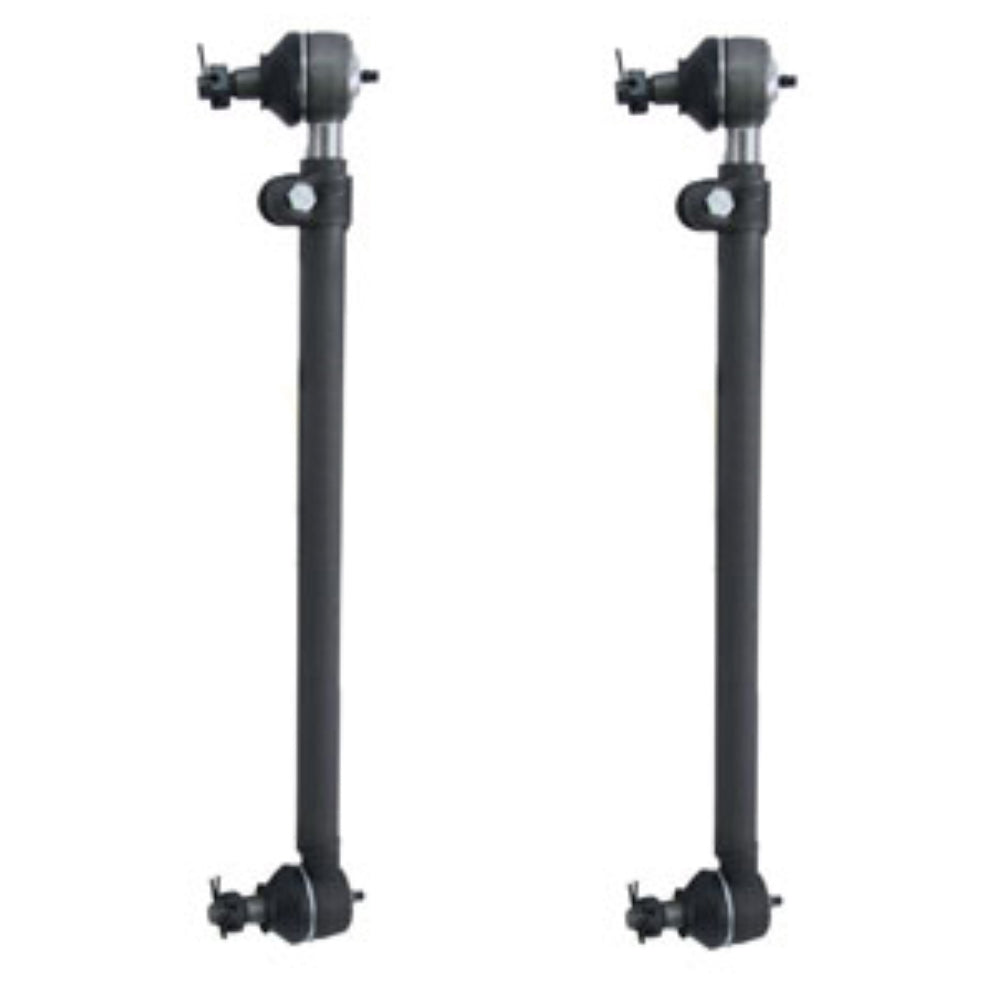

2-Qty Tie Rod Assembly Fits Allis Chalmers D15 170 WD45 175 WD190 D14 180 185 D1

Models This Part Fits:

190XTIII, 190XT, D15, 170, 200, D17, 185, WD, WD45, 180, D14, D19, 190

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418
