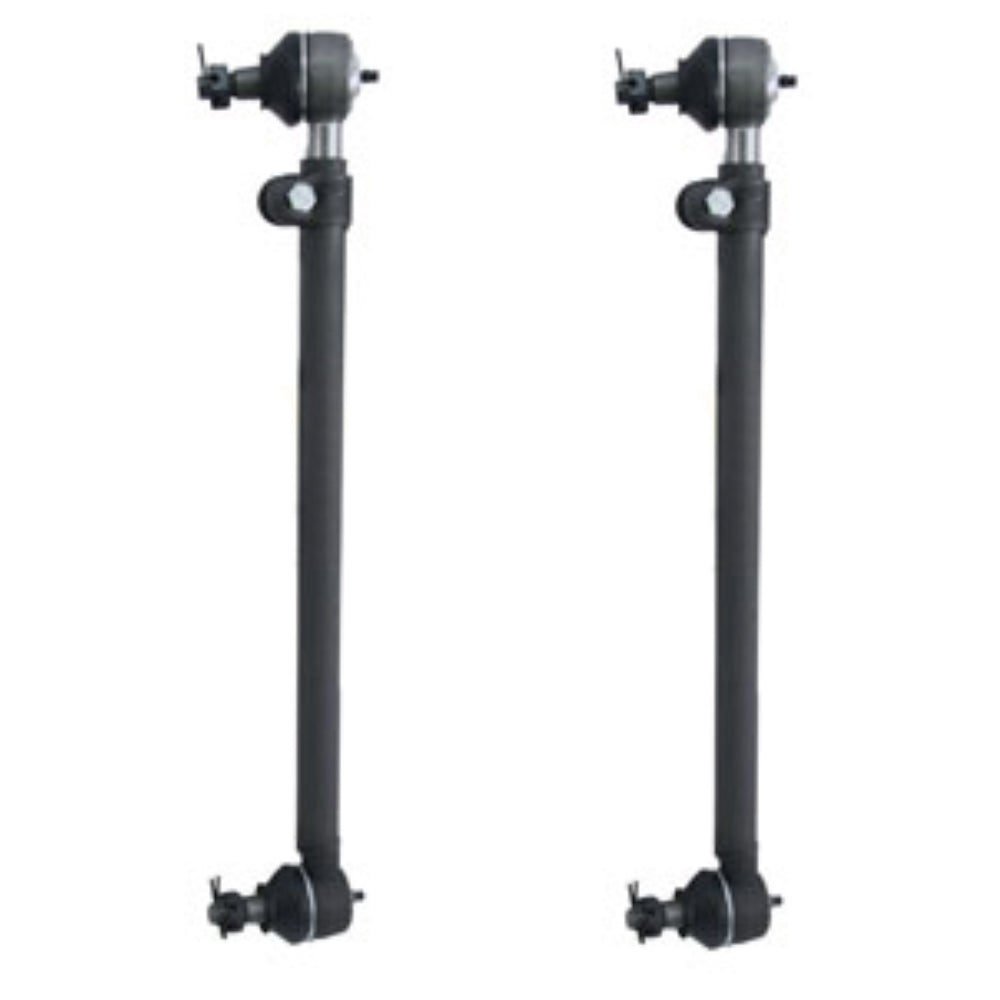

Qty 2: Complete Tie Rod Fits Allis Chalmers Replaces 70227830

Qty 2: Complete Tie Rod Fits Allis Chalmers Replaces 70227830

£131.00 GBP
£131.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Qty 2: Complete Tie Rod

Tech Info:
 -The inside tie rod measures 16-3/8" long from the grease fitting to the end
 -0.782" diameter rod
 -Outer tube is 17-3/8" long from the grease fitting to the end
 -1.56" tube outside diameter
 -The tie rod end tapers from 0.660" to 0.735"
 -Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center)
 -Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Made to Fits Allis Chalmers:
 Models: D19, 185, 190, 190XTIII, D15, D14, 190XT, WD, WD45, 180, D17, 170, 200
 Replaces Part Number(s): 70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418

 Models: D19, 185, 190, 190XTIII, D15, D14, 190XT, WD, WD45, 180, D17, 170, 200
 Replaces Part Number(s): 70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418

Models This Part Fits:

190XT, 170, D17, 190, 190XTIII, D15, 180, WD, D14, 185, WD45, 200, D19

Additional Information:

The inside tie rod measures 16-3/8" long from the grease fitting to the end 0.782" diameter rod Outer tube is 17-3/8" long from the grease fitting to the end 1.56" tube outside diameter The tie rod end tapers from 0.660" to 0.735" Extended length with tie rod inserted 3 1/4 inches is 30 1/2 inches.(measurement from tie rod center to tie rod center) Collapsed it is 18 3/4 inches. (measurement from tie rod center to tie rod center)

Reference Numbers:

70254660, 70250141, 70254661, 70227830, 70254662, 70253249, 70247836, 70235789, 70249418
