6L7237 Regulator Fits Caterpillar
6L7237 Regulator Fits Caterpillar
Couldn't load pickup availability

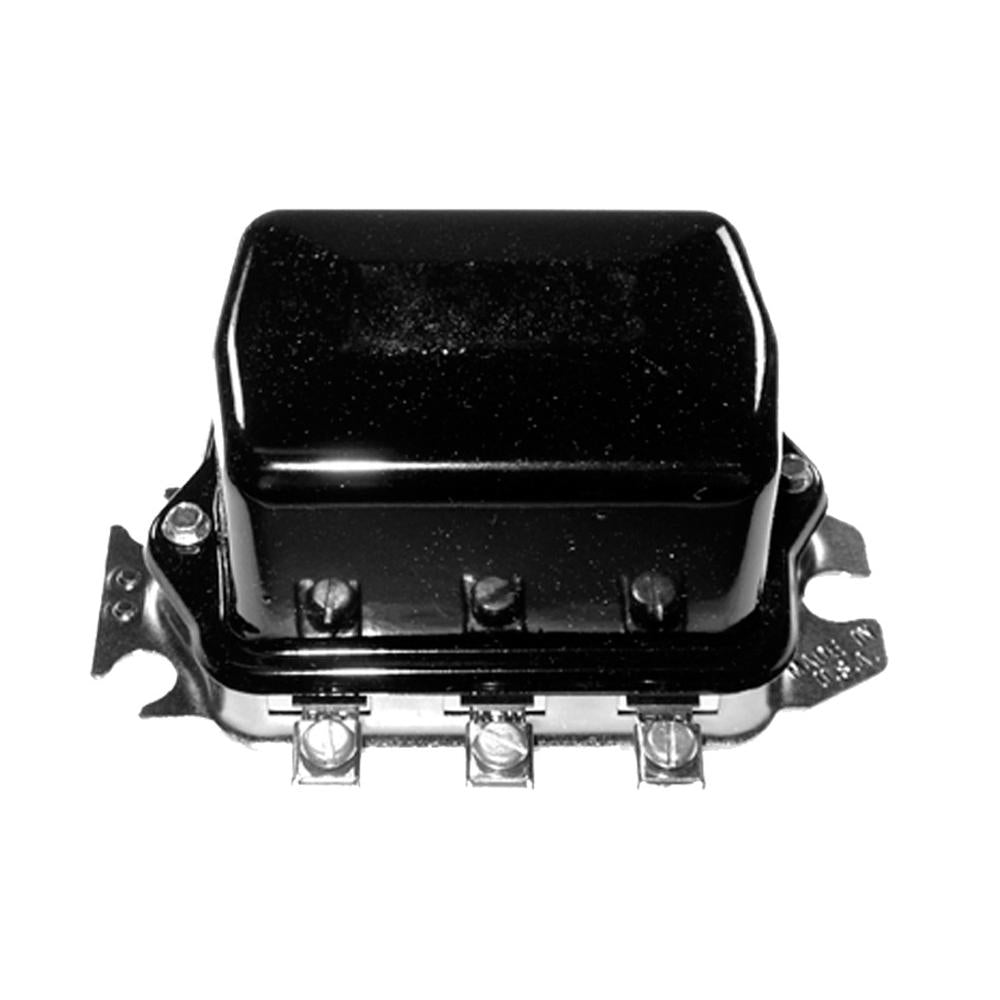

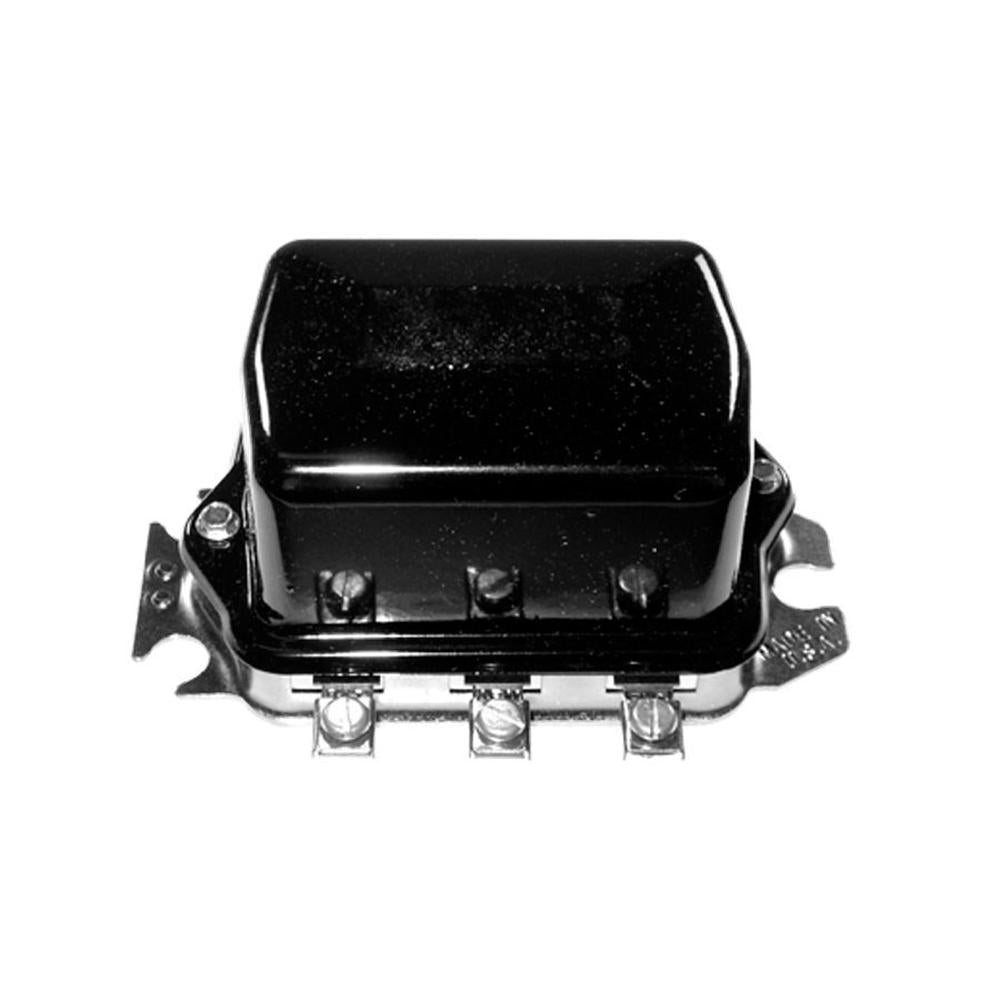

One New Aftermarket Replacement Voltage Regulator for Caterpillar (Cat) Industrial and Truck Applications
This mechanical voltage regulator is a direct aftermarket replacement for Caterpillar part number 6L7237, designed for use on Delco generators in 24-volt electrical systems. It is a three-unit, A-circuit type regulator with four terminals (BAT, ARM, FLD, GRD located on the rear of the base), dual polarity, and adjustable output.
Specifications
- System Voltage: 24 Volt
- Amperage: 18-22 Amps
- Circuit Type: A-Circuit
- Polarity: Negative or Positive (Dual Polarity)
- Number of Units: 3
- Terminals: 4 (BAT, ARM, FLD, GRD - rear of base)
- Adjustable: Yes
- Brush Holder Included: No
- Rectifier Included: No
Compatible Applications
Caterpillar: Industrial and truck applications equipped with Delco generators
Delco Generators: 1101904 (25A, 24V, CCW), 1101905 (25A, 24V, CCW), 1101911 (25A, 24V, CCW), 1101920 (25A, 24V, CW), 1101922 (25A, 24V, CCW)
Replaces Part Number(s):
6L7237 (Caterpillar), 1118281 (Delco), 1118737 (Delco), 1118799 (Delco), 1119185 (Delco)
Aftermarket Interchange Numbers
WAI D2150, WAI 81-1904, WAI RVR2150, Atlantic Quality Parts 3500-0570, Standard Motor Products 2150, 2150-002, 0212150-280, 231-12012, 811904
New aftermarket replacement part - not remanufactured, not used.
