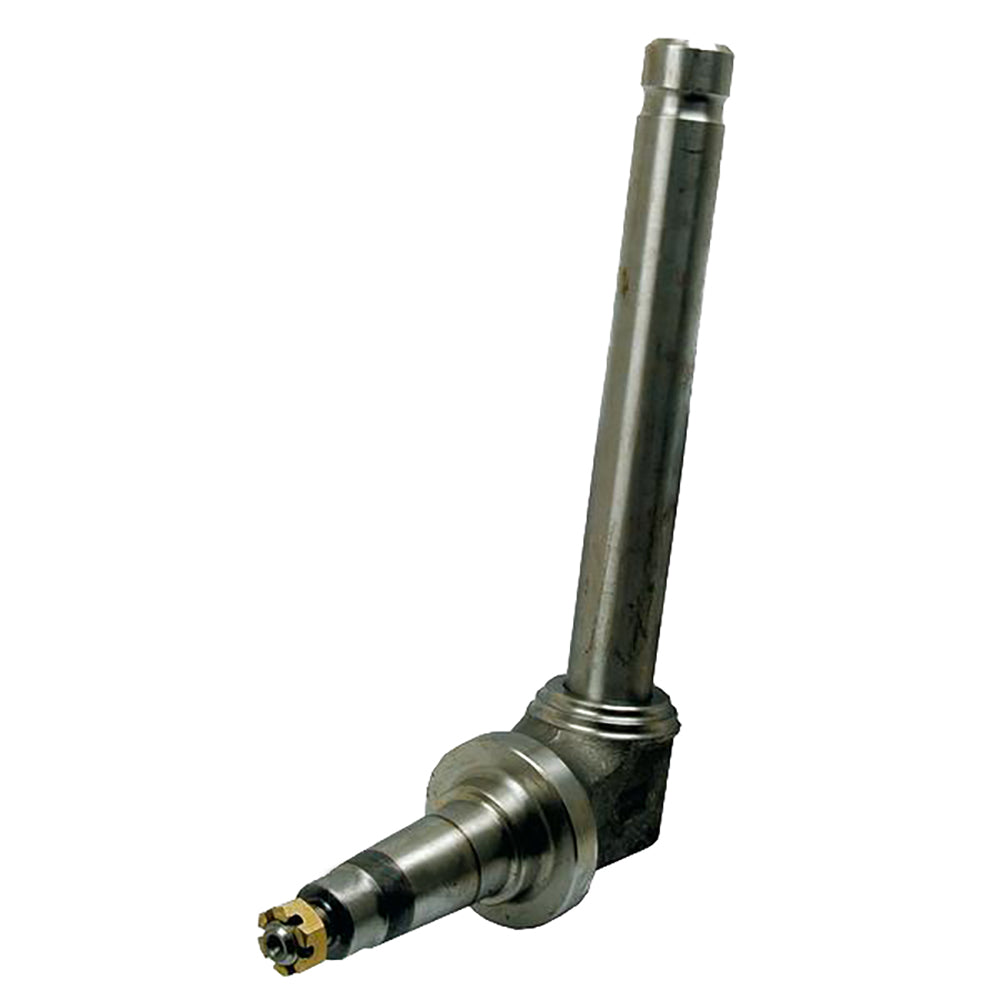

67535C91 Spindle Right or Left Hand Fits Case 3220 3230 4210 Tractors

Name: 67535C91 Spindle Right or Left Hand Fits Case 3220 3230 4210 Tractors
SKU: 67535C91
Price: 133.0 USD
Availability: InStock

67535C91 Spindle Right or Left Hand Fits Case 3220 3230 4210 Tractors

£133.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Left Hand Wheel Spindle that Fits Case/International Harvester Tractor models: 238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 695, 695XL, 795, 895

Tech Info:
Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)

Replaces Part Number: 67535C91

Models This Part Fits:

585, CX90, CX70, C60, 2500A, 485, 895, CX60, 995, C70, 695, 258, 595, 385, CX50, C90, 674, 3230, CX100, CX80, 454, 2400A, 484, C80, 584, C100, C50, 4240, 4210, 574, 4230, 248, 3220

Additional Information:

Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
