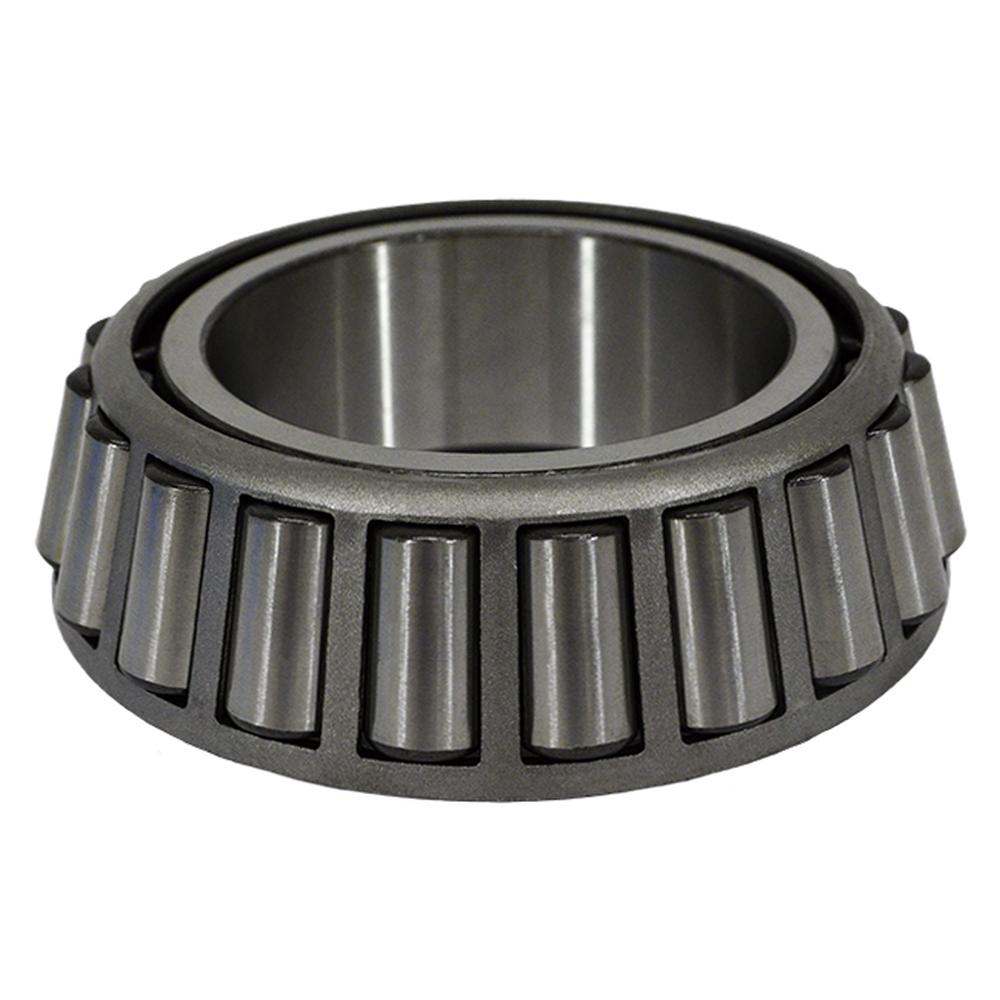

One New Aftermarket Replacement 663 Bearing Cone for NTN Tapered Roller Bearing Applications
This aftermarket replacement 663 bearing cone is a single-row tapered roller bearing cone designed for use in J Series and inch-series tapered roller bearing assemblies. The 663 cone handles both radial and axial (thrust) loads and is paired with a mating cup (sold separately) in heavy-duty drivetrain, axle, differential, and wheel end applications across construction, agricultural, and industrial equipment.
Specifications
- Type: Tapered Roller Bearing Cone, Single Row
- Bore Diameter: 3.2500 in (82.55 mm)
- Cone Width: 1.6250 in (41.275 mm)
- Max Shaft Fillet Radius: 3.6 mm
- Material: Fits Case Carburized Steel
- Static Load Rating: 335,000 N
- Dynamic Load Rating: 227,000 N
- Operating Temperature Range: -40 to 120 deg C
- Series: J Series / Inch Series Single Row Tapered Roller Bearing
Replaces Part Number(s):
663, NTN663, 663NTN, 663-PVE
Aftermarket Interchange Numbers
Timken 663, SKF K663, BR663, K663, IM663, 531-IM663, IMX663, TM663, TI663, BT663, TB663, BW663, TRB663, HD207, 9A663, F663, G922, HBG7520, HTY663, 1B4040, 35T316
New aftermarket replacement part - not remanufactured, not used.
