8N9889A THROTTLE PLATE Fits Ford TRACTOR 8N

Name: 8N9889A THROTTLE PLATE Fits Ford TRACTOR 8N
SKU: AGER300835-DUP
Price: 17.0 USD
Availability: InStock

8N9889A THROTTLE PLATE Fits Ford TRACTOR 8N

£17.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

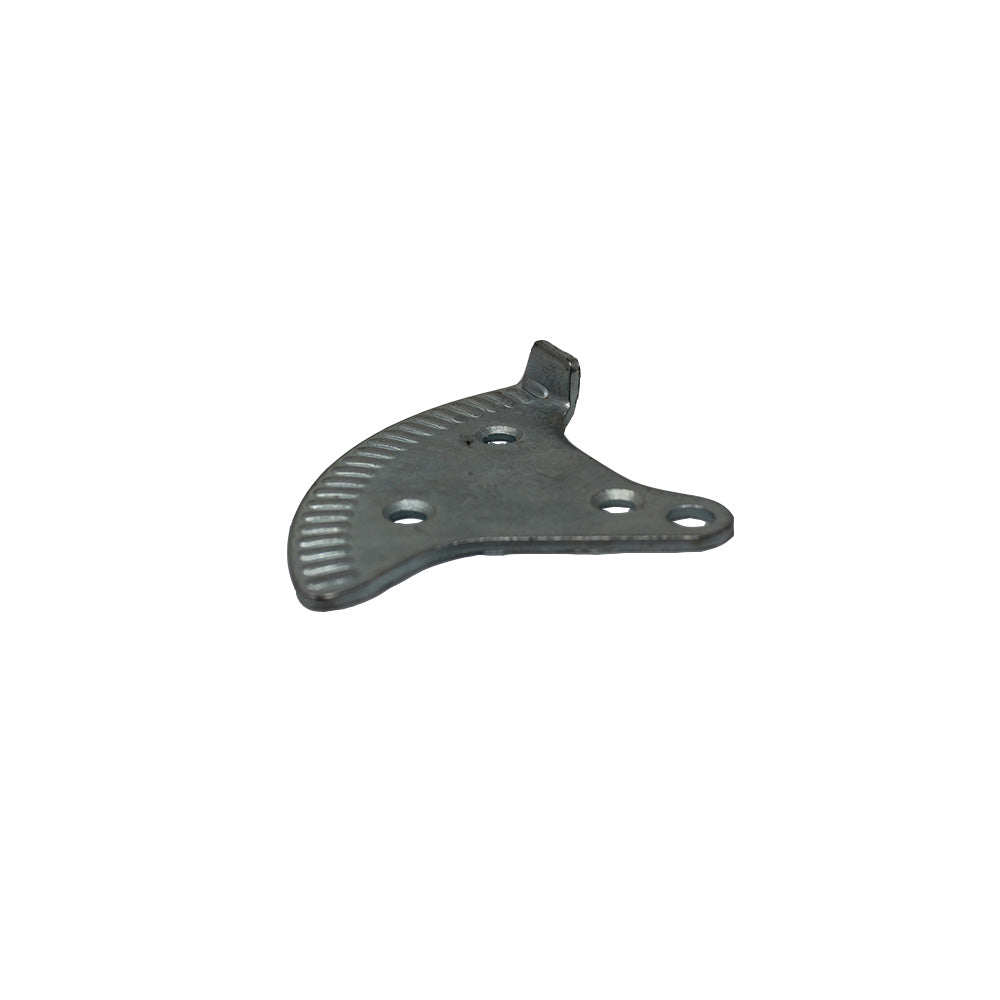

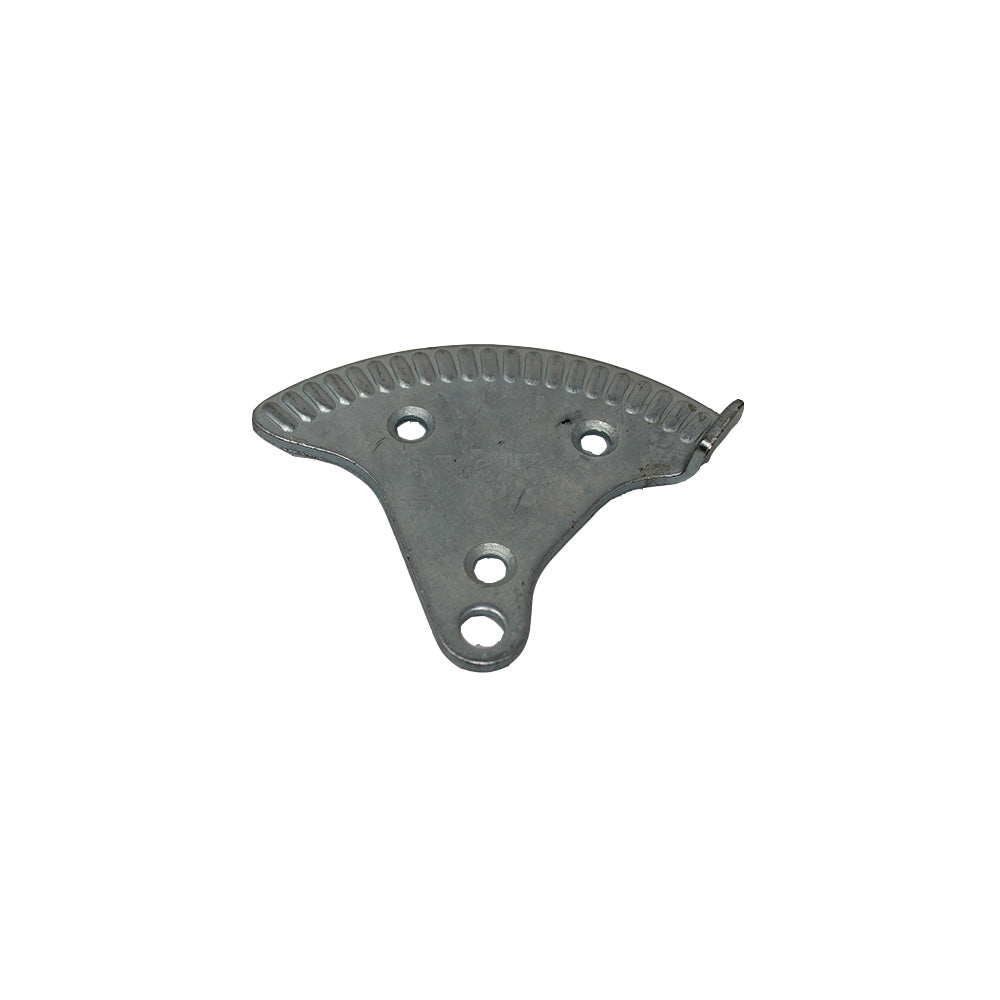

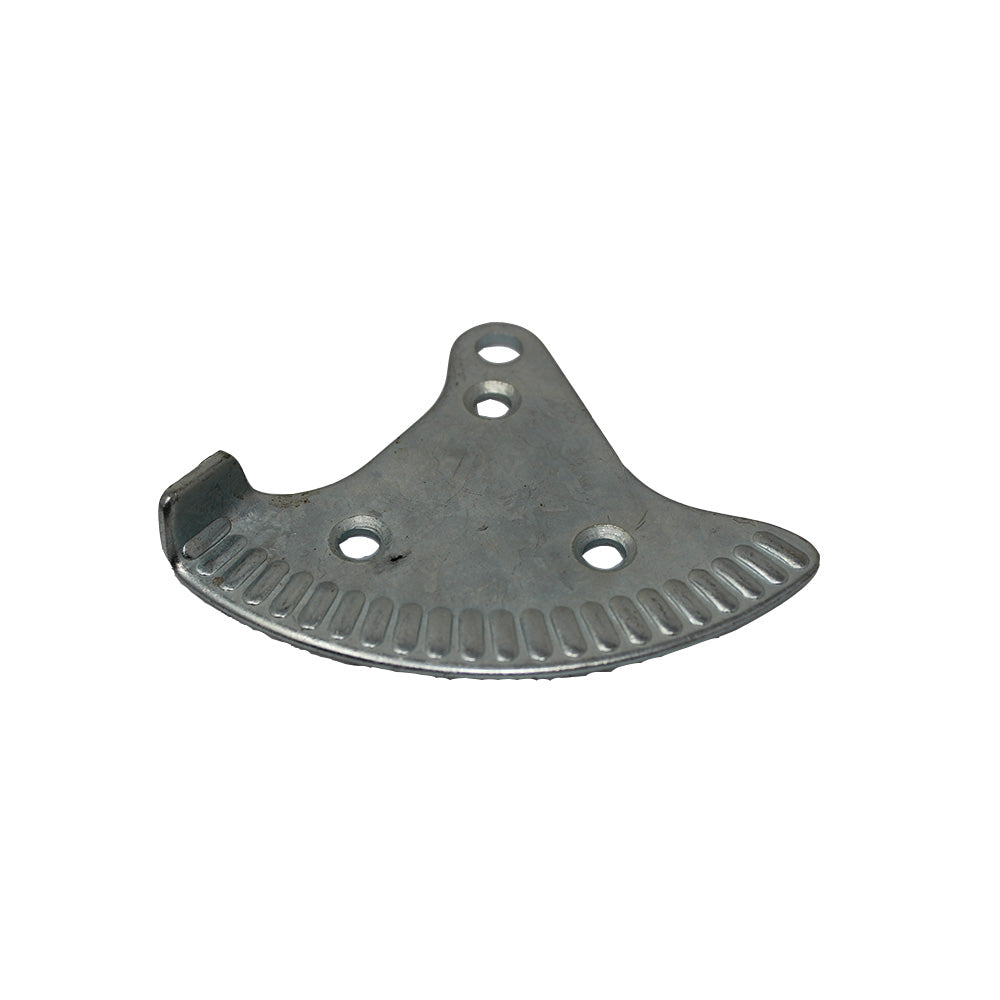

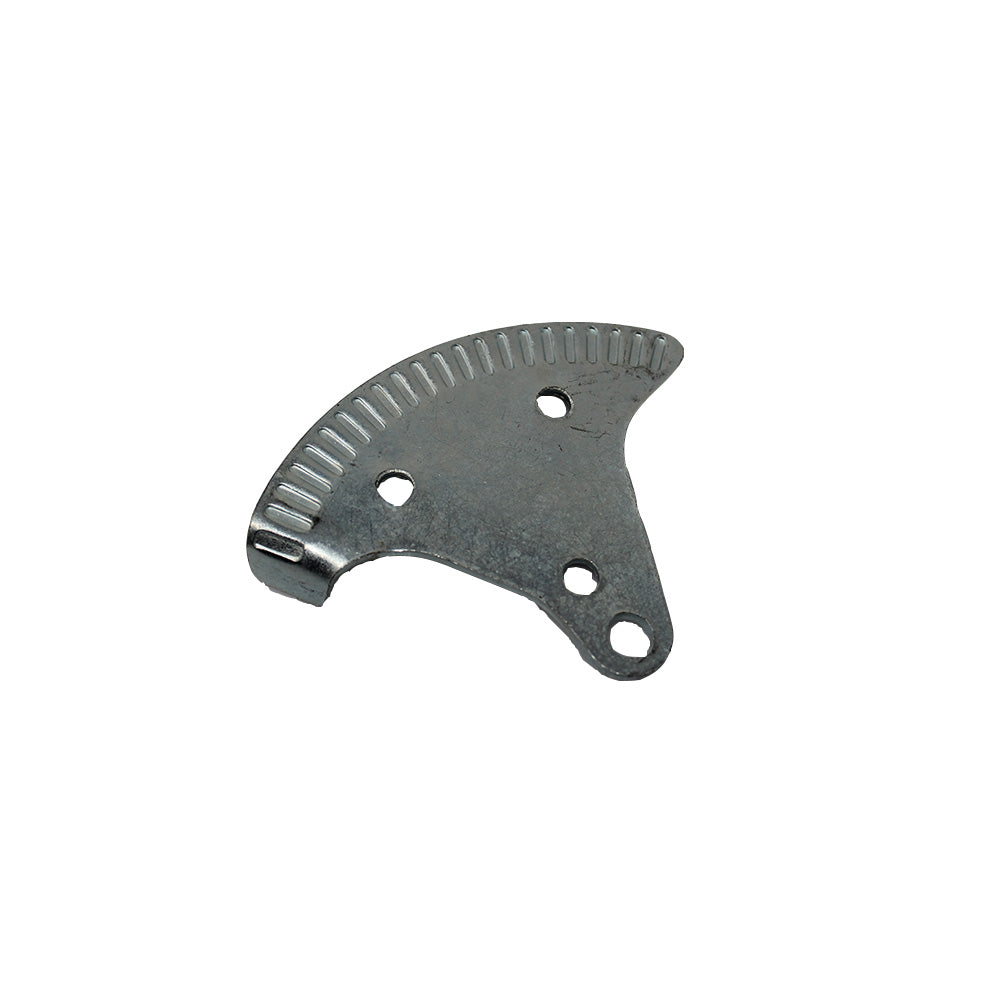

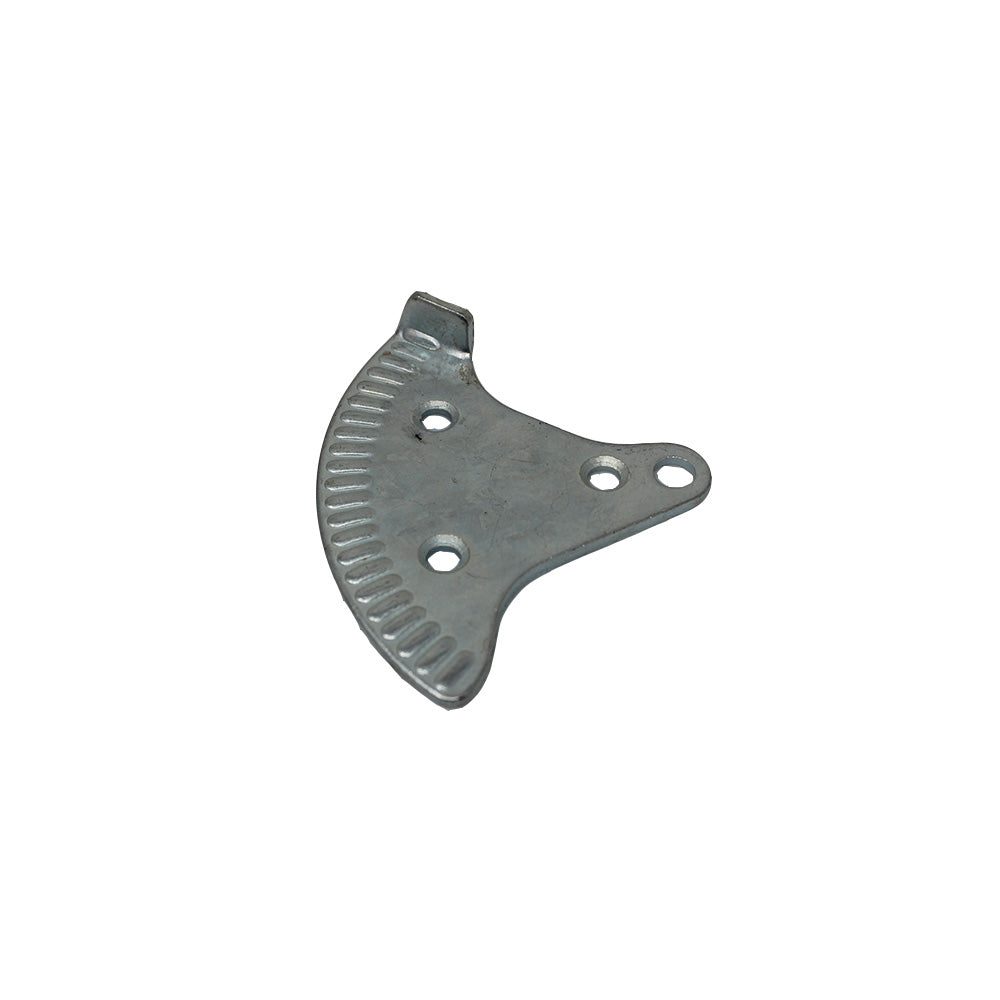

One New Aftermarket Replacement Throttle Control Quadrant Plate for Ford Tractor

This throttle control quadrant plate is part of the throttle control assembly on the Ford 8N tractor, providing the operator with precise engine speed control. Also known as the throttle quadrant plate, it mounts to the tractor dash/instrument panel area and serves as the guide and detent surface for the hand throttle lever.

Specifications

Overall Length: 6.25 in (159 mm)
Overall Width: 1.50 in (38 mm)
Plate Thickness: 0.10 in (2.5 mm)
Mounting Hole Diameter: 0.25 in (6.4 mm)
Mounting Hole Spacing: 5.78 in (147 mm)

Compatible Models

Ford / New Holland: 8N (1947-1952)

Replaces Part Number(s):

8N9889A, 60763, 60763-A, 8N9889A-A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

8N

Additional Information:

Quadrant Throttle Plate Only Overall Length: 6.25 in (159 mm) Overall Width: 1.50 in (38 mm) Plate Thickness: 0.10 in (2.5 mm) Mounting Hole Diameter: 0.25 in (6.4 mm) Mounting Hole Spacing: 5.78 in (147 mm)
