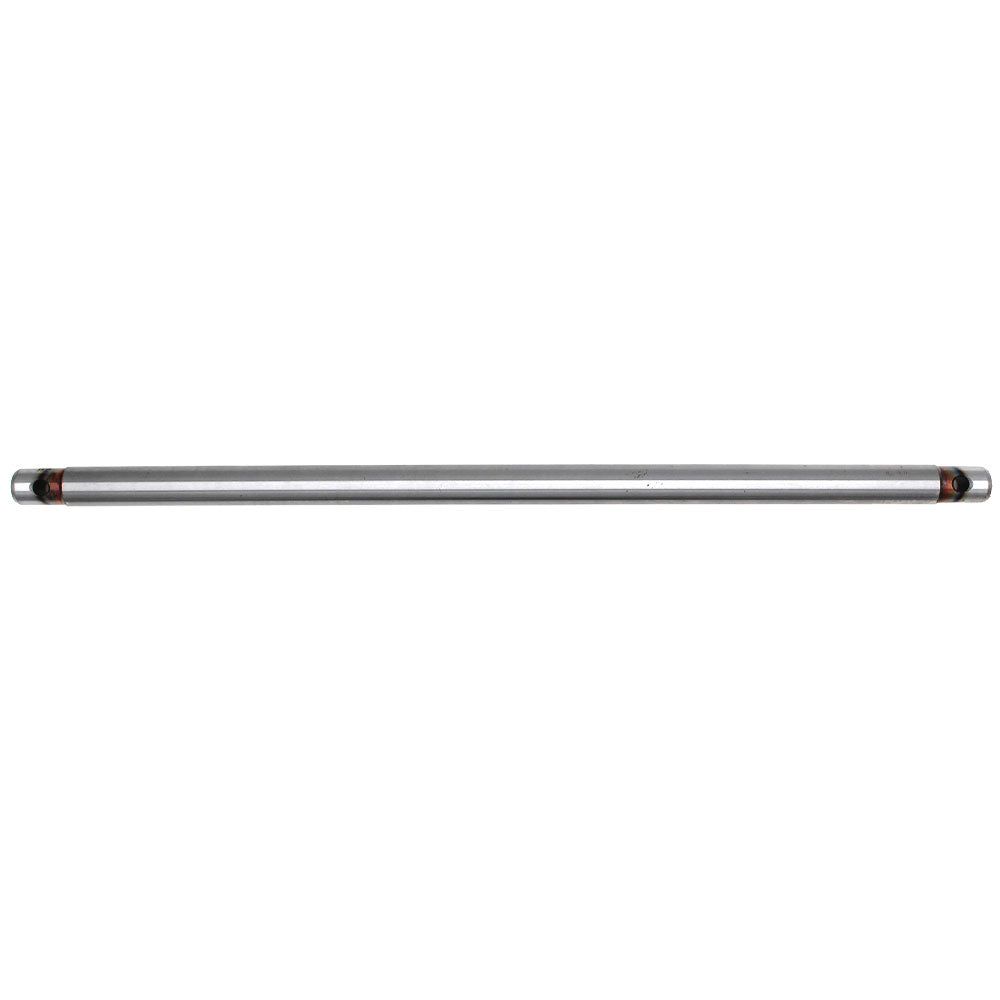

One New Aftermarket Replacement Sensor Shaft (Draft Control) for Case IH / International Harvester JX and VJ Series Tractors
This hydraulic draft sensing shaft (also called a load cross shaft or draft sensing bar) is a component of the rear hydraulic lift draft control system on Case IH (Case/International Harvester) tractors. It signals the hydraulic system to automatically adjust a mounted implement's position when it detects changes in soil resistance, maintaining consistent draft depth during field operations. The shaft runs transversely through the lift housing and works in conjunction with bearings, bushings, and seals in the hydraulic lift assembly.
Specifications
- Length: 23.62 in. (600 mm)
- Outer Diameter: 24.9 mm
Compatible Models
Case IH / International Harvester JX Series: JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95
Case IH / International Harvester JXU Series: JX70U, JX80U, JX90U, JX1070U, JX1080U, JX1090U, JXU 75, JXU 85, JXU 95
Case IH / International Harvester VJ Series: VJ60, VJ70, VJ80
Case IH / International Harvester Farmall Series: Farmall 85U, Farmall 90, Farmall 95U
Replaces Part Number(s):
5116243, 05116243
Aftermarket Interchange Numbers
HYF20-0011, S.62368, S62368, 23/6678-7
New aftermarket replacement part - not remanufactured, not used.
